Canada Ps3 Roofing Sheet 1mm Wall Panel Roll Forming Machine Hydraulic

1mm wall panel roll forming machine

hydraulic wall panel roll forming machine

hydraulic rollformers

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Canada Ps3 Roofing Sheet 1mm Wall Panel Roll Forming Machine Hydraulic

Detail Produk

Nama Produk:

Kanada Panel PS3 Roll Forming Garis Mesin Roll Forming Lembaran Atap

Ketipisan bergulir:

0,3-1mm

Voltase:

380V /50Hz/3pH atau sebagai Kebutuhan Pelanggan

Berat:

6,5 ton

Lebar makan:

914-1250mm

Bahan roller:

45# dengan krom 0,05mm

Dimensi (P*L*T):

6500*1300*1100mm

Kekuatan:

Hidrolik

Menyoroti:

1mm wall panel roll forming machine

hydraulic wall panel roll forming machine

hydraulic rollformers

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

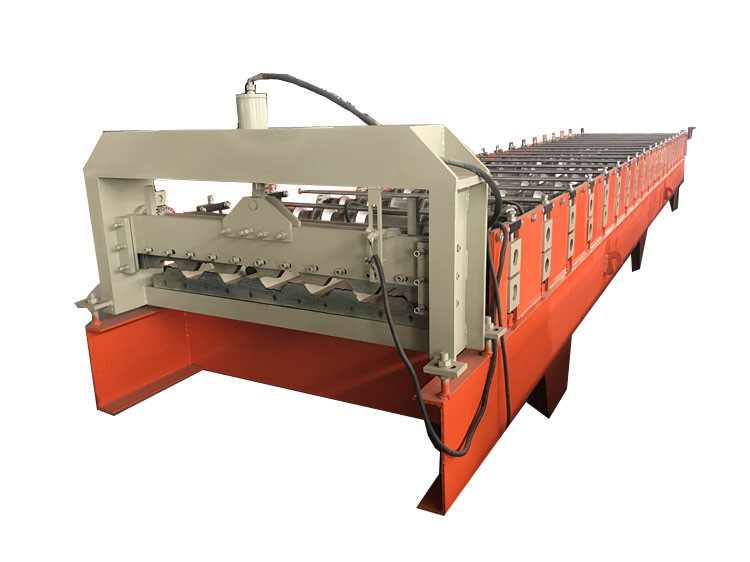

Canada PS3 Panel Roll Forming Lines Roofing Sheet Roll Forming Machine

PS3 Panel Roll Forming Lines are designed for high volume producers in the steel metal building industry,well build to your specific panel design from 20 to 30 gauge. Our lines are built to be flexible ,high speed and robust for tough production environments.

The main width of feeding coil material including: 914mm,1000,1219mm,1220mm and 1250mm. Then the effective width of roof tile is different.

The capacity of 40m/min 0.14mm thickness G550 hardness roof panel roll forming machine metal spandek machine can be 8-15m/min, 20m/mim, 8-40m/min. There are two automatic roof panel roll forming machine systems.

Hydraulic motor roof panel roll forming machine. Power is from hydraulic motor. Hydraulic oil supply the power to roof panel roll forming machine

Specification

Article No.	Item Name	Specification
1	Width of feeding material	1250 mm coil sheet
2	Thickness of feeding material	0.3-0.8 mm coil sheet
3	Roller station	9-15 stations
4	Shaft Diameter	55-95 mm
5	Productivity	8-12 m/min
6	Rollers' material	45# steel forge
7	Shaft material	45# steel
8	Weight	4.5 ton
9	length	7.5 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	5 tons
13	Motor	7.5 kw
14	Driving way	Chain transmission
15	Chain size	1.5 inch
16	Cutting system	Hydraulic cutter

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
