Ibr Trapezoidal Metal Roofing Sheet Forming Machine Tile Making PLC

ibr metal roofing sheet forming machine

plc metal roofing sheet forming machine

trapezoidal roof tile roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Ibr Trapezoidal Metal Roofing Sheet Forming Machine Tile Making PLC

Detail Produk

Nama Produk:

Mesin Rolling Lembaran Atap Trapesium IBR Afrika Selatan Mesin Pembuat Ubin

Kapasitas Produksi:

15 m/mnt

Voltase:

380V /50Hz/3pH atau sebagai Kebutuhan Pelanggan

Berat:

6,5 ton

Nilai jual utama:

Produktivitas tinggi

Bahan poros:

45# Diameter Luar Baja: 75mm

Bahan pisau pemotong:

CR12

Sistem Pengendalian:

PLC

Menyoroti:

ibr metal roofing sheet forming machine

plc metal roofing sheet forming machine

trapezoidal roof tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

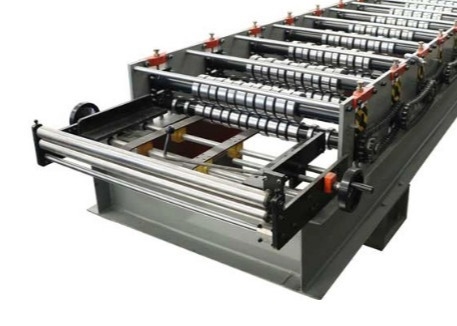

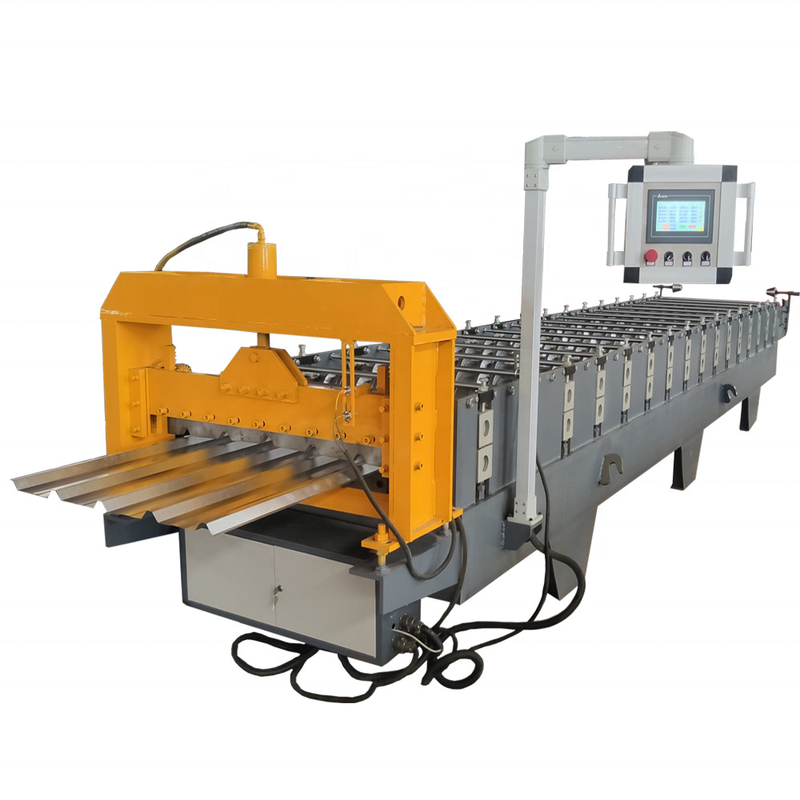

South Africa IBR Trapezoidal Roof Sheet Rolling Machine Tile Making Machine

trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1200mm /1220mm / 1250mm. After rolling product width is 840/1000mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm.

Hydraulic motor roof panel roll forming machine. Power is from hydraulic motor. Hydraulic oil supply the power to roof panel roll forming machine

Specification

Article No.	Item Name	Specification
1	Width of feeding material	1000 mm coil sheet or as request
2	Thickness of feeding material	0.3-0.8 mm coil sheet
3	Roller station	13 stations
4	Shaft Diameter	70 mm
5	Productivity	3-15 m/min
6	Rollers' material	45# steel with 0.05mm chrome
7	Shaft material	45# steel with 0.05mm chrome
8	Weight	6.5 ton
9	Voltage	380V 50Hz 3phases
10	Control	PLC
11	Motor	5.5 kw
12	Driving way	Chain transmission
13	Chain size	1 inch
14	Cutting system	Hydraulic cutter

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
