Name: Horizontal Wave Sheet PPGI Tile Roll Forming Machine For Roof
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Trapesium 760
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Horizontal Wave Sheet PPGI Tile Roll Forming Machine For Roof

ppgi sheet tile roll forming machine

380v tile roll forming machine

ppgi roof tile forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Trapesium 760

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Lembar Atap Gelombang Horisontal Untuk Afrika Selatan

Layanan purna jual disediakan:

8-12 m/mnt

Bahan mentah:

Lembaran PPGI/Galvanis

Voltase:

380V 50Hz 3Phase

Berat:

10 ton

Lebar makan:

1250mm

Ketipisan bergulir:

0.3mm-0.8mm

Motor:

7.5kw

Menyoroti:

ppgi sheet tile roll forming machine

380v tile roll forming machine

ppgi roof tile forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

25 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

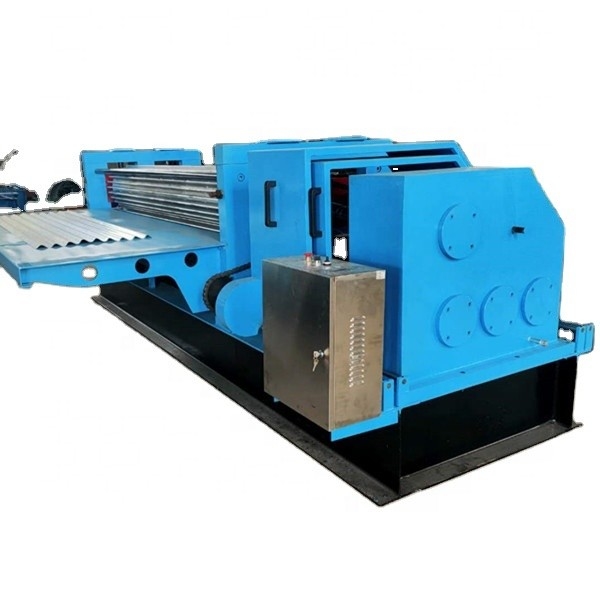

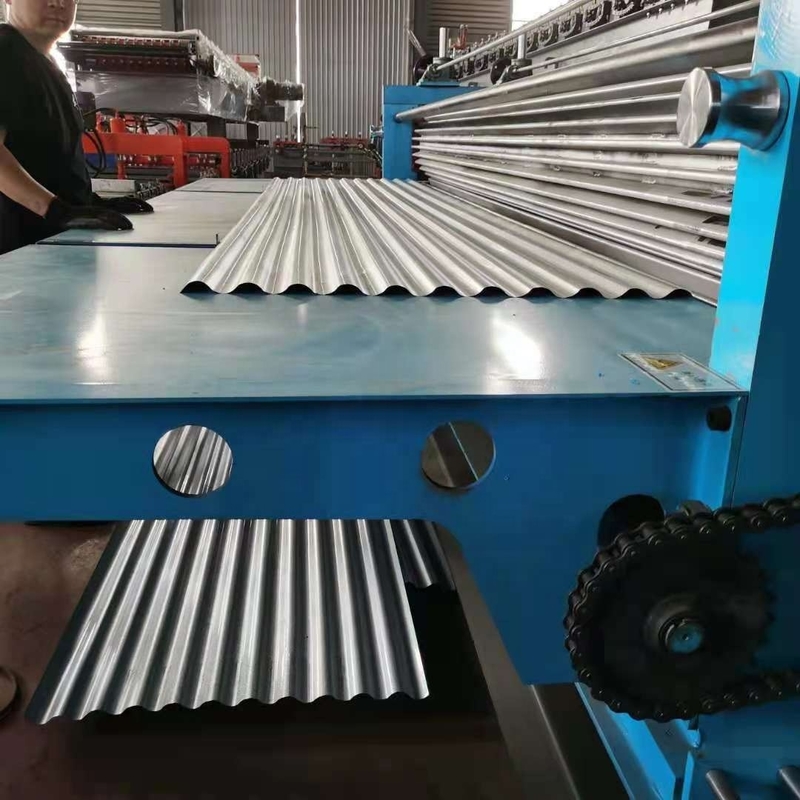

Horizontal Wave Roof Sheet Machine For South Africa

Barrel Corrugated Roll Forming Machine is for thin material from 0.12-0.4mm thinkness. It is very popular in Africa, such as Nigeria, Kenya, South Africa and Senegaln etc.

Note:

The effective width is depend on the raw material width.

The Panel length is depend on the machine Width.

Machine width: 8ft/10ft/12ft (PLS choose according to your needs)

Specification

NO	Name		Specification	Mark
1.	Raw material	Type	Galvanize Steel
		Thickness	0.15-0.3mm
2.	Forming machine	Roller station	One feeding station+One Forming Station
		Material of shaft	Mn-Fe-C
		Drive way	Motor
		Frame	Welded-Steel Plate
3.	Power	Motor	7.5KW
		Voltage	380V 50HZ
4.	Power	Main motor	4KW
		voltage	220V 50HZ
5.	Brand	Motor Brand	SIEMEN
6.	Speed	6-14m/min
7.	Labor	Four workers
8.	Delivery Time	30 working days

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
