Metal Tile Plc Control Roof Panel Forming Machine Low Noise

plc control roof panel forming machine

low noise roof panel forming machine

plc control metal roof forming machine

Tempat asal:

CINA

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembentuk Genteng Logam Mesin Panel Atap Kebisingan Rendah

Ketebalan:

0.3-0.8mm

Sistem Pengendalian:

Kontrol PLC

Rol:

45# Baja sesuai Kebutuhan Pelanggan

Berat mesin:

Otomatis

Motor:

5.5kw

Bahan roller:

45# baja

pisau pemotong:

Cr12 Bergerak

Menyoroti:

plc control roof panel forming machine

low noise roof panel forming machine

plc control metal roof forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

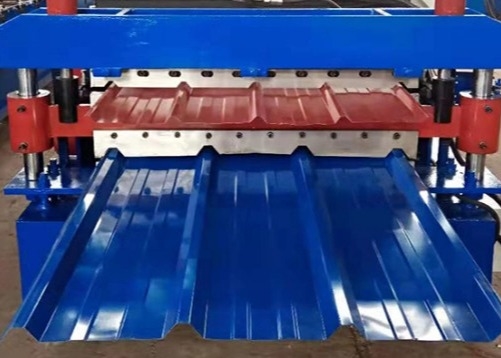

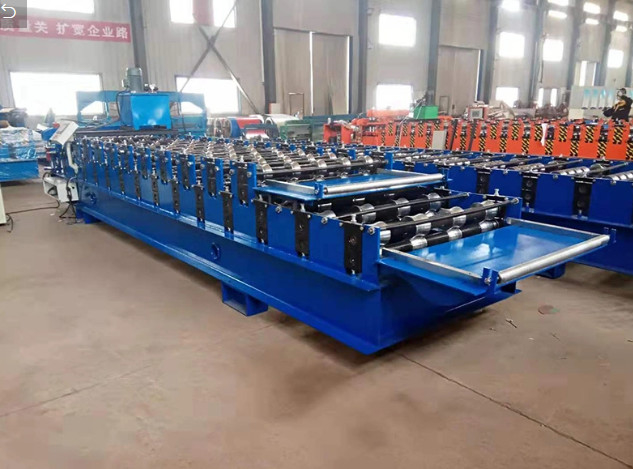

Metal Roof Tile Forming Machine Low Noise Roof Panel Machine

Metal Roof Tile Forming Machine Low Noise Roof Panel Machine,The machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can't produce the 2 profiles at the same time.

Specification

Coil required	Material	PPGI GI AL
	Width	914/925/1000/1200/1220/1250mm
	Thickness	0.3-0.7mm , as custom order
Power required	Power	380V 50Hz 3 Phase , as custom order
	Main Motor	5.5KW Siemens Brand
	Cutting Motor	4KW Siemens
Machine	Support Frame	400 H Steel 10mm
	Forming Station	14 rows as profile
	Structure	18-20mm
	Shaft	75mm
	Roller	45# Steel with heat treatment
	Chains	1.2 inch
	Bearings	Standard as custom order
	Speed	15-30m/min
	Electric Components	Delta and Siemens
	Size	7.51.31.6M
	Weight	4T

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
