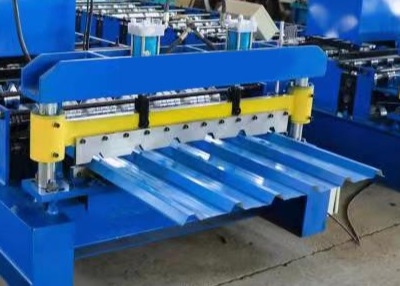

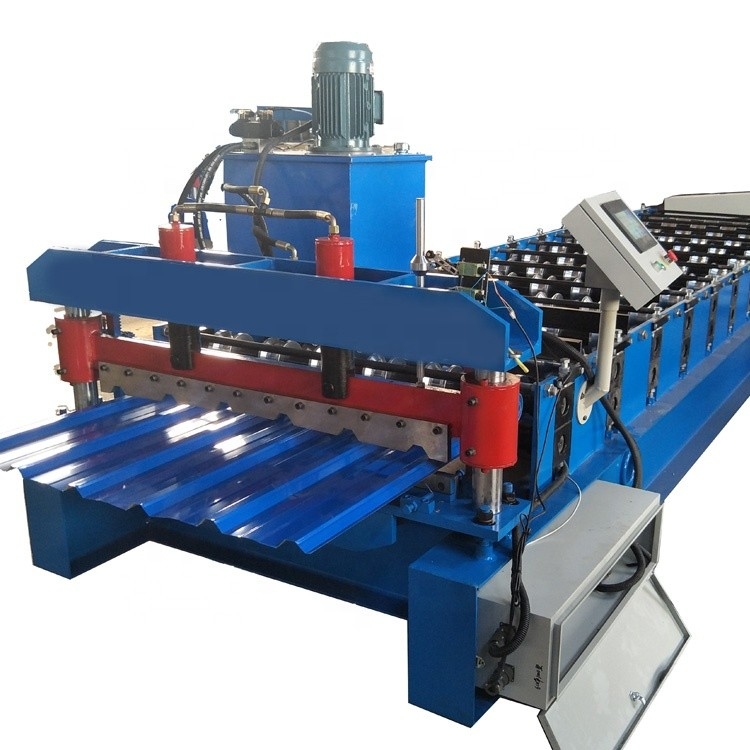

Aluminium 6 Ribs 0.5mm Corrugated Roof Tile Making Machine High Capacity

aluminium corrugated roof tile making machine

0.5mm corrugated roof tile making machine

6 ribs tile roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembuat Lembaran Atap Bergelombang 6 Tulang Rusuk Kapasitas Tinggi

Metode:

Tekanan hidrolik

Bahan Baku Bata:

Baja warna

Toleransi:

0.5mm

Kecepatan:

Baja 45 # bermutu tinggi

Bahan roller:

380V 3 Fase 50HZ

Menyoroti:

aluminium corrugated roof tile making machine

0.5mm corrugated roof tile making machine

6 ribs tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Corrugated Roofing Sheets Making Machine 6 Ribs High Capacity

Corrugated Roofing Sheets Making Machine 6 Ribs High Capacity:

Man-made decoiler---Color steel coil feeding & guiding device---Main forming machine---Computer Control system---Hydraulic pump station---Cutting head---Output table

Application:

Color steel sheet which are produced by our roll forming machine are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. With advantages of long life time, stable performance and high efficiency, it is warmly welcomed by our customers.

No.	Corrugated Roofing Sheets Making Machine 6 Ribs High Capacity
1	Suitable material	color steel sheet, galvanized steel sheet, aluminium sheet
2	Material width	1250mm or as your required
3	Material thickness	0.3-0.8 or as your required
4	Working speed	8-12m/min, can be 20-25m/min
5	Main motor power	5.5kw with cycloidal with reducer
6	Hydraulic pump power	4kw
7	Electrical control system	PLC control system with inverter
8	Shaft diameter	75mm
9	Roller station	15 rows, depend on your panel profile drawing
10	Roller	high grade 45# steel, hard chrome plating
11	Working time	24 hours
12	workers	1-2 only
13	Cutting head material	Cr 12 mould steel with quenched treatment
14	Voltage	380V 3Phase 50Hz or as your required
15	Weight	3.5T
16	The machine size	7000mm1500mm1500mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
