IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity

building roof tile roll forming machine

ibr roof tile roll forming machine

7 ribs tile roll forming machine

Tempat asal:

CINA

Nama merek:

cangzhou fms

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

900 Mesin Roll Forming Atap Bentang Panjang 7 Tulang Rusuk Kapasitas Tinggi

Ketebalan koil:

0.3-0.8mm

Dimensi (P*L*T):

7500X1500X1910mm

Berat:

6.5T

Kecepatan:

12 m/mnt

Voltase:

380V 3 Fase 50HZ

Menyoroti:

building roof tile roll forming machine

ibr roof tile roll forming machine

7 ribs tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

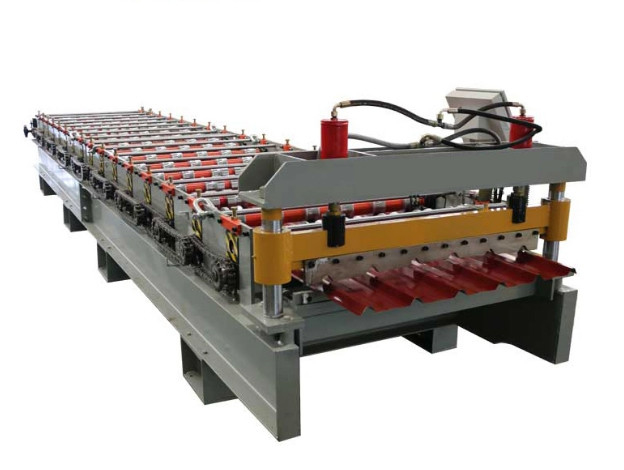

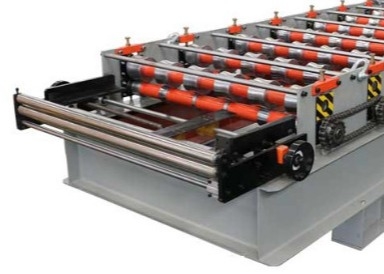

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs

High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs.It has become a household name in the South African building industry. The IBR's deep, broad flute design offers first-rate drainage abilities with ideal weight versus load/span characteristics. IBR can be factory Cranked, Curved and Bullnosed to various radii depending on customer's requirements.
Because of price pressure of the material used to manufacture, this product is getting thinner and harder requiring these IBR Rollforming machines to be specially designed to produce and ensure a good quality finished product. It can also be noted that the machines are often required to run 915mm material as well or even 1225mm wide coil.

No.	High Capacity 900 Long Span Roof Roll Forming Machine 7 Ribs
1	Suitable material	Color steel sheet ,galvanized steel sheet, aluminium sheet
2	Width of material	1000mm or as need
3	Thickness of material	0.3-0.8mm or as your needs
4	Working speed	10-20m/min
5	Electrical control system	PLC control system
6	Shaft diameter	80mm/85mm
7	Dimension	7500x1500x1910mm
8	Weight	About 7 T
9	Voltage	380V 3phase 50HZ or as the customer's requirements
10	Material of roller	High grade 45# forged steel plated with hard chrome plating
11	Material of cutting	Cr12 mould steel with quenched treatment
12	Working time	Can be 24 hours
13	Workers	1-2 only

IBR 900 building Roof Tile Roll Forming Machine Long Span 7 Ribs High Capacity 0
