Customized Gearbox Roof Tile Roll Former Auto Wall Panel Ppgi Material

gearbox roof tile roll former

ppgi material roof tile roll former

ppgi steel tile forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Bahan PPGI Panel Dinding Otomatis yang Disesuaikan

Metode transmisi:

Tekanan hidrolik

Ketebalan koil:

0,3-0,8/0,8-1,5mm

Spesifikasi:

6500*1500*1400

Kontrol:

PLC

Jenis drive:

dengan Rantai atau Gear atau Gearbox

Voltase:

380V 3Phase 50Hz sebagai Permintaan Anda

Menyoroti:

gearbox roof tile roll former

ppgi material roof tile roll former

ppgi steel tile forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

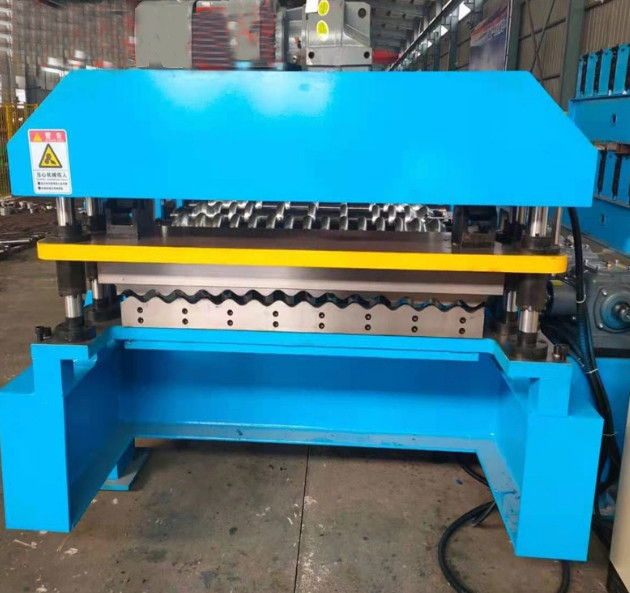

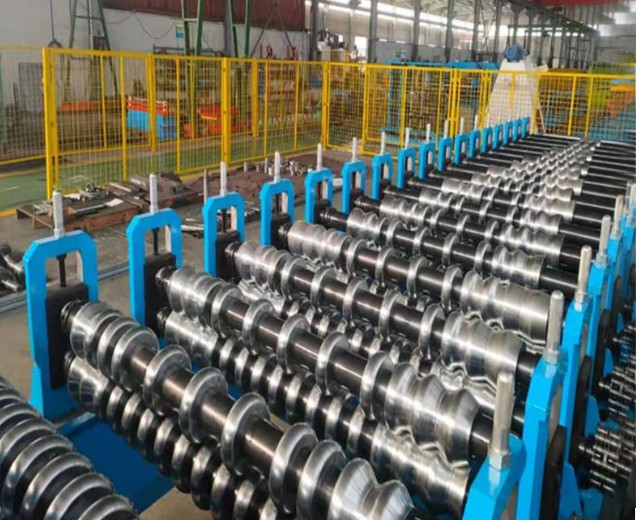

Customized Auto Wall Panel PPGI Material Roll Forming Machine

Automatic Corrugated Wave Panel Making Machinery Metal Wall Plate Production Line Steel Roof Tile Roofing Sheet Roll Forming Machine.High Strength Roof Roll Forming Machine Multi Cor Metal Roof Making Machine.Corrugated roof tile sheet roll forming machine can produce corrugated tile or panel which also called wave panel sheets,it is widely used in constructions and buildings,it can be used to build roof and wall.This kind of material can be used in many places such as gyms, warehouses, factories, etc.

Specification

Weight of main part	10 tons (as actual situation )
Drive mode	chain/ gear / gearbox mode
Material of rollers	45#steel / ball bearing steel
Number of rollers	25 rollers or more(as actual situation)
Hydraulic motor power	3 4 5 kw(as actual situation)
Forming way	Integral /split forming
Motor power	9.5kw
PLC control	Intellengent/international brand/touch screen
Colour of machine	any colour(as customer's requirment)
Speed of production	0-12m/min(can be customized)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
