Roofing Panel Forming 0.8mm Standing Seam Rolling Machine With Plc Control

0.8mm standing seam rolling machine

plc control standing seam rolling machine

plc control standing seam roller machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Panel Atap Jahitan Berdiri Dengan Kontrol PLC

Lebar Bahan Baku:

1200mm

Ketebalan Bahan:

0.3-0.8mm

Bahan roller:

45 # baja Berlapis Krom

Sistem Pengendalian:

PLC

Garansi komponen inti:

1 tahun

Voltase:

380V 3Phase 50Hz sebagai Permintaan Anda

Menyoroti:

0.8mm standing seam rolling machine

plc control standing seam rolling machine

plc control standing seam roller machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

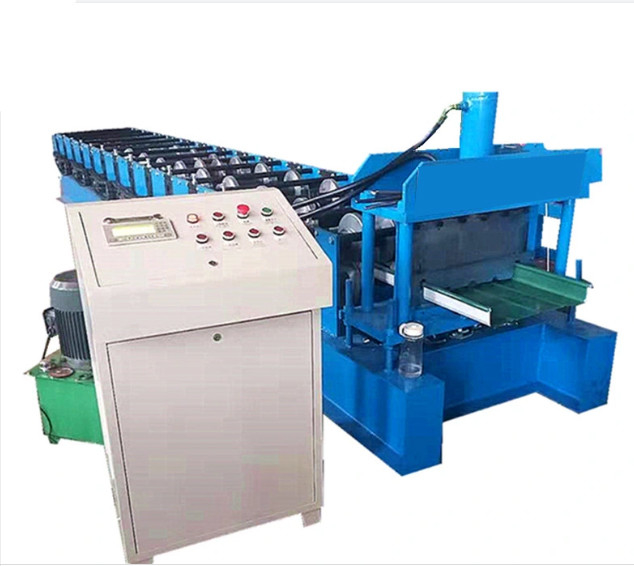

Standing Seam Roofing Panel Roll Forming Machine With PLC Control

Automatic standing seam roof forming machine is the special equipment for continuous rolling and cold forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

Specification

Main parameters of Metal clip lock standing seam roof machine
Material Width	1200mm
Thickness of Coil	0.3-0.8mm
Application	roofing system
Estimated Dimension	11500mmX1650mmX1800mm
Total Weight	5.8 Tons
Main Power	7.5 KW
Hydraulic Pump	4 KW
Decoiler	Manual or Hydraulic Decoiler
Forming Speed	0-15m/min
Forming Station	26Rows
Bracket	Welded with 36 # I-steel
Material of Shaft	High Grade forged 45# Steel with 1st Rough Finished and then 2th Refined Finished
Diameter of the Roll	70mm
Material of Roller	High Quality Cr12 Quenched HRC58-62 °
Processing Technology	Rough Processing ---Refined Processing--Hard Chromium Plating.
Material of Rack	Complete Welded Structure of A3 Steel Plate 18 mm Thickness
Transmission	Chain or Gear Box or universal joint
Material of cutting blade	Cr12 with Quenched Treatment 60-62 °
Cutting system	Hydraulic Stop or Tracking Cutting
Voltage	380V/50HZ/3 Phase or as Customer Require

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
