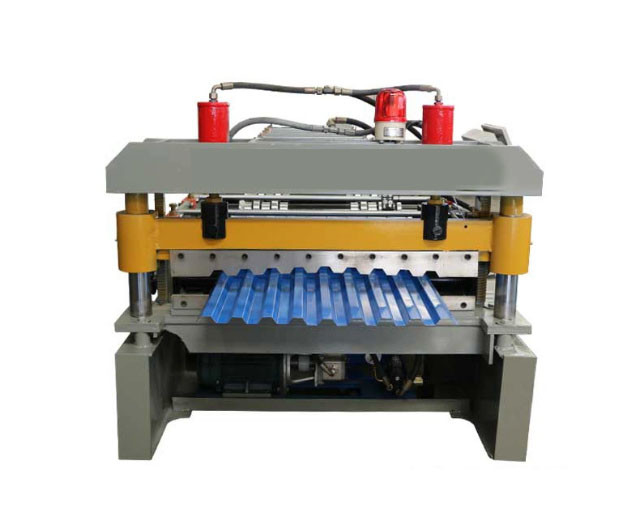

Trapezoidal PPGL Wall Panel Roll Forming Machine Cold 0.8mm

ppgl wall panel roll forming machine

0.8mm wall panel roll forming machine

ppgl trapezoidal roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Trapezoidal PPGL Wall Panel Roll Forming Machine Cold 0.8mm

Detail Produk

Nama Produk:

Mesin Cold Roll Forming Panel Dinding Trapesium 3-4m / Min Efisiensi Tinggi

Bahan yang cocok:

PPGI/PPGL/Gi/Gl

Ketebalan yang cocok:

0.3-0.8mm

Kecepatan:

15-20m/mnt

Layar Sentuh:

Sentuh Menang

Garansi komponen inti:

1 tahun

Voltase:

380V /50Hz/3pH atau sebagai Kebutuhan Pelanggan

Sistem Pengendalian:

PLC (merek impor)

Jenis pemotongan:

Pemotongan hidrolik

Menyoroti:

ppgl wall panel roll forming machine

0.8mm wall panel roll forming machine

ppgl trapezoidal roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

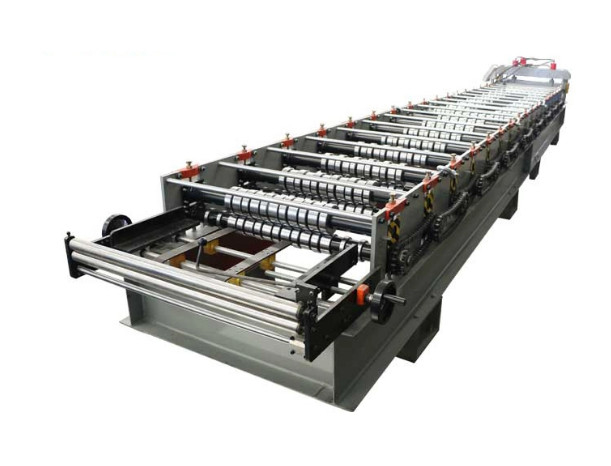

Trapezoidal Wall Panel Cold Roll Forming Machine 3-4m / Min High Efficiency

Trapezoidal Wall Panel Cold Roll Forming Machine:
Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism
-----Automatic Shearing Mechanism ----- Products Receiving Tables

Specification

General Information	Coil Material	PPGI/PPGL/GI/GL
	Coil Thickness	0.3~0.8MM
	Coil Width	1000MM
	Speed	15~20M/MIN
	Voltage	As Customer's Request
Roll Forming Unit	Roller Station	18
	Driving Motor	5.5KW
	Shaft Diameter	70mm Solid
	Shaft Material	45# Hard Steel
	Roller Material	45# Hard Steel
	Under Frame	350H-Beam
	Sidewall Thickness	16MM
	Transmission	1 Inch Chain
	Feeding Device	1 Set With Pre-cutter
Cutting Unit	Cutting Type	Hydraulic Stop TO Cut
	Hydraulic Pump Power	3KW
	Cutting Die Material	Cr12Mov
	Hydraulic Oil	46# Abrade Oil
Control Unit	Control Method	PLC
	Length Control	Encoder
	Operation	Touch Screen
	Language	Chinese & English
Auxilliary Device	---	5T Manual Decoiler
Auxilliary Device	---	Exit Rack

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
