3 Phase Ibr Steel Roof Sheet Making Machine Long Span

ibr steel roof sheet making machine

3phase steel roof sheet making machine

long span metal roofing roll former

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

3 Phase Ibr Steel Roof Sheet Making Machine Long Span

Detail Produk

Nama Produk:

Ibr Metal Wall Panel Atap Genteng Baja Mesin Roll Forming Rentang Panjang

Cocok untuk diolah:

Pelat baja warna

Ketebalan koil:

0.3-0.8mm

Sistem pemotongan:

350H

Berat:

6.5T

Voltase:

380V 3 Fase 50HZ

Bahan pemotongan:

Baja cetakan CR12 dengan perawatan yang dipadamkan

Hidrolik:

40#

Menyoroti:

ibr steel roof sheet making machine

3phase steel roof sheet making machine

long span metal roofing roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

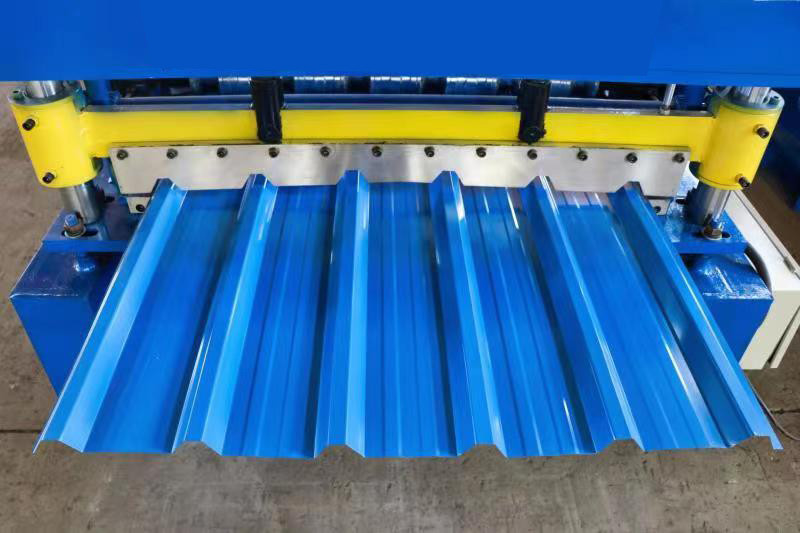

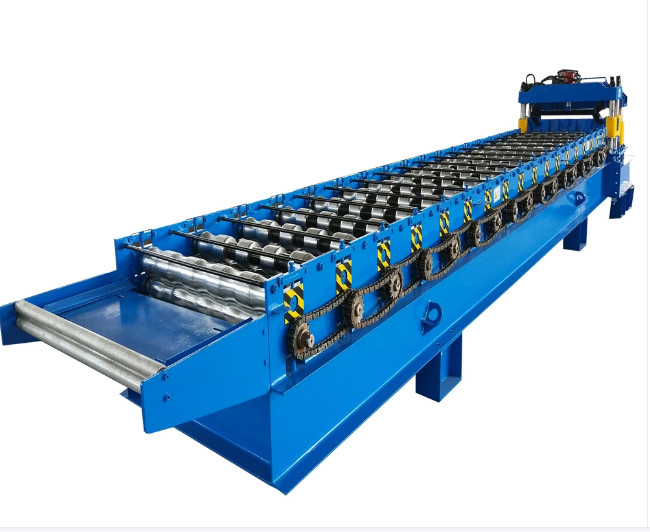

Ibr Metal Wall Panel Roof Tile Roof Steel Roll Forming Machine Long Span

IBR is widely used in the roofing industry and a common product used in roofing applications from industrial,commercial to residential applications.
It has become a household name in the South African building industry. The IBR's deep, broad flute design offers first-rate drainage abilities with ideal weight versus load/span characteristics. IBR can be factory Cranked, Curved and Bullnosed to various radii depending on customer's requirements.

Equipment Detailed Parameters:

No.	Ibr Metal Wall Panel Roof Tile Roof Steel Roll Forming Machine Long Span
1	Suitable material	Color steel sheet ,galvanized steel sheet, aluminium sheet
2	Width of material	1000mm or as customer's requirements
3	Thickness of material	0.3-0.8mm or as your needs
4	Working speed	0-15m/min
5	Electrical control system	PLC control system
6	Shaft diameter	80mm/85mm/90mm
7	Dimension	7500x1500x1920mm
8	Voltage	380V 3phase 50Hz or as the customer's requirements
9	Material of roller	High grade 45# forged steel plated with hard chrome plating
10	Material of cutting	Cr12 mould steel with quenched treatment
11	Working time	Can be 24 hours

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
