380v Container Wall Panel Roll Forming Machine Hydraulic Transmission

380v wall panel roll forming machine

container wall panel roll forming machine

hydraulic transmission wall panel production line

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Lini Produksi Mesin Roll Forming Panel Dinding Kontainer

Metode transmisi:

Tekanan hidrolik

Bahan roller:

45 # baja tempa

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Layar:

Layar sentuh warna

Garansi komponen inti:

1 tahun

Voltase:

380V /50Hz/3pH atau sebagai Kebutuhan Pelanggan

Sistem Pengendalian:

PLC (merek impor)

Jenis pemotongan:

Pemotongan hidrolik

Menyoroti:

380v wall panel roll forming machine

container wall panel roll forming machine

hydraulic transmission wall panel production line

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

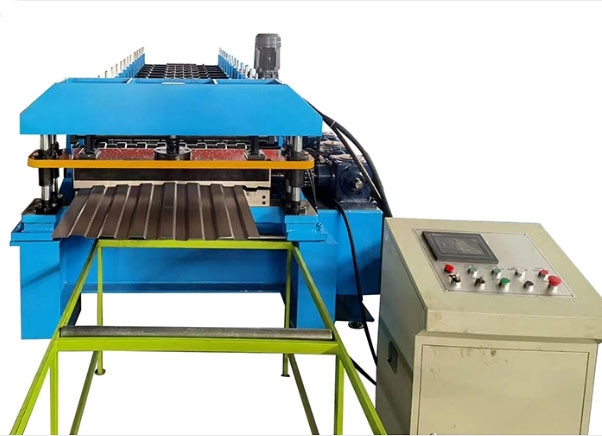

Container Wall Panel Roll Forming Machine Production Line

Main workflow of Container Wall Panel Making Machine:

Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism
-----Automatic Shearing Mechanism ----- Products Receiving Tables

Specification

Factory Steel Side And Front End Container Wall Panel Roll Forming Machine
Material thickness	0.3-0.8mm
Diameter of shaft(solid shaft)	70mm
Material of shaft (solid shaft)	(high grade) 45# Steel, quenching and tempering treatment

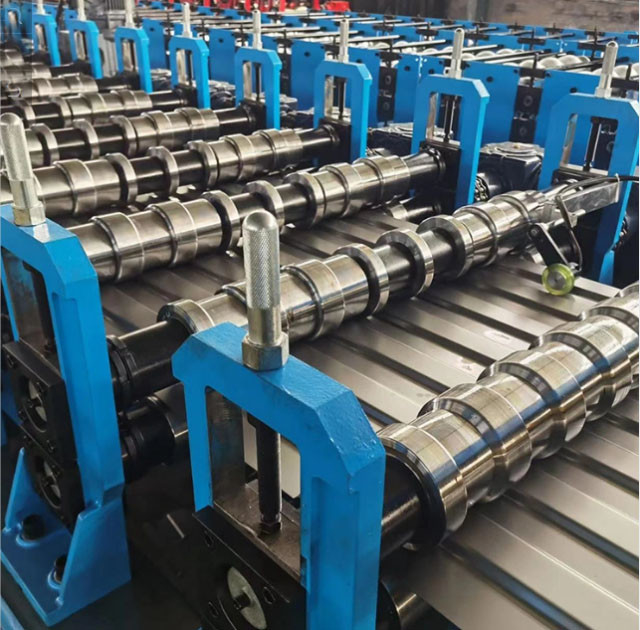

Material of roller	45# steel polished and coated with chrome HRC55-60°
Reducer	8# cycloid reducer (high grade)
Cutting	hydraulic cutting after roll forming
Control system	PLC Frequency Control System with touch screen

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

380v Container Wall Panel Roll Forming Machine Hydraulic Transmission 0
