Ppgi Ppgl Standing Seam Roll Forming Machine Metal Customized

ppgi standing seam roll forming machine

customized standing seam roll forming machine

standing seam custom roll former

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Panel Dinding Logam Jahitan Berdiri Untuk Disesuaikan

Penggunaan:

Atap

Kecepatan produksi:

12-18m/menit

Spesifikasi:

7500mm*1300mm*1500mm(L*L*T)

pisau pemotong:

CR12MOV

Garansi komponen inti:

1 tahun

Voltase:

380V 3Phase 50Hz sebagai Permintaan Anda

Menyoroti:

ppgi standing seam roll forming machine

customized standing seam roll forming machine

standing seam custom roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

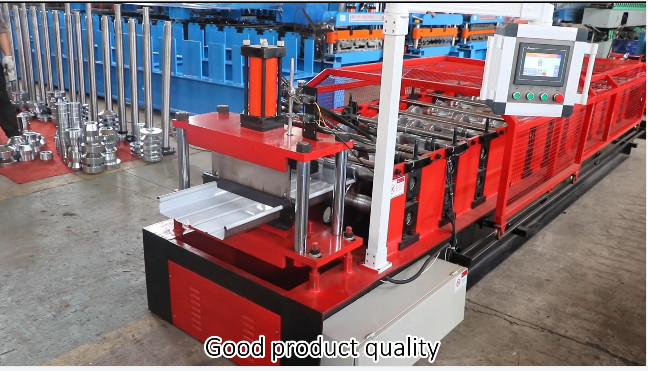

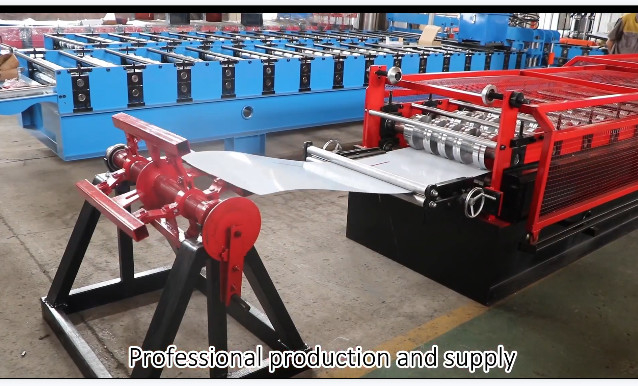

Standing Seam Metal Wall Panel Roll Forming Machine For Customized

Standing Seam Metal Steel Roofing Wall Panel Roll Forming Machine is the most popular type of roll forming machines, mainly suitable for PPGI, GI and other harder coils. It makes different shape of color steel roof sheet, which is used in the construction of various industrial plants, buildings, factory, villages, warehouses, supermarkets, hotels, exhibition, shopping malls, shutter doors and ect. The finished sheet usually worked for roof and wall panel. It has beautiful design, and widely used in all over the world.
We adopt export standard technical solution to make the machine strong and stable enough. Usually it can run with the normal speed to 15m/min, high speed to 25m/min, max speed to 30m/min. PLC with touch screen operation make the machine simple and easy for operation.

Specification

Name	Standing Seam Metal Steel Roofing Wall Panel Roll Forming Machine
Raw Material	Material	Aluminium PPGI PPGL GI GL
	Width	474/575/675mm
	Thickness	1.0mm, customized
Power Required	Power	380V 3Phase 50Hz or 415V, customized
	Main Motor	7.5KW,
	Cutting Motor	4.0KW
Roll Forming Machine	Support Frame	350H steel
	Forming Station	13 rows, exactly according to profile drawing
	Structure	18mm
	Shaft	45# high grade steel, 70mm, solid, with keyway
	Roller	45# high grade steel with heat treatment, hard chrome plated
	Chain	1.0inch
	Bearing	Standard
	Speed	12-18m/min
	Electric Components	Delta / Siemens / Mitsubishi
	Cutting Blade	Cr12Mov, quenched 58°-62°
	Operation	Touch Screen
	Dimension	7.51.31.5M
	Weight	4.5T

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
