Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

ppgl wall panel roll forming machine

3phases wall panel roll forming machine

ppgl trapezoidal roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Panel Baja Trapesium Panel Dinding Atap Roll Forming

Bahan:

Gi,Gl, PPGL, PPGI

Rol:

berlapis krom

Spesifikasi:

9,5*1,45*1,5

Berat:

4500 kg

Garansi komponen inti:

1 tahun

Voltase:

380V 50Hz 3fase, 380V 50Hz 3fase

Setelah penjualan:

Menyediakan Pekerjaan Commissioning dan Instalasi

Menyoroti:

ppgl wall panel roll forming machine

3phases wall panel roll forming machine

ppgl trapezoidal roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Container Body Car Carriage Board Panel Cold Roll Forming Machine Plc Control

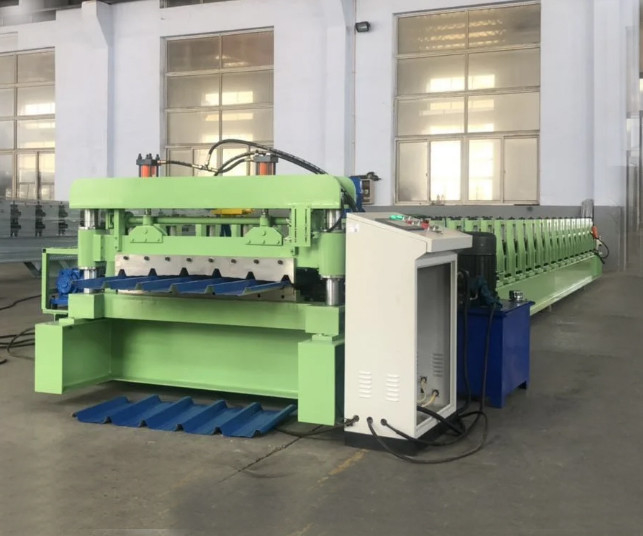

Trapezoid Steel Panel Roll Forming Machine Roof Wall Panel Roll Forming is the equipment that mainly produces trapezoidal sheet. Trapezoidal plates are very common in our daily lives. You can see that they are used in various fields, such as workshop, warehouse, carport, wall board, portable house, then why is it so widely used? Compared with traditional tiles, it has many advantages, such as light weight, high strength, heat insulation, easy installation, bright colors and waterproof, but at the same time it also has some small defects, such as sound insulation because of its thin thickness. The effect is relatively poor, and the ability to resist wind and cold is relatively poor, and it is easy to rust after a long period of rain and it is not easy to recycle.

Specification

1	Width of the plate	1219mm

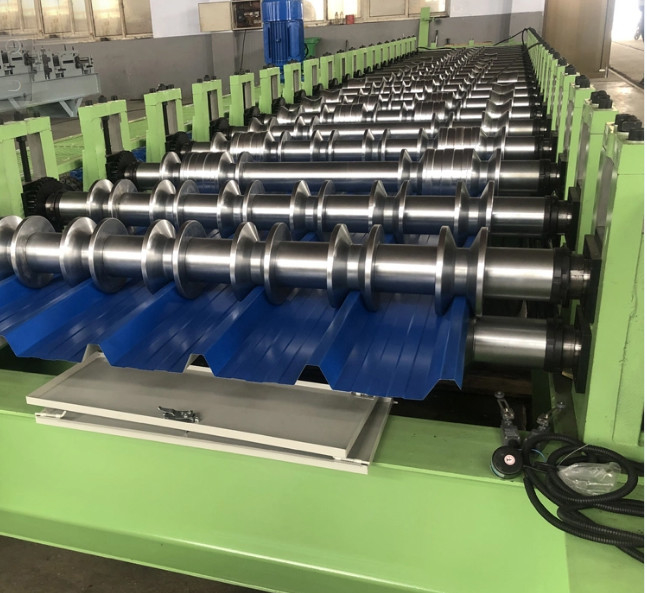

2	Rollers	18 Rows
4	Power	11+11+7.5kw
5	Thickness of the plate	0.8-1.2mm
6	Productivity	0-15m/min
7	Diameter of the roller	90mm
8	Weight	About4500kg
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
