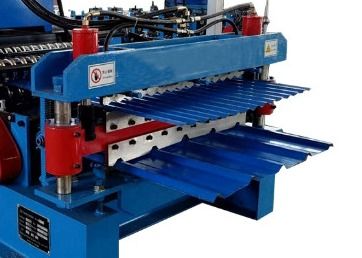

Ibr Steel Roofing Sheet Double Layer Roll Forming Machine 1.5mm

ibr double layer roll forming machine

1.5mm double layer roll forming machine

plc control double layer forming machine

Tempat asal:

CINA

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Produsen Mesin Roll Forming Lembar Atap Baja Ibr Lapisan Ganda

Pembentukan kecepatan:

6-15m/menit

Sistem Pengendalian:

Kontrol PLC

Menggunakan:

Atap dan panel dinding

Jenis:

Otomatis

Warna mesin:

Disesuaikan dengan Kebutuhan Pelanggan

Bahan roller:

45# baja

Ketebalan material:

0,3-1,5mm

Menyoroti:

ibr double layer roll forming machine

1.5mm double layer roll forming machine

plc control double layer forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

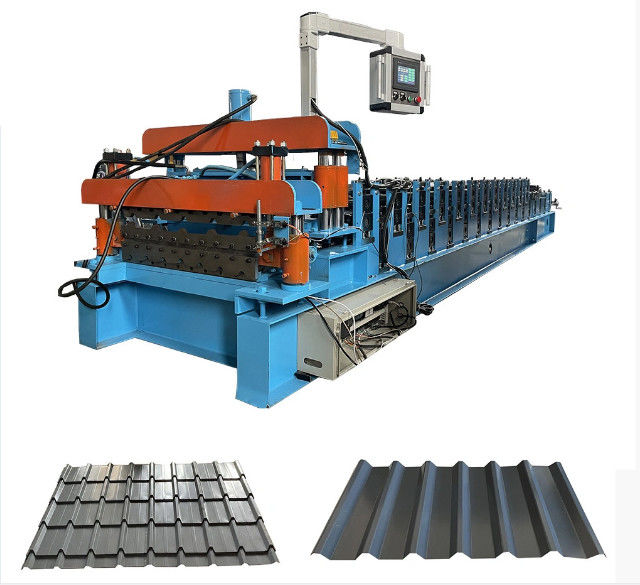

Double Layer Ibr Steel Roofing Sheet Roll Forming Machine Manufacturer

To save space and save money, some customer like to choose double layer roll forming machine, double layer roll forming machine popular sell in many countries, 2 shapes make in one machine, common it include:

1. Trapezoidal sheet and trapezoidal sheet double layer machine
2. Trapezoidal sheet and corrugated sheet double layer machine
3. Corrugated sheet and corrugated sheet double layer machine
4. Trapezoidal sheet and glazed tile sheet double layer machine
5. Corrugated sheet and glazed tile sheet double layer machine

Please noted that double layer machine only can work one layer one time, can not 2 layer work at same time,

Specification

Part details	Item Name	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	Depend on customer' drawing
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 6×1.5×1.3 m
	Machine weight	About 7.5 ton
	Machine color	As customer' request
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	7.5 kw
	Pump power	4 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need
Decoiler	Operation	Manual
Decoiler	Weight capicatity	5 ton
Receiving table	Operation	Manual
	Length	3 m
	Price	Free as gift

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
