1300mm Ppgi Double Layer Roll Forming Machine Automatic Metal Roof Panel

1300mm double layer roll forming machine

16groups double layer roll forming machine

ppgi double roll forming machine

Tempat asal:

CINA

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lapisan Ganda Otomatis Mesin Panel Atap Logam

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Sistem Pengendalian:

Kontrol PLC

Menggunakan:

Atap dan dinding

Jenis:

Otomatis

Voltase:

380V 50Hz 3Phase

Lebar makan:

Max 1300mm

Kapasitas:

5ton

Menyoroti:

1300mm double layer roll forming machine

16groups double layer roll forming machine

ppgi double roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

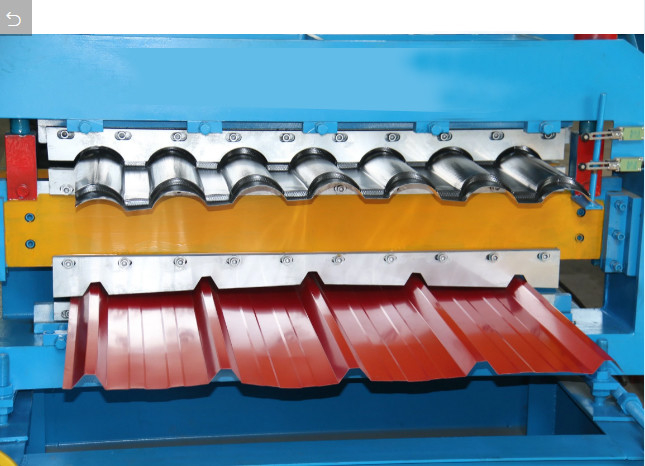

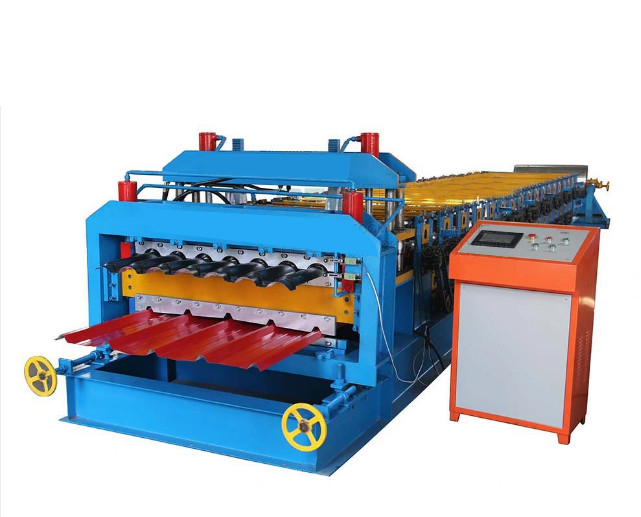

Automatic Double Layer Roll Forming Machine Metal Roof Panel Machine

Double Layer Roll Forming Machine Metal Roof Panel Machine is one most popular type of roll forming machines. Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.

Specification

Automatic Double Layer Roll Forming Machine Metal Roof Panel Machine
Main motor power	4 kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	16 groups and 18 groups
Raw material	0.3-0.8mm
Coil width	1000mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 9 ton
Size of machine	About 7500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Other electrical element	Schneider
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

1300mm Ppgi Double Layer Roll Forming Machine Automatic Metal Roof Panel 0
