Rumah > Produk > Mesin pembentuk gulungan pintu rana >

Automatic Galvanized Shutter Door Rolling Machine 0.7mm

galvanized shutter door rolling machine

0.7mm shutter door rolling machine

0.7mm shutter door forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin pembentuk gulungan pintu rana

Voltase:

380V 50Hz 3Phase

Jaminan:

1 Tahun

Bahan mentah:

Lembar galvanis

Kapasitas Produksi:

8-12 meter/menit

Nilai jual utama:

Umur layanan yang panjang

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Bahan poros:

45# Perawatan Penempaan Baja

Menyoroti:

galvanized shutter door rolling machine

0.7mm shutter door rolling machine

0.7mm shutter door forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik

Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik

Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Dapatkan Harga Terbaik

Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

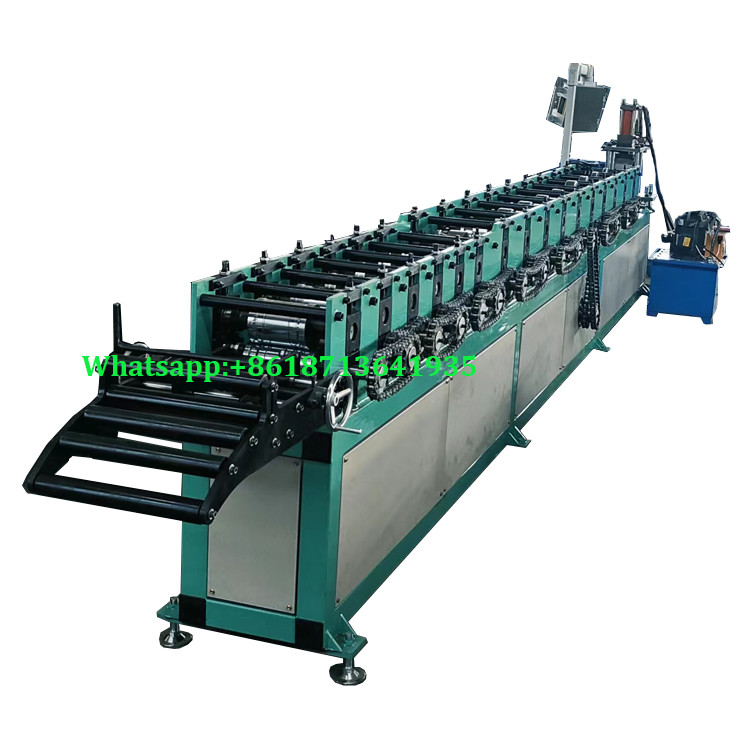

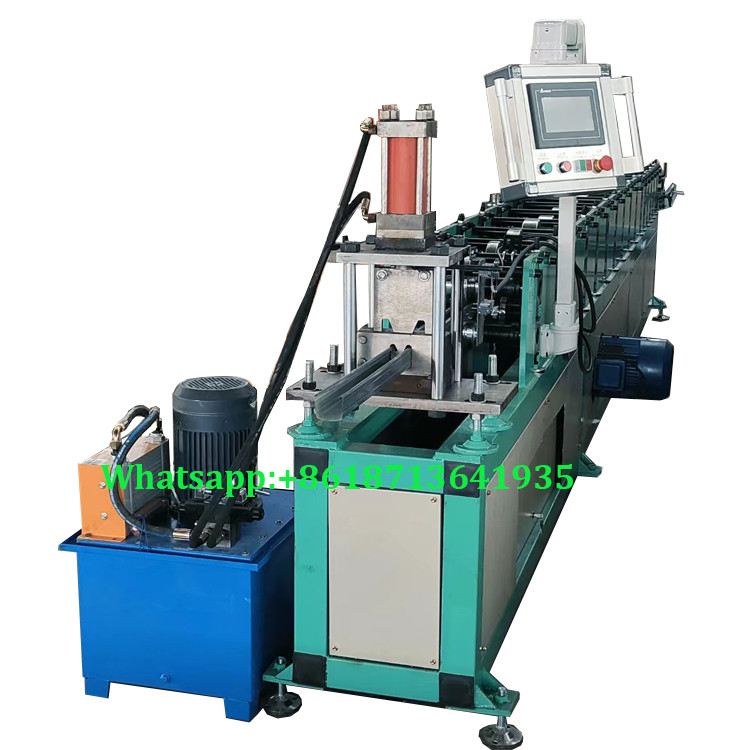

Automatic Shutter Door U Guide Rail Roll Foming Machine Manufacturer

Automatic Shutter Door U Guide Rail Roll Foming Machine Manufacturer,we are the professional shutter door machine manufacturer in China, and we export shutter door roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc. Common shutter door rolling thickness from 0.7-1.2 mm, material use PPGI or GI material all ok. Size can customize can your need size.

Shutter door roll forming machine Features:
• Easy operate with high production capacity
• Carriage with hardened gear or chain
• Magnetic linear encoder for direct measuring
• Precision length and width control
• Motor brake for secure positioning

Equipment Detailed Parameters:

Roll forming machine name	shutter door roll forming machine
Brand of plc	Delta
Material of rollers	Gcr12 steel
Material of shafts	Soild high grade 45# steel
Diameter of shaft	60mm
Material of blade	Cr12 ateel
Transmission	Chain
Motor voltage	380V 50Hz 3P or customized
Motor kw	5.5kw
Cutter system	Automatic Hydraulic cutter system
Hydraulic pump kw	3 kw
Machine base frame	square pipe welding
Thickness of raw material	1-2mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
