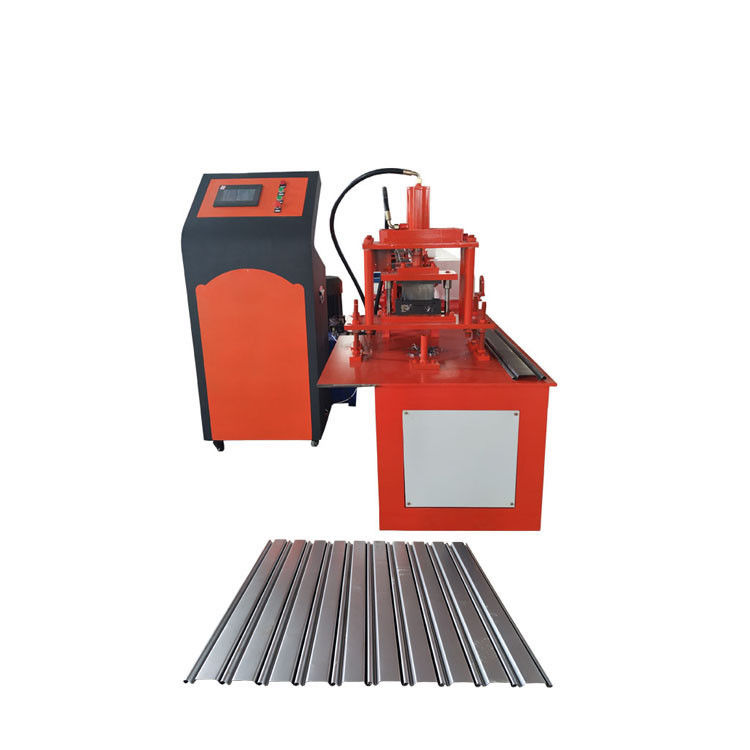

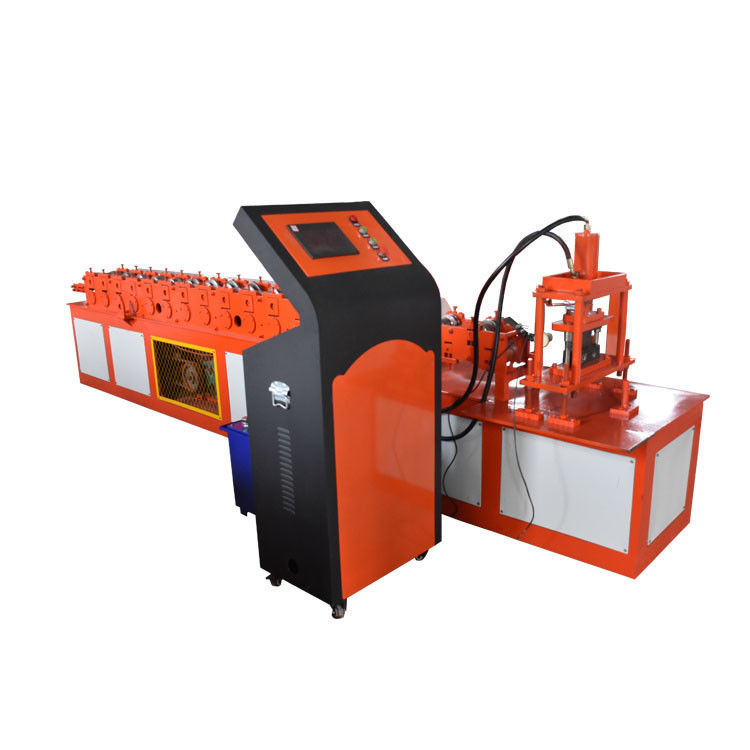

Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm

Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm

ppgi roller shutter door forming machine

1.2mm roller shutter door forming machine

plc door shutter roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bilah Rana

Hubungi Kami
Minta Penawaran Harga
Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm
Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm
Detail Produk
Nama Produk:
Bagian Pintu Rana Mesin Roll Forming Shutter Slat
Bahan mentah:
Galvalum, Galvanis, PPGI
Kapasitas Produksi:
8-15m/mnt
Voltase:
380V 50HZ 3Pa
Berat:
3t
Ketebalan:
0.3-1.2mm
Dimensi (P*L*T):
5000mm * 1000mm * 1500mm
Bahan rol:
45#baja Dilapisi Krom Keras
Sistem Pengendalian:
PLC (merek impor)
Menyoroti:

ppgi roller shutter door forming machine

,

1.2mm roller shutter door forming machine

,

plc door shutter roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

Shutter Door Section Roll Forming Machine Shutter Slat

Production Process:

Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving

Warranty

one year, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.(plane ticket, food, hotel and per day 80$ salary)



Specification

Suitable Material Material GI, PPGI, PPGL
Width 170 mm
Thickness 0.3-1.2 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 12 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50 mm
Material of cutting blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed 15-20 m/min
Side plate thickness 16 mm
Chain size 1 inch
Total power 4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 5000mm*1000mm*1500mm
Weight(About) 3 tons
Length measurement Encoder
Control mode Delta PLC
Operating mode Button + Delta Touch screen



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.



Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm 0
