Rumah > Produk > Mesin pembentuk gulungan pintu rana >

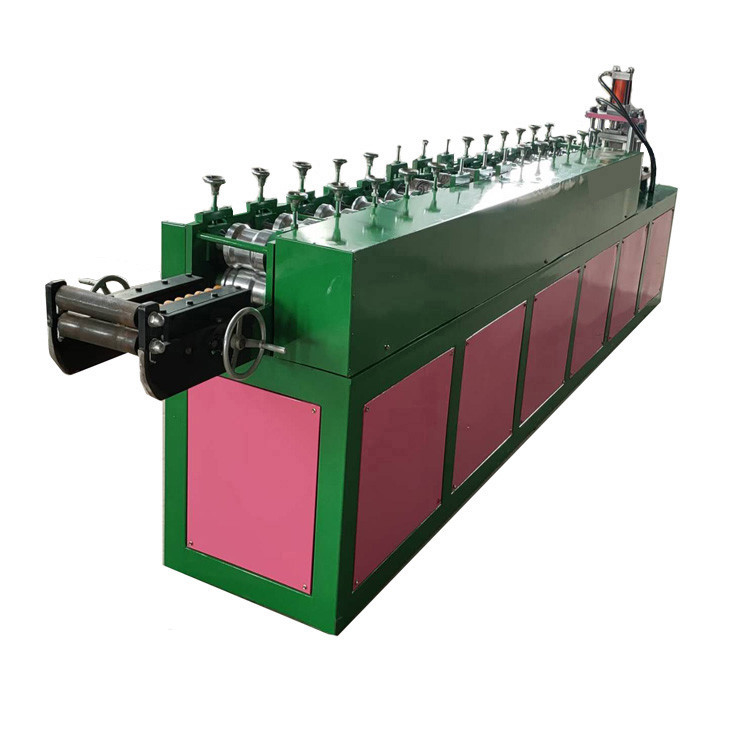

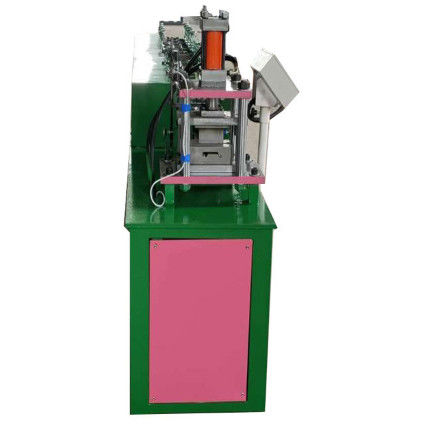

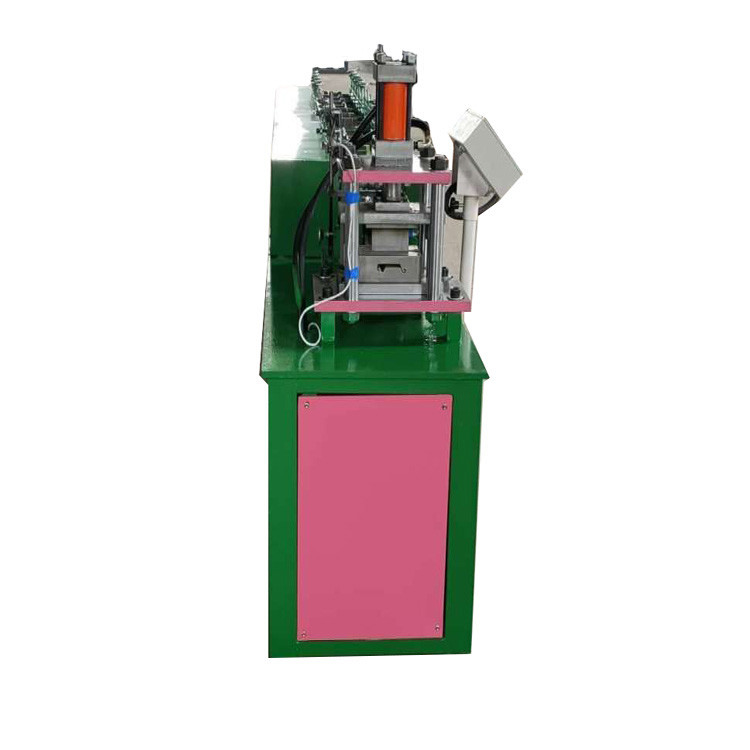

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

ce shutter door roll forming machine

30m/min shutter door roll forming machine

chain driving shutter door forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bilah Rana

Hubungi Kami
Minta Penawaran Harga
Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min
Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min
Detail Produk
Nama Produk:
Bilah Pintu Rana Bergulir Logam Mesin Roll Forming Kecepatan 20-30m/Menit
Bahan mentah:
Galvalum, Galvanis, PPGI
Dimensi (P*L*T):
4m*1,2m*1,3m
Kapasitas Produksi:
8-15m/mnt
Voltase:
380V 50Hz 3fase atau sesuai kebutuhan Anda
Kondisi:
Baru
Warna:
Sesuai permintaan pelanggan
Berat:
2000 kg
Bahan rol:
45#baja Dilapisi Krom Keras
Bahan poros utama:
Pemesinan finishing baja 45# dan kemudian kendur
Menyoroti:

ce shutter door roll forming machine

,

30m/min shutter door roll forming machine

,

chain driving shutter door forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/C, T/T, D/A, D/P.
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

Metal Rolling Shutter Door Slats Roll Forming Machine Speed 20-30m/Min



Shutter door slat rolling machine can roll forming different kinds of shutter door slat.

The machine will be customized according to your shutter door slat profile drawing.

After roll forming, here will have a punching system. the hole design will follow your request.

The surface of shutter door slat will very smooth and beautiful without any scrtached on surface.

On the shutter door slat surface, also can embossing different kind pattern or press logo as your request.



Specification

Material Thickness
0.6-1.0 mm
Working Speed
8-15 m/min
Roller Stations
12 stations
Material of Roller
45# steel quenching process and chrome coated
Material of Main Shaft
45 steel forged
Main Motor Power
3 KW
Electrical Hydraulic Station Power
3 KW
Hydraulic Station Pressure
12.0 Mpa
Material of Cutter
Cr12 Mov HRC 58-62
Driving Mode
Single chain 1 inch



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
