Name: Circular Three Waves 0.5mm Gutter Downspout Machine 15m/Min Forming
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Circular Three Waves 0.5mm Gutter Downspout Machine 15m/Min Forming

three waves gutter downspout machine

0.5mm gutter downspout machine

15m/min downspout forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU Famous

Sertifikasi:

ISO CE

Nomor model:

Downspout

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pipa Bawah Melingkar Jalur Pembuatan Pipa Air Bawah

Kapasitas Produksi:

10-15m/mnt

Voltase:

380V 50Hz 3Phase

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Komponen inti:

Motor, Pompa, PLC

Jaminan:

1 tahun

Bahan roller:

45 # baja Berlapis Krom

Kekuatan:

5.5kw

Menyoroti:

three waves gutter downspout machine

0.5mm gutter downspout machine

15m/min downspout forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

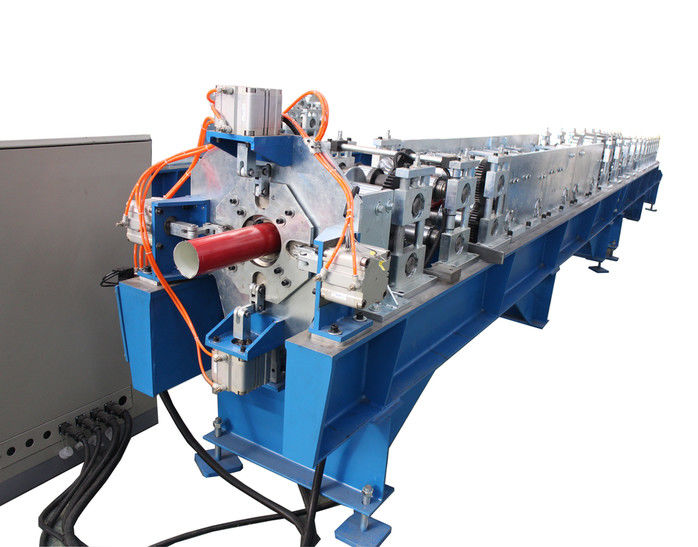

Circular Down Pipe Roll Forming Machine Water Down Pipe Making Line

1.The whole line working speed is about 15m/min.,max working speed could be 30-50 meters per minute.

2.Feeding material width should be confirmed before machine design .the width are changeable,

3.Material thickness normal range are 0.4-0.6mm.if you have any special request on material thickness,we should discuss in advance .

4.Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing.

5.Final sheet embossing is available.we can different embossing rollers on various pattern and drawings.

6.Hydraulic pre-cutting are provided.

Specification

Item	Technical Data
Steel Sheet Thickness	0.5-0.8mm (depend on requirement )
Voltage	380V, 50HZ, 3 phase
Transmission way	Chain
Material of blad	Cr12, quenching treatment
Capacity of Decoiler	3 ton passive decoiler
Forming Speed	10-15m/min
Roller Groups	about 18 stations
Roller Material	45# grade steel, quenching treatment
Roller Diameter	180mm
Principal Axis	45# high grade steel with quenching treatment
Main Motor Power	5.5 kw

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
