Name: Metal Gl Down Pipe Roll Forming Machine Steel Rain Gutter Making 22 Stations
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Metal Gl Down Pipe Roll Forming Machine Steel Rain Gutter Making 22 Stations

gl down pipe roll forming machine

plc down pipe roll forming machine

22 stations downpipe machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU Famous

Sertifikasi:

ISO CE

Nomor model:

Downspout

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pipa Downspout Logam Mesin Pembuat Talang Hujan Baja

Bahan mentah:

GL, GI, PPGI

Voltase:

380V 50Hz 3Phase

Sistem Pengendalian:

PLC

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri, Dukungan teknis video, Dukungan online, Insta

Jaminan:

1 tahun

Kapasitas Produksi:

5-12m/menit

Dimensi (P*L*T):

7,8m*1,4m*1,3m

Tenaga Motorik:

Cr 12 baja bermutu tinggi

Pompa hidrolik:

Sinar H 350mm

Menyoroti:

gl down pipe roll forming machine

plc down pipe roll forming machine

22 stations downpipe machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

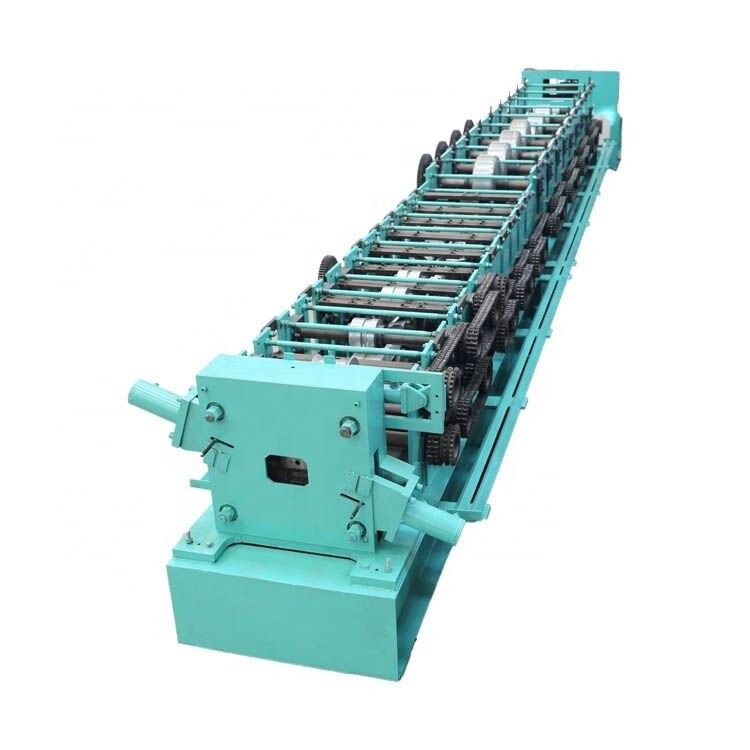

Metal Downspout Pipe Roll Forming Machine Steel Rain Gutter Making Machinery

cangzhou Famous is Professional cold roll forming machine manufacturer,our downspout roll forming machine with rational structure, good looking and duration, have been exported to Uganda, Bolivia,Uruguay, Nigeria, and many other countries. Our roll forming line of downspout machines run copper, steel, or aluminum. These are also ideal for piping for the HVAC industry for small sizes ductwork.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI
2	Roller material	45#steel Chrome Plated
3	Production Capacity	5-12m/min

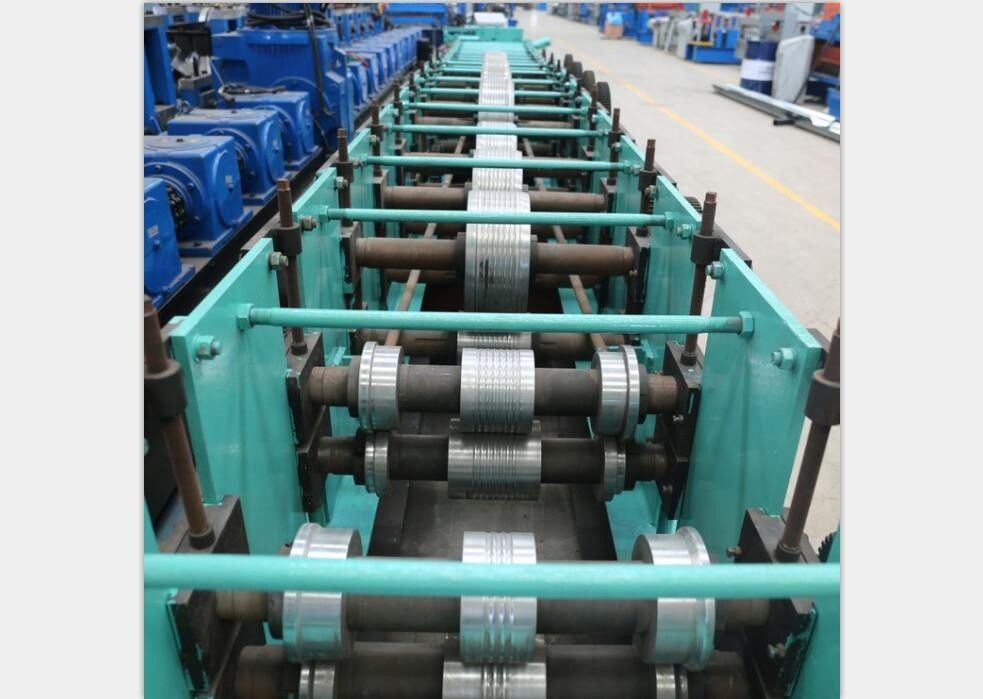

4	Roller Station	22 Stations
5	Roller stations	12-20rows
6	Machine Weight	9000 KG
7	Electrical Control System	PLC (can be customized)
8	Hydraulic Station Power	4 KW
9	Power Supply	380V50Hz3Ph
10	Cutting Accuracy	± 2 mm
11	Raw material	PPGI PPGL GI GL
12	Material of Roller	45# Steel Finish Machining, Plated Hard

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
