Name: Circular Downspout Roll Forming Machine Plc Control System
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Circular Downspout Roll Forming Machine Plc Control System

circular downspout roll forming machine

plc control downspout roll forming machine

cold metal shaping downspout forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU Famous

Sertifikasi:

ISO CE

Nomor model:

Downspout

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Sistem Kontrol PLC Mesin Roll Forming Pipa Bawah Melingkar

Ketebalan material:

Baja galvanis 0,3-0,8mm

Voltase:

380V 50Hz 3Phase

Kekuatan utama:

Motor servo 7.5kw

Komponen inti:

Motor, Pompa, PLC

Jaminan:

1 tahun

Bahan poros:

45# baja

Dimensi (P*L*T):

9500X800X1200MM

Menyoroti:

circular downspout roll forming machine

plc control downspout roll forming machine

cold metal shaping downspout forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

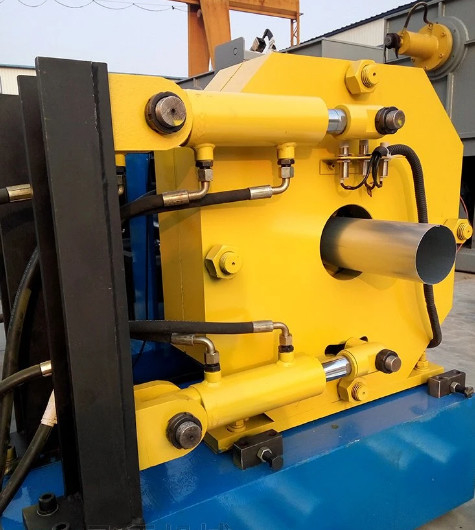

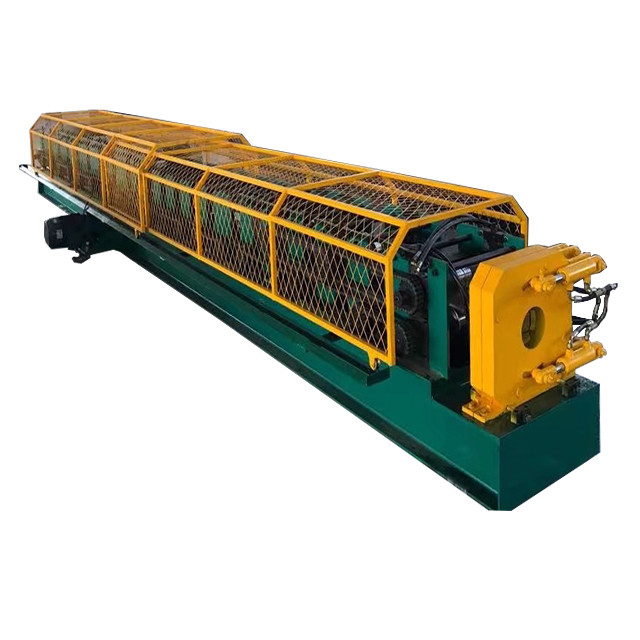

Circular Down Pipe Roll Forming Machine PLC Control System

cangzhou Famous is Professional cold roll forming machine manufacturer,our downspout roll forming machine with rational structure, good looking and duration, have been exported to Uganda, Bolivia,Uruguay, Nigeria, and many other countries.

The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.

steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable.

Specification

Forming stations:	About 24 stations or according to you profile drawings
Machine structure:	Wall panel structure
Material thickness	0.3-0.8mm
Forming speed	5-12m/min (EXCLUDING CUTTING STOP TIME)
Main motor power	7.5KW
Hydraulic station power	7.5KW
Rollers material :	45# forged steel, surface coated with chrome
Way of drive :	Chain drive
Raw material request:	Galvanized steel,PPGI, Aluminum
Cutting blade material	Cr12Mov quenching treatment

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
