Name: Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile

3phases down pipe roll forming machine

profile down pipe roll forming machine

cold metal downspout pipe forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU Famous

Sertifikasi:

ISO CE

Nomor model:

Downspout

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pipa Baja Air Hujan Mesin Pembuat Downpipe

Spesifikasi material:

Aluminium, Aluminium Dilapisi, Galvanis dan Dicat

Voltase:

380V 50Hz 3Phase

Sistem Pengendalian:

PLC

Bahan pembentuk roller:

Baja 45# dengan perawatan tempa, mesin bubut CNC, Dilapisi Krom Keras

Jaminan:

1 tahun

Daya Motor Utama:

5.5kw

Daya Stasiun Hidrolik:

4 kW

Menyoroti:

3phases down pipe roll forming machine

profile down pipe roll forming machine

cold metal downspout pipe forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

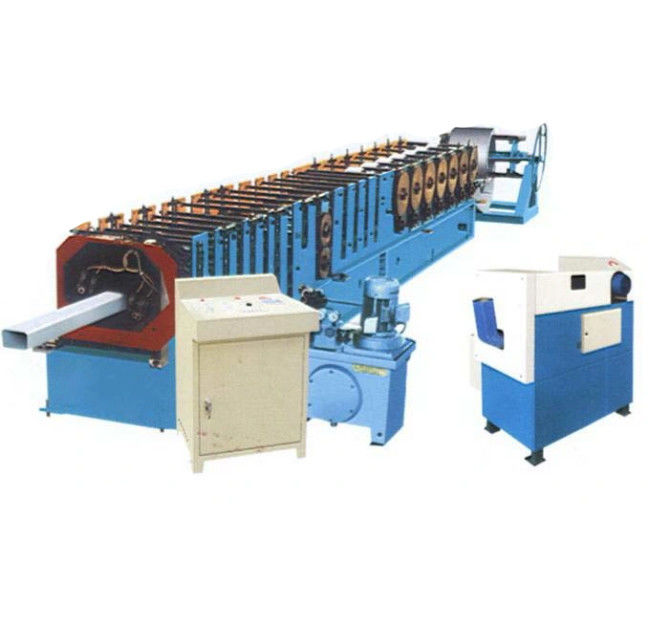

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine

Closed type colour coated steel downpipe is cold rolled and automatically edge interlocked by WLDP series downpipe roll forming machine, the finished products are of many features, such as good interlocking, beautiful integrity, lomg time using and so on . This series machine is matched with downpipe bending machine, used for bending and end narrowing . The angle of bending can be adjusted by manual according to engineering requirements.

The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.

steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable

Specification

The general machine parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	0.4-0.6mm
Frame design	Wall-plate-frame-design /Strong-stand-frame-design
Roll stages	16 stages
Material of forming roller	45# steel with forge treatment, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	5.5KW
Max. Line speed of roll former	12-15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	3 KW
Material of cutting blade	Cr12, heat treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Machine Dimensions	9500mm×1200mm×1400mm
Major Color of Machine Painted	RAL 5015 (Blue)or as per customer's requirements

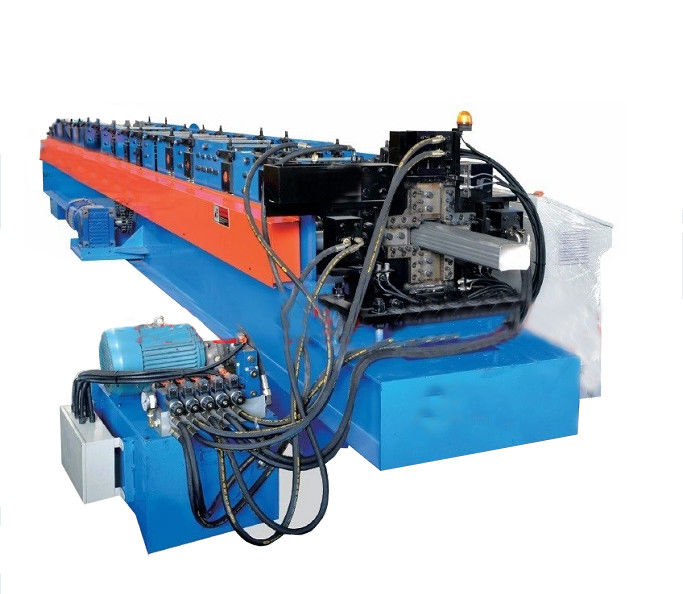

Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile 0

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
