Name: Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi

0.3mm downspout forming machine

ppgi steel downspout forming machine

3 phases downspout roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU Famous

Sertifikasi:

ISO CE

Nomor model:

Downspout

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pipa Baja Air Hujan Mesin Pembuat Downpipe

Spesifikasi material:

Aluminium, Aluminium Dilapisi, Galvanis dan Dicat

Voltase:

380V 50Hz 3Phase

Sistem Pengendalian:

PLC

Ketebalan:

0,3 MM SAMPAI 0,8 MM

Jaminan:

1 tahun

Daya Motor Utama:

7,5 kW

Daya Stasiun Hidrolik:

4 kW

Lebar makan:

398mm

Lebar Penutup:

Model # Wlfm89-118 berukuran 118mm

Menyoroti:

0.3mm downspout forming machine

ppgi steel downspout forming machine

3 phases downspout roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

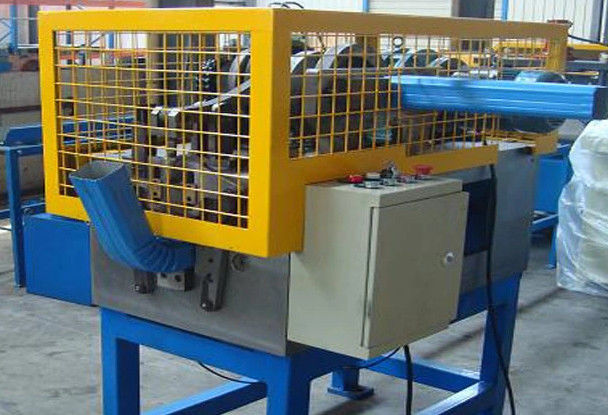

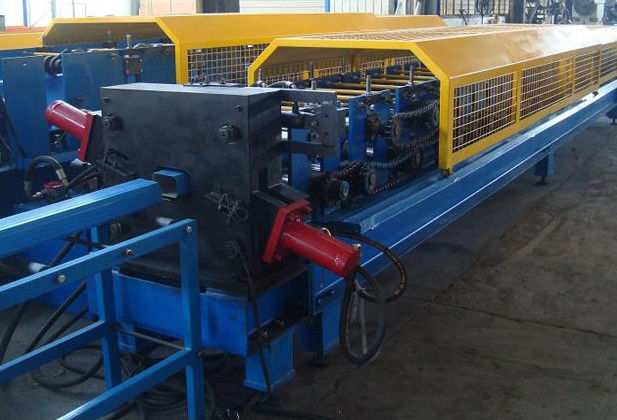

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine

Closed type colour coated steel downpipe is cold rolled and automatically edge interlocked by WLDP series downpipe roll forming machine, the finished products are of many features, such as good interlocking, beautiful integrity, lomg time using and so on . This series machine is matched with downpipe bending machine, used for bending and end narrowing . The angle of bending can be adjusted by manual according to engineering requirements.

Specification

Item	Description
Material Spec	Aluminum, coated aluminum, galvanized and painted galvanized steel sheet
Thickness	0.3 mm to 0.8mm
Main motor power	7.5 kw
Hydraulic station power	4 kw
Feeding width	398mm
Cover width	Model# WLFM89-118 is 118mm
Coil stress	Q235 Mpa (33KSI); maximum stress yield is Q345Mpa (50KSI)
Roll forming Speed	10~12 m/min
Cutting Tolerance	≤±2mm
Manual Uncoiler	Max. Capacity: 3000kgs
Manual Uncoiler	Roll-formed and length-set cutting

Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi 0

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
