Slat Ppgi Shutter Door Roll Forming Machine Fully Automatic

shutter door roll forming machine ppgi

fullyautomatic shutter door roll forming machine

ppgl roller shutter door making machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembentuk Bilah Pintu Rana Sepenuhnya Otomatis

Bahan mentah:

PPGI,GI,PPGL GL

Kecepatan kerja:

15-20m/mnt

Ketipisan bergulir:

0,3 mm - 0,8 mm

Dimensi (P*L*T):

4*1*1.4m

Kondisi:

Baru

Voltase:

380v

Bahan poros:

#45 baja

Menyoroti:

shutter door roll forming machine ppgi

fullyautomatic shutter door roll forming machine

ppgl roller shutter door making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik

Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik

Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Dapatkan Harga Terbaik

Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

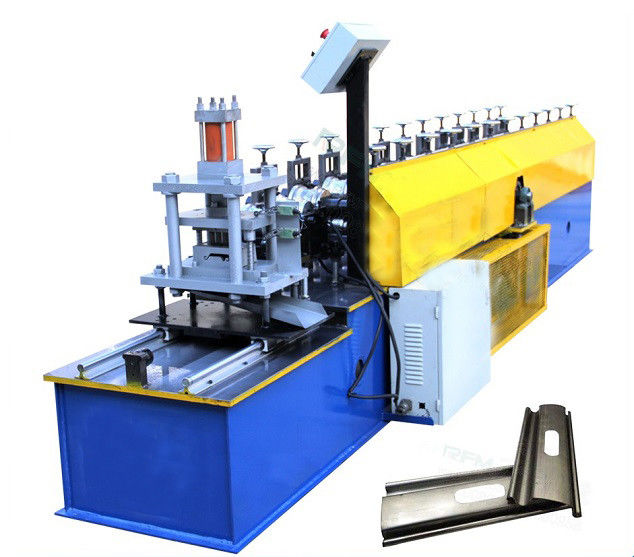

Shutter Door Slat Forming Machine Fully Automatic

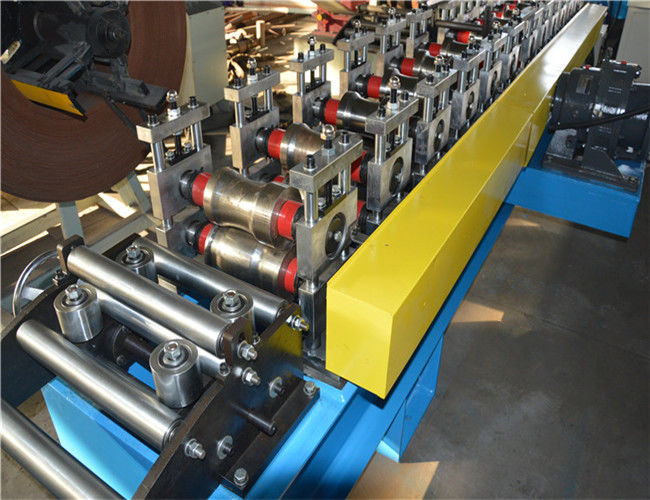

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller wa chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature: Ensure stability, precision and lifetime

Profile Drawing

Specification

main forming machine	Forming steps	14 steps
	Shaft diameter	40mm
	Machine stand	Memorial arch frame
	Machine frame	carbon steel welded
	Roller material	GCr12MoV
	Shaft material	45# steel
	Work speed	15-20m/min
	Transport	By gear
	Power of main machine	3kw
	Voltage	380V-50HZ-3P(as required)
	Machine dimension	411.4m
	Machine weight	about 2.2T
	Machine color	Yellow and blue(as required)

Slat Ppgi Shutter Door Roll Forming Machine Fully Automatic 1

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
