Name: Hydraulic Cutting Gl Down Pipe Roll Forming Machine Plc Control
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Hydraulic Cutting Gl Down Pipe Roll Forming Machine Plc Control

gl down pipe roll forming machine

hydraulic down pipe roll forming machine

3 phases downspout machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU Famous

Sertifikasi:

ISO CE

Nomor model:

Downspout

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin pembentuk gulungan downspout hidrolik sistem kontrol PLC

Bahan mentah:

GL, GI, PPGI

Voltase:

380V 50Hz 3Phase

Sistem Pengendalian:

PLC

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri, Dukungan teknis video, Dukungan online, Insta

Jaminan:

2 tahun

Ketebalan Bahan:

0,4-0,6mm

Stasiun rol:

Tenaga Motorik:

7.5kw

Pompa hidrolik:

4 kW

Menyoroti:

gl down pipe roll forming machine

hydraulic down pipe roll forming machine

3 phases downspout machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

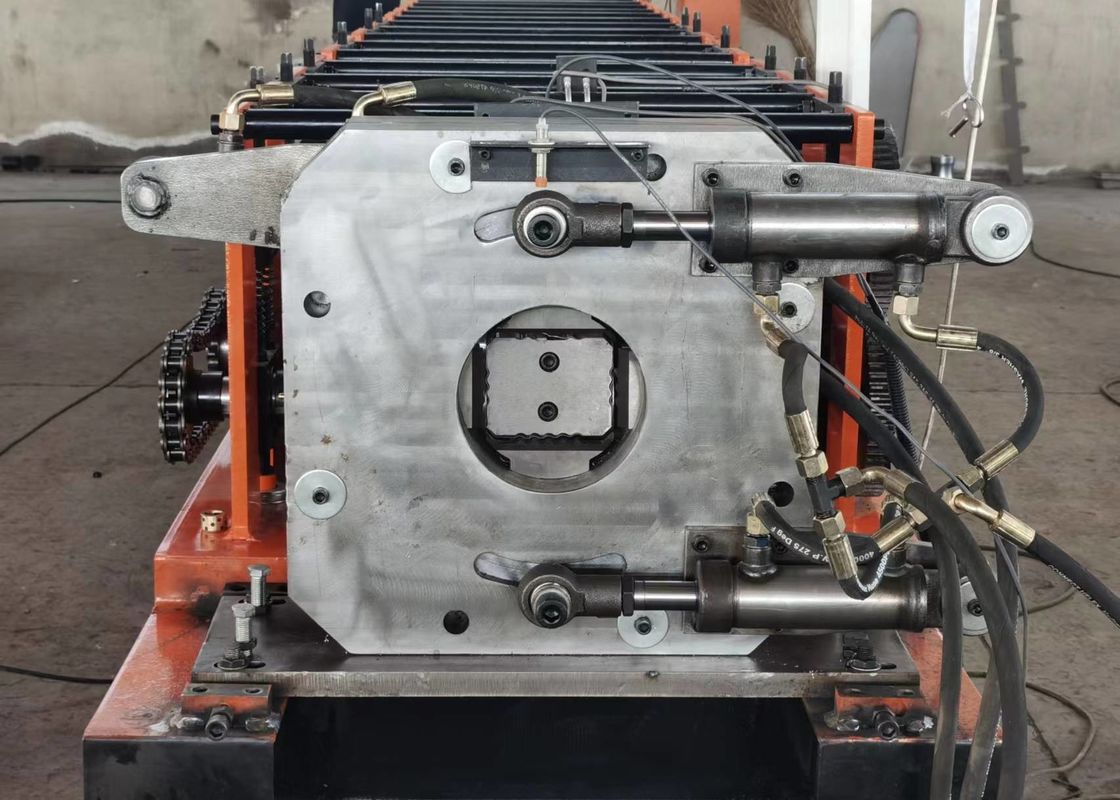

Hydraulic cutting downspout roll forming machine PLC control system

cangzhou Famous is Professional cold roll forming machine manufacturer,our downspout roll forming machine with rational structure, good looking and duration, have been exported to Uganda, Bolivia,Uruguay, Nigeria, and many other countries.

Profile Drawing

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI
2	Raw Material Thickness	0.4 mm - 0.6 mm
3	Working Speed	8-10 m/min
4	Roller Station	22 Stations
5	Dimension (LWH)	9200 mm800 mm1200 mm
6	Machine Weight	9000 KG
7	Electrical Control System	PLC (can be customized)
8	Drive Motor Power	7.5 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Advantage

The equipment is controlled to PLC control, and multiple safety protection is made during normal production. The bed is welded with steel plates. And make a fire treatment to eliminate internal stress and avoid deformation of the fuselage. The material of the roll axis is 40CR, and the quality is adjusted, and the hardness is HB280. The material of the molding mold is GCR15, quenching treatment, hardness: HRC56-62 ° C.

Application

Collect the rainwater of the roof and concentrate to the rainwater pipe paved below the ground. The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.

steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable.

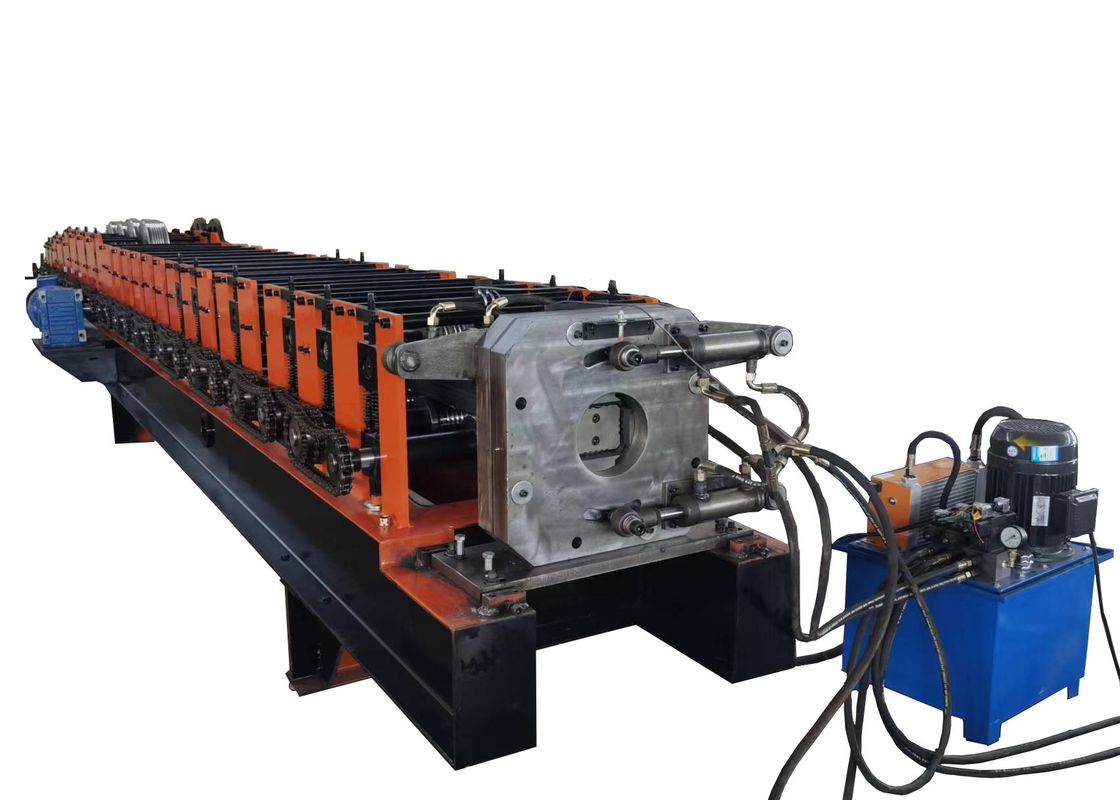

Hydraulic Cutting Gl Down Pipe Roll Forming Machine Plc Control 1
