Name: Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: FMS-24.3-262.5-1050
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

aluminum coil trapezoidal roll forming machine

converter trapezoidal roll forming machine

converter trapezoidal sheet roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE, ISO, TUV

Nomor model:

FMS-24.3-262.5-1050

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Mesin Roll Forming Trapesium

Kecepatan pembentukan gulungan:

15-20m/mnt

Bahan roller:

Baja no.45, dilapisi dengan perawatan chrome

Tenaga motor stasiun hidrolik:

4KW

Sistem Pengendalian:

delta plc dan konverter

Daya Motor Utama:

5.5kw

Voltase:

380V 50HZ 3PH

Bahan:

Kumparan Baja Berwarna, Kumparan Baja Galvanis, Kumparan Aluminium

Menyoroti:

aluminum coil trapezoidal roll forming machine

converter trapezoidal roll forming machine

converter trapezoidal sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram, L/C, D/A, D/P

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Trapezoidal Metal Roof Tile Roll Forming Machine

The trapezoidal roll forming machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The trapezoidal roll forming machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production

speed of this line is adjustable from 0 to 15 meters per minute, and the normal operation speed is 8 to 10 meters per minute.

3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported

high-quality components with stable performance and high reliability materials applicable to high technical parameters.

Profile Drawing

Equipment Detailed Parameters

Suitable Raw Material
Weight	About 5000kgs
Size	About 8m x 1.2m x 1.3m (length x width x height)
Material	pre-painted steel coil, galvanized steel coil, galvalume steel coil
Thickness	0.3-0.8mm
Coil width	1220mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	18
Diameter of forming rollers shafts	70mm
Roll Forming Speed	0-15m/min
Forming rollers material	45# steel with CNC machining and surface is being hard chrome
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	DELTA PLC and Converter
Electric Power requirement	Main motor power: 5.5kw
Electric Power requirement	Hydraulic unit motor power: 4kw
Electric voltage	According to customer’s requirement

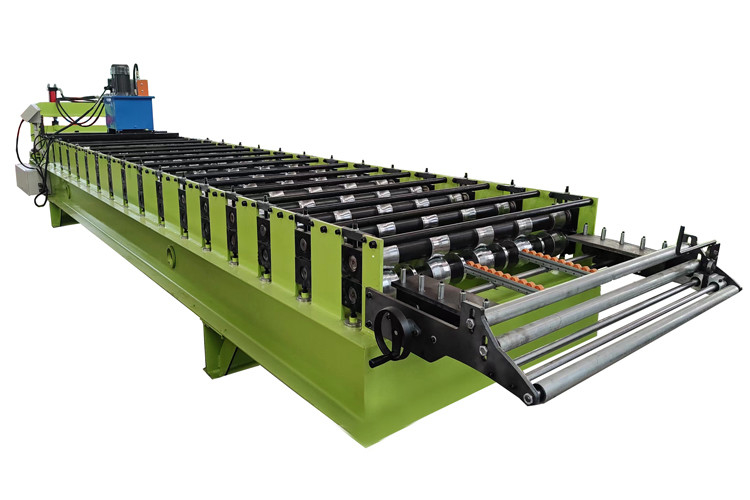

More machine pictures

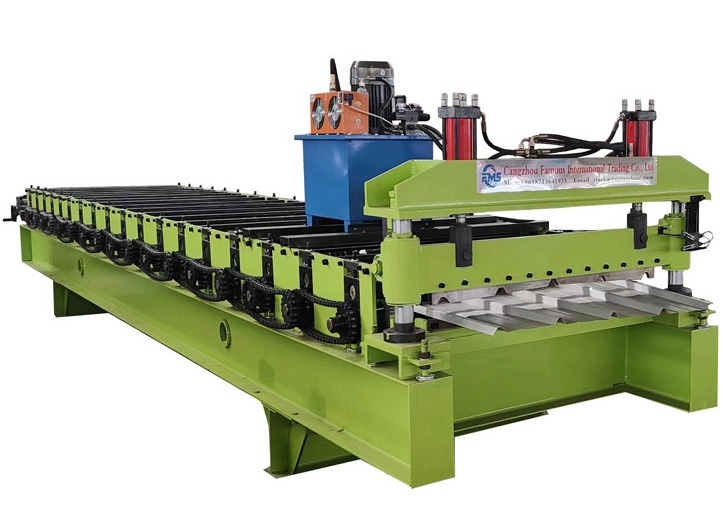

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw 1

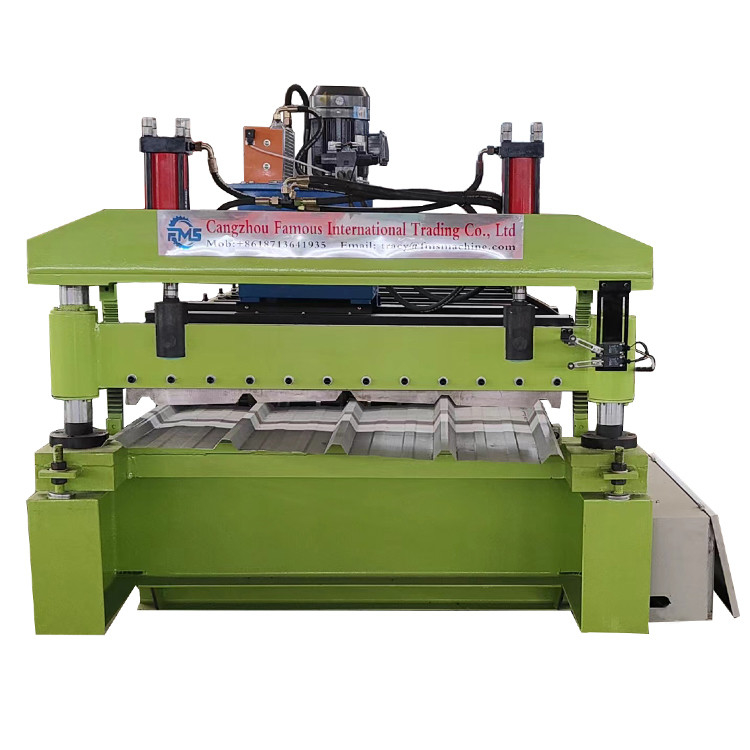

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw 2

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

The Delivery Time: 30 working days after the down payment is received.
