Trapezoidal Roof 1250mm Wall Panel Roll Forming Machine Galvanized Steel

1250mm wall panel roll forming machine

trapezoidal wall panel roll forming machine

roof and wall panel roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Panel Dinding Atap Trapesium Baja Galvanis

Cocok untuk diolah:

Pelat baja warna

Lebar pelat:

1250mm

Rol:

10 baris

Voltase:

380V atau lainnya

Kekuatan:

4+4KW

Bahan bergulir:

Baja 45 # (berlapis krom di permukaan)

Ketebalan pelat:

0,3-0,6 mm

Bahan pelat pemotong:

CR12

Sistem Pengendalian:

Kontrol PLC

Menyoroti:

1250mm wall panel roll forming machine

trapezoidal wall panel roll forming machine

roof and wall panel roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Dapatkan Harga Terbaik

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Dapatkan Harga Terbaik

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Dapatkan Harga Terbaik

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

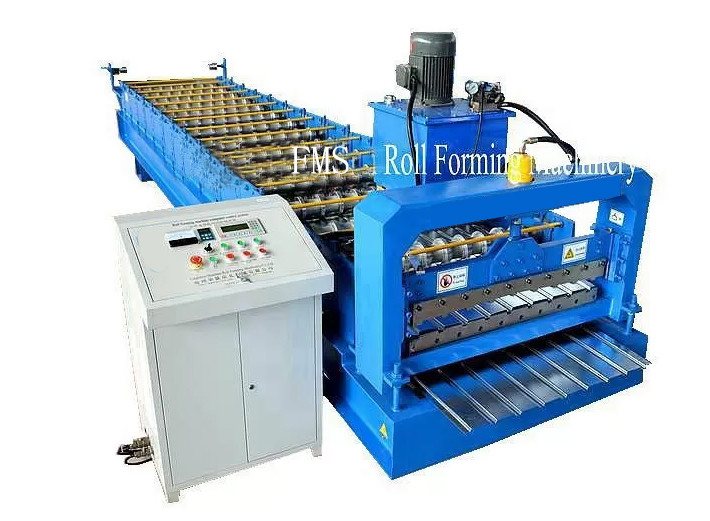

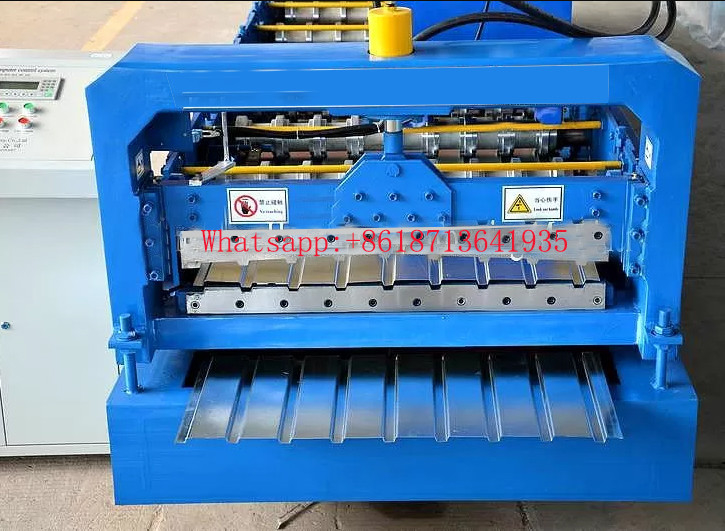

Trapezoidal Roof Wall Panel Roll Forming machine Galvanized Steel

This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

This type of roof sheet has advantage including beautiful, classical appearance and grace taste.

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.

Specification

No.	Main parameter of Wall Panel Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	1250 mm
3	Rollers	10 rows
4	Dimensions	530015501510mm
5	Power	4+4kw
6	Rolling material	45# steel(plated chrome on surface)
6	Thickness of the plate	0.3-0.6mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ70mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
