Name: Metal Gardens Ibr Roll Forming Machine Tile Roofing Sheet Making
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bertemu Ubin / Ubin Mengkilap
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Metal Gardens Ibr Roll Forming Machine Tile Roofing Sheet Making

metal ibr roll forming machine

gardens ibr roll forming machine

tile roofing sheet ibr making machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami

Minta Penawaran Harga

Metal Gardens Ibr Roll Forming Machine Tile Roofing Sheet Making

Detail Produk

Nama Produk:

Mesin Roll Forming Logam IBR Mesin Pembuat Lembaran Atap Genteng

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium, Tembaga

Dimensi (P*L*T):

8600x1500x1300mm

Kapasitas Produksi:

8-15m/mnt

Bahan poros:

45# Diameter Luar Baja: 80mm

Lebar makan:

1220mm

Berat:

5000 kg

Akurasi pemotongan:

±2 mm

Menyoroti:

metal ibr roll forming machine

gardens ibr roll forming machine

tile roofing sheet ibr making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

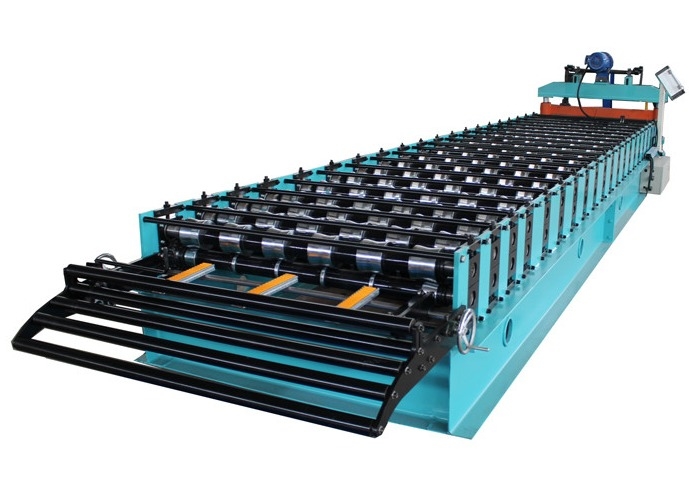

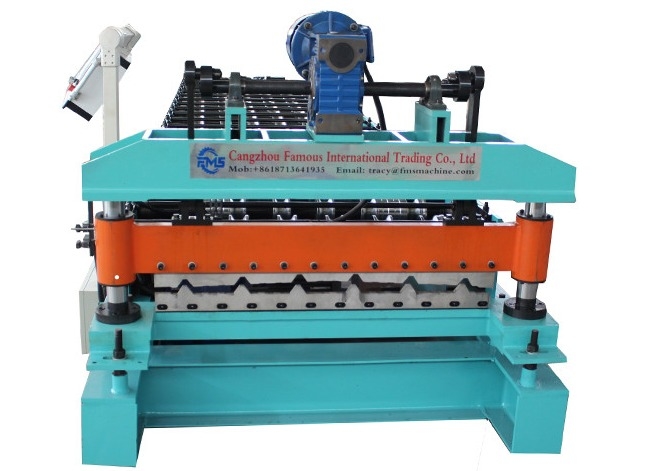

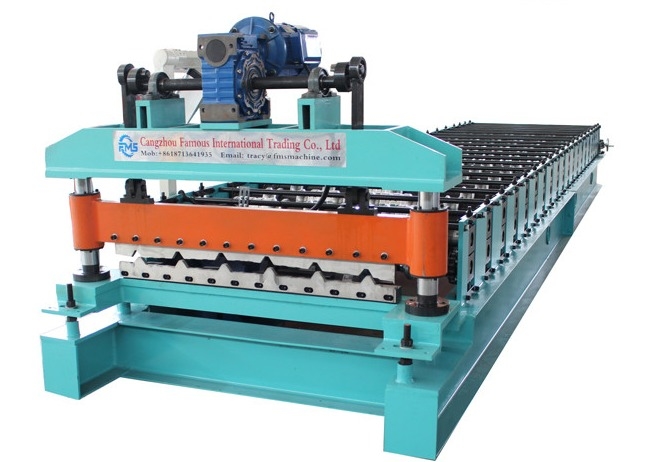

IBR Metal Roll Forming Machine Tile Roofing Sheet Making Machines

The Roof tiles made by oursingle layer roofing roll forming machine for roof panel have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.

Specification

Name	Details	Remark
Feed frame roller	Stainless Steel
Machine base structure	350H steel welded
Machine architecture	Middle plate	20mm thick
Drive mode	Chain drive
Roller station numbers	18 rows of rollers
Rollers material	45# steel	Surface hard chromium plating
Shaft diameters	Φ 90mm +80mmSolid shafts
Shaft material	45# steel
Motor power	5.5kw
Forming speed	0-12m per minute
Power	380v 50hz 3Phase	Or as customer request

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
