Name: Tube And Pipe 2.5mm Gutter Downspout Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: selokan
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

Tube And Pipe 2.5mm Gutter Downspout Roll Forming Machine

2.5mm gutter downspout roll forming machine

aluminum gutter downspout roll forming machine

2.5mm gutter downspout machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

selokan

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Tabung Dan Pipa Downpipe Membuat Lini Produksi

Jenis:

Otomatis

Voltase:

380V, 380V 50Hz

Metode pemotongan:

Potong gergaji lalat

Sistem Pengendalian:

Kontrol PLC

Kapasitas Produksi:

10-15m/mnt

Bahan pelat pemotong:

CR12

Kekuatan:

7.5kw

Menyoroti:

2.5mm gutter downspout roll forming machine

aluminum gutter downspout roll forming machine

2.5mm gutter downspout machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

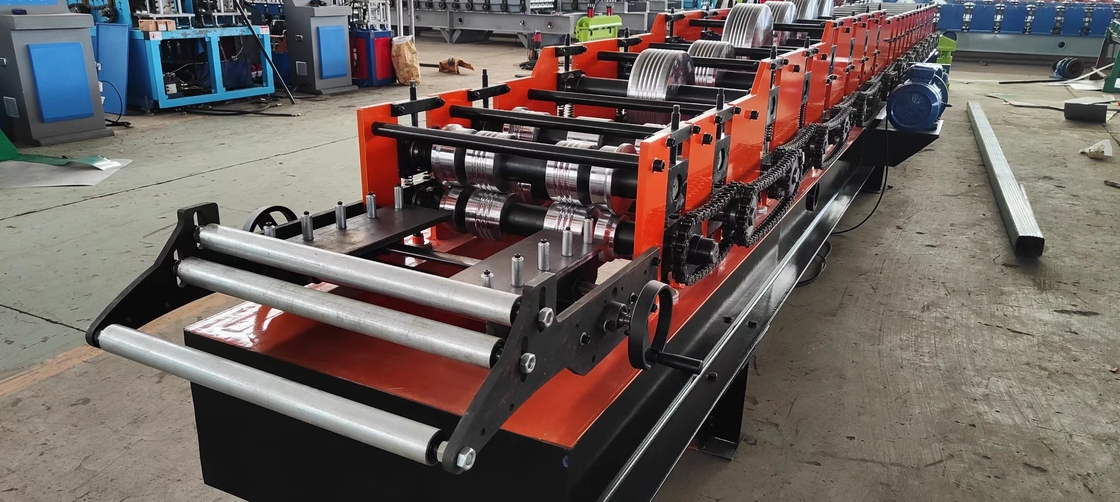

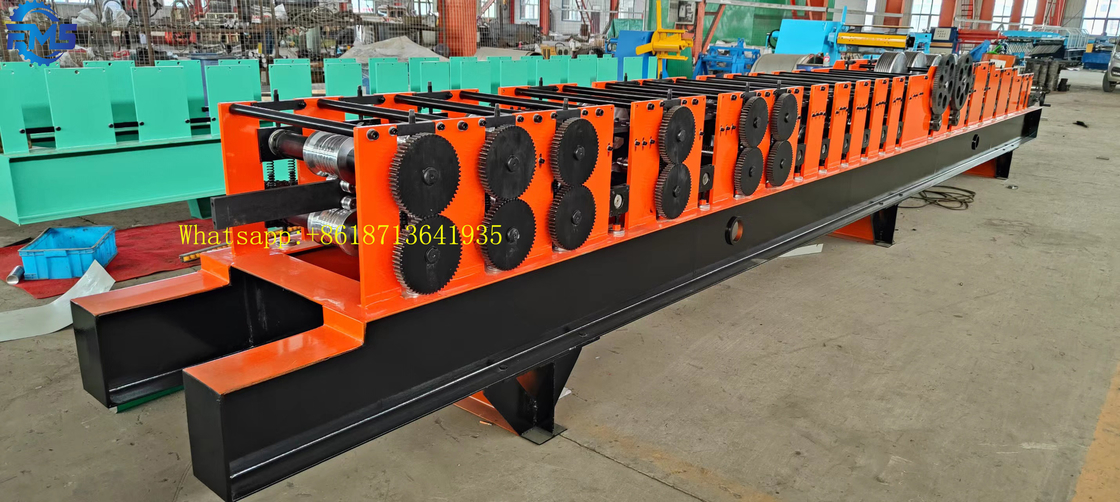

Tube And Pipe Downpipe Roll Forming Machine Making Production Line

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

Specification

Suitable to process	Color steel plate, galvanized sheet,aluminum coils and etc.
Roller station	16 rows
Feeding width of material	330mm
Thickness of feeding material	1.2-2.5mm
Productivity	6-12m/min
Rollers' material	45# steel,Hot treatment hardness HRC55º-57º
Diameter of shaft	66mm
Weight	About 4.0 T
Size	8.01.351.4m
Voltage	380V 50Hz 3Phase
Main motor power	5.5kw
Hydraulic cutting power	4 kw
Mould cutting material	Cr12 steel treatment hardness HRC60º-62º

Application

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms and delivery

40% in advance as down payment
60% is paid before the shipment is processed
The Delivery Time: 30 days after the down payment is received.
