Name: 76.2 * 101.6mm Rectangular Downpipe Forming Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: selokan
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

76.2 * 101.6mm Rectangular Downpipe Forming Machine Full Automatic

rectangular downpipe forming machine

76.2 * 101.6mm downpipe forming machine

full automatic square downspout machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

selokan

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

76.2 * 101.6mm Mesin Roll Forming Downspout Persegi Panjang Otomatis Penuh

Jenis:

Otomatis

Voltase:

380V 50Hz 3Phase

Metode pemotongan:

Potong gergaji lalat

Sistem Pengendalian:

Kontrol PLC

Ketebalan pelat:

0,3-0,6mm

Bahan pelat pemotong:

CR12

Ukuran:

7,4*1,15*1,51m

Hidrolik:

40#

Kekuatan:

5,5+4KW

Menyoroti:

rectangular downpipe forming machine

76.2 * 101.6mm downpipe forming machine

full automatic square downspout machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

76.2 * 101.6mm Rectangular Downspout Roll Forming Machinery Full Automatic

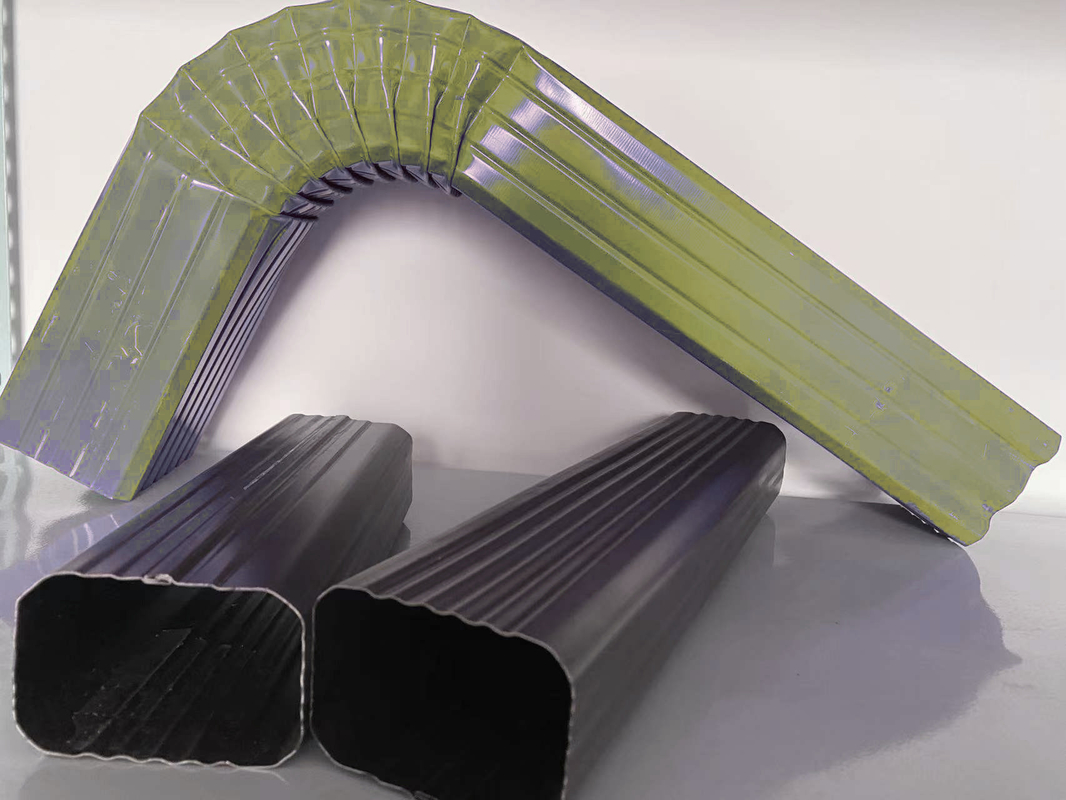

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Specification

No.	Main parameter of Downspout Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	330mm
3	Rollers	15rows
4	Dimensions	740011501510mm
5	Power	5.5+4kw
6	Rolling material	high grade 45# steel(plated chrome on surface)
6	Thickness of the plate	0.3-0.6mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ66mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Application

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms and delivery

40% in advance as down payment
60% is paid before the shipment is processed
The Delivery Time: 30 days after the down payment is received.
