Galvanized Steel 15m/Min Floor Deck Forming Machine 28 Rows High Speed

galvanized steel floor deck forming machine

15m/min floor deck forming machine

28rows deck floor roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Dek Lantai Baja Galvanis Berkecepatan Tinggi 28 Baris

Cocok untuk diolah:

Pelat baja warna

Lebar pelat:

1500mm

Jenis pemotongan:

Pemotongan hidrolik

Sistem Pengendalian:

PLC

Voltase:

380V 50Hz 3Phase

produktivitas:

15m/mnt

Nilai jual utama:

Umur layanan yang panjang

Menyoroti:

galvanized steel floor deck forming machine

15m/min floor deck forming machine

28rows deck floor roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

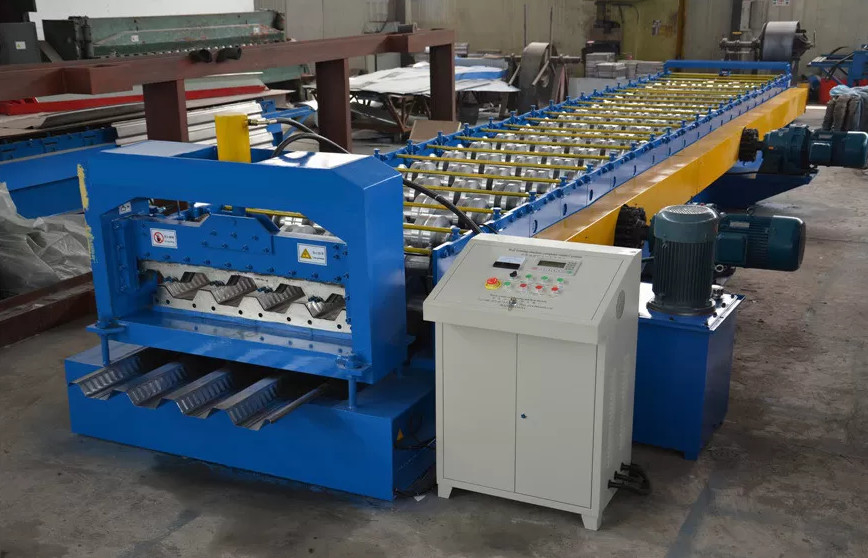

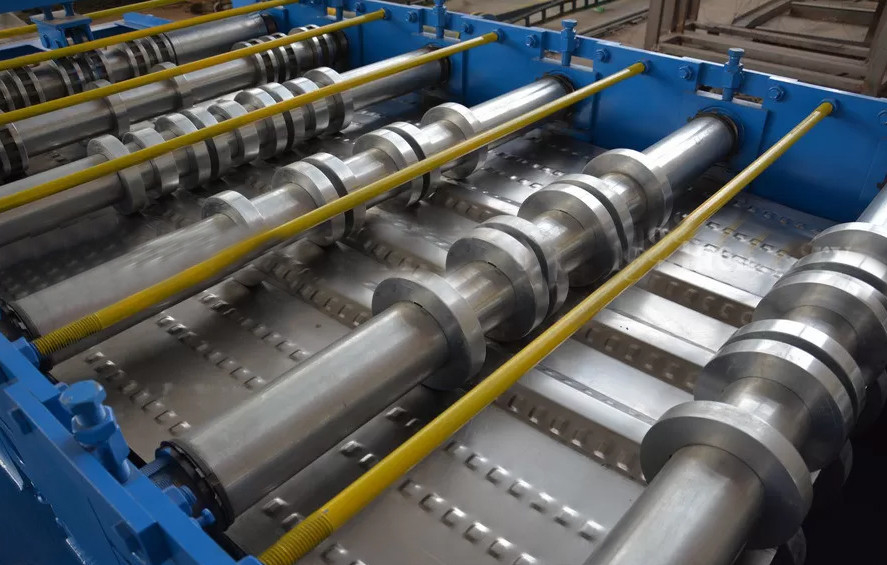

High Speed Galvanized Steel Floor Deck Roll Forming Machine 28 Rows

Floor deck machine is a kind of building material that combines steel bars welded into trusses with galvanized steel sheets (floor slabs).
In the engineering project, the steel truss floor slab can play its unique role in different stages.
For example, when people work on the project, it can more support the building materials and construction pressure;
This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.

Specification

No.	Main parameter of High Speed Galvanized Steel Floor Deck Roll Forming Machine Fully Automatic
1	Suitable to process	Color steel plate
2	Width of the plate	1500mm
3	Rollers	28 rows
4	Dimensions	127001.851.61m
5	Power	33+11.5kw
6	Rolling material	shaft bearing steel(quenching)
6	Thickness of the plate	1.5mm
7	Productivity	15m/min
8	Diameter of the roller	Φ100mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
