Name: Metal Cold PLC Floor Deck Machine Thickness 1.5mm 22kw
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: dek lantai
Price: 26,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Membentuk Rol Dek Lantai >

Metal Cold PLC Floor Deck Machine Thickness 1.5mm 22kw

thickness 1.5mm floor deck machine

plc steel deck roll forming machine

22kw floor deck machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

dek lantai

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Dingin Dek Lantai Logam Untuk Ketebalan 1.5mm 22KW

Ketebalan:

1.5mm

Jaminan:

1 tahun

Kecepatan:

10 m/mnt

Sistem Pengendalian:

PLC

Berat:

20t

Kecepatan pembentukan gulungan:

10-15/mnt

Menyoroti:

thickness 1.5mm floor deck machine

plc steel deck roll forming machine

22kw floor deck machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

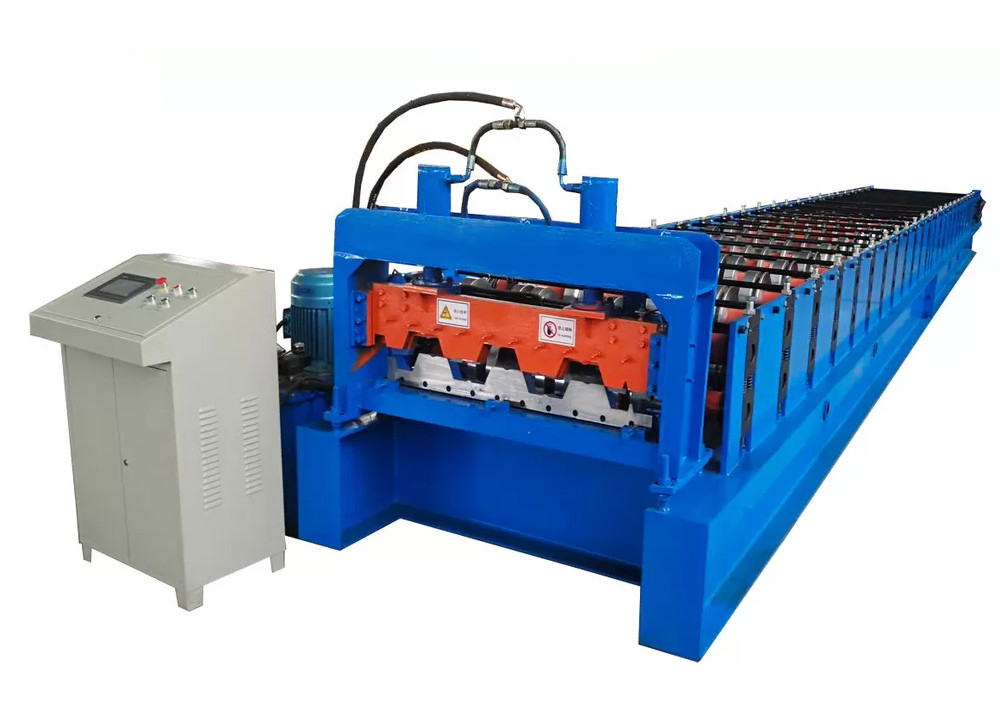

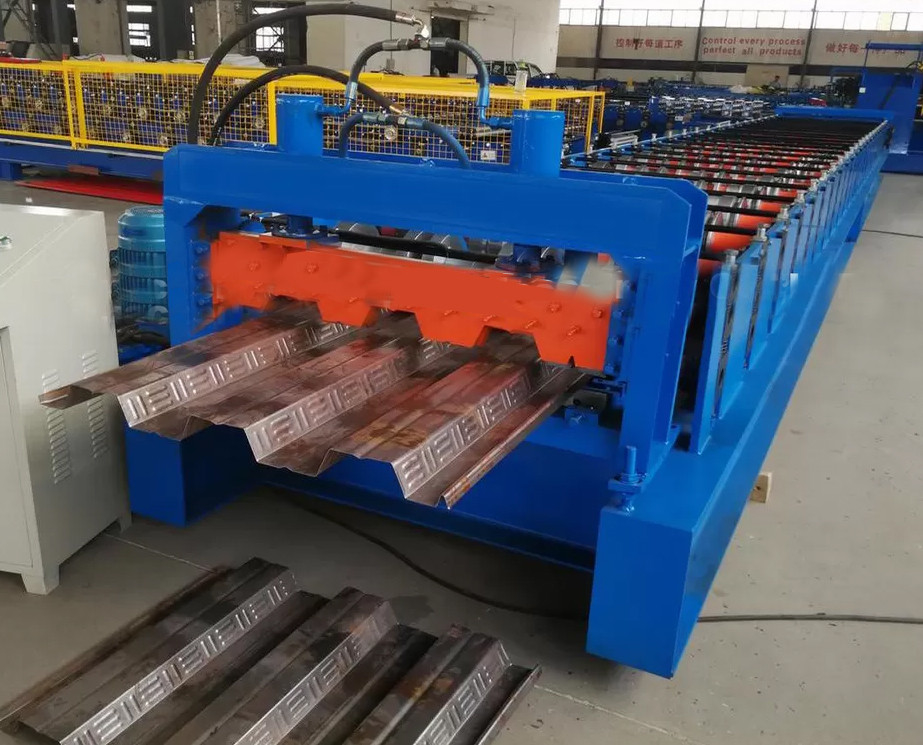

Metal Floor Deck Cold Roll Forming Machine For Thickness 1.5mm 22KW

Floor deck forming machine is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab.

Specification

No.	Main parameter of Floor Deck Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	1500mm
3	Rollers	28 rows
4	Dimensions	127001.851.61m
5	Power	33+11.5kw
6	Rolling material	shaft bearing steel(quenching)
6	Thickness of the plate	1.5mm
7	Productivity	15m/min
8	Diameter of the roller	Φ100mm
9	Voltage	380V 50Hz 3phases
10	Material of the cutting plate	Cr12
11	Hydraulic	40#
12	Processing precision	Within 1.00mm
13	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
