Galvanized Profile C10 Steel Roofing Roll Forming Machines Metal Computerised

galvanized steel roofing roll forming machines

profile steel roofing roll forming machines

computerised steel roof sheet making machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Logam Profil Baja Galvanis C10

Cocok untuk diolah:

Pelat baja warna

Bahan roller:

Baja tempa No.45 bermutu tinggi

Pisau Pemotong:

Baja cetakan CR12 dengan perawatan yang dipadamkan

Berat mesin:

4.5t

Rol:

45# baja

pisau pemotong:

CR12

Voltase:

380V 50Hz 3Phase

Menyoroti:

galvanized steel roofing roll forming machines

profile steel roofing roll forming machines

computerised steel roof sheet making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

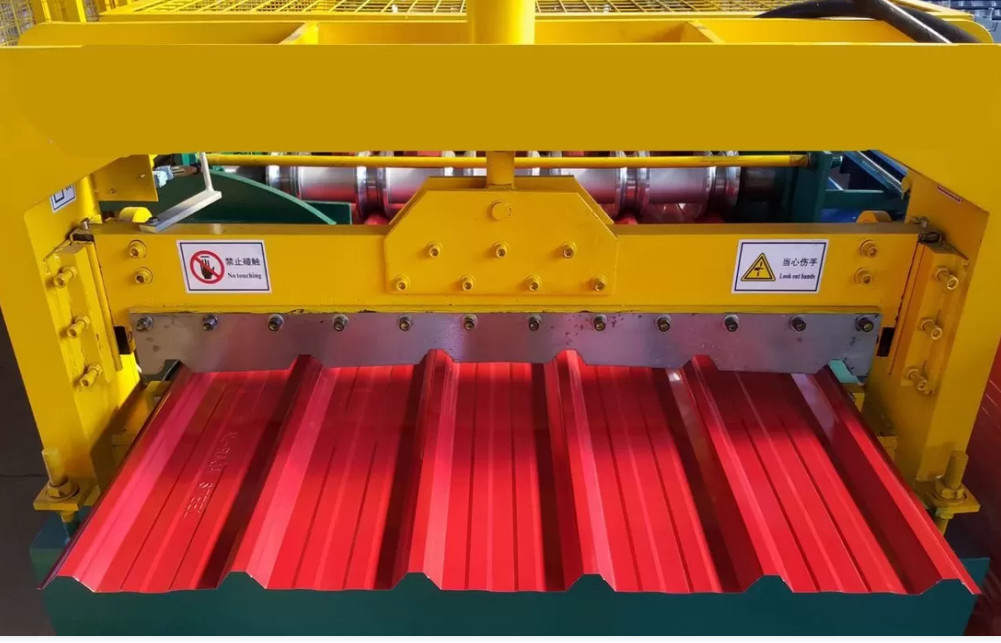

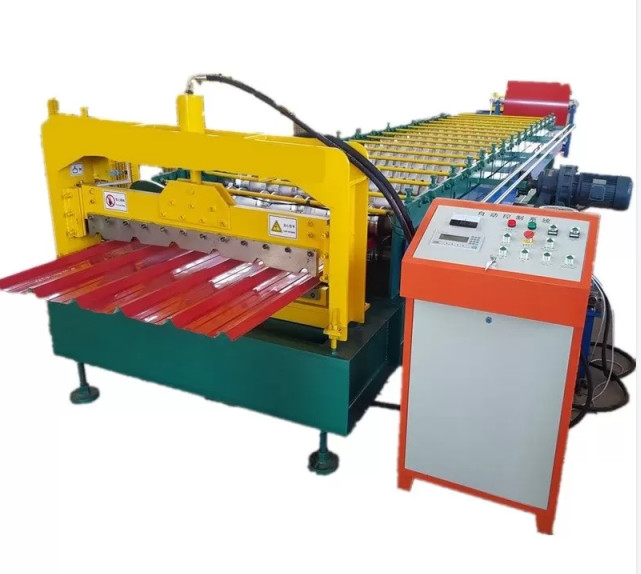

Galvanized Steel Profile Metal Roofing Roll Forming Machines C10

The equipment automatically set in accordance with the computer data to produce different lengths of finished products.there is the construction of the computer controller to set up multiple sets of different data,easy operate.

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.

Equipment Detailed Parameters:

Description		Specification
Main moter power		5.5KW
Hydraulic station power		4KW
Hydraulic oil pump		CB-E310
Sprocket		P-25.4
Roller station		14
Yield strength		32MPa
Diameter of principal axis		95MM
Material of roller		45#steel hard chrome plating
Processing speed		8m/min
Thickness		0.3-1mm
Installation dimension about(LWH)		7.51.51.2M
Total weight		3.8T

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
