686 Long Span Ibr Roof Sheet Forming Machine Q235 0.3mm

q235 ibr roof sheet forming machine

0.3mm ibr roof sheet forming machine

long span ibr roof sheeting machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

686

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

IBR 686 Rentang Panjang Q235 Lembaran Atap Mesin Roll Forming Logam 0.3mm

Cocok untuk diolah:

Pelat baja warna

Lebar pelat:

925mm

Rol:

16 baris

Ukuran:

9.1*1.45*1.51m

Bahan bergulir:

Baja 45 # (berlapis krom di permukaan)

Ketebalan pelat::

0,3-0,6 mm

Voltase:

380V 50Hz 3Phase

Menyoroti:

q235 ibr roof sheet forming machine

0.3mm ibr roof sheet forming machine

long span ibr roof sheeting machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

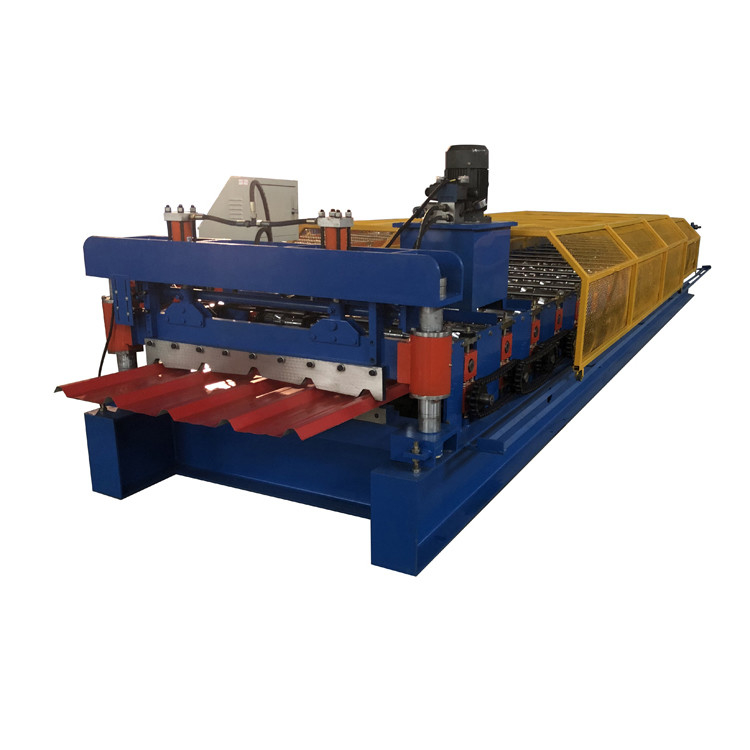

IBR 686 Long Span Q235 Roofing Sheet Roll Forming Machine Metal 0.3mm

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.

1. elegant appearance

2. high quality steel structure

3. One year free guarantee

4. lifelong maintain

5. Panasonic PLC

Equipment Detailed Parameters:

No.	Main parameter of Roof Sheet Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	925mm
3	Rollers	16 rows
4	Dimensions	9.11.451.51m
5	Power	4+4kw
6	Rolling material	45# steel(plated chrome on surface)
7	Thickness of the plate	0.3-0.6mm
9	Diameter of the roller	Φ66mm
10	Voltage	380V 50Hz 3phases
11	Material of the cutting plate	Cr12
12	Hydraulic	40#
13	Processing precision	Within 1.00mm
14	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
