Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

C Shape Garages Purlin Rolling Machine Automatic With Plc System

garages purlin rolling machine

plc system purlin rolling machine

galvalume automatic c purlin roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Purlin Bentuk C dengan Sistem PLC

Nilai jual utama:

Otomatis

Ketipisan bergulir:

0.3-0.8mm

Jenis pemotongan:

Pemotongan hidrolik

Sistem Pengendalian:

PLC

Voltase:

380v

Jaminan:

1 tahun

Menyoroti:

garages purlin rolling machine

plc system purlin rolling machine

galvalume automatic c purlin roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

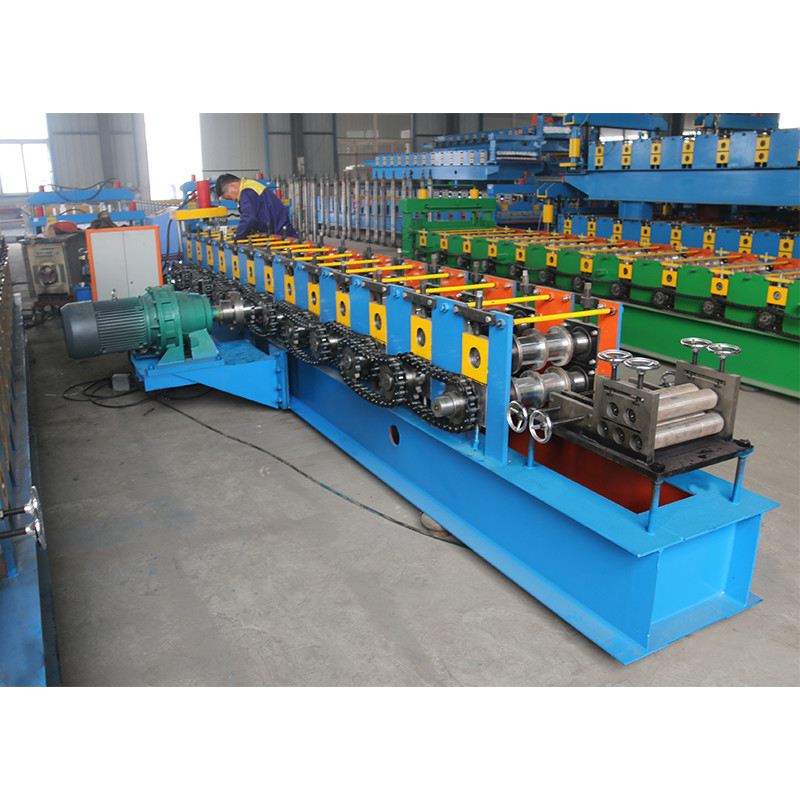

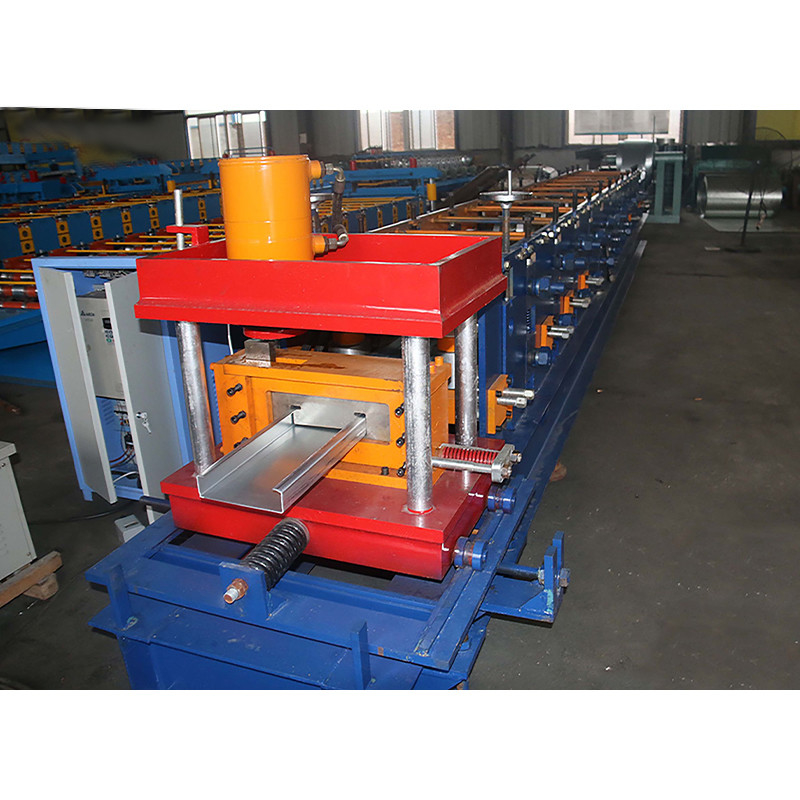

C Shape Purlin Roll Forming Machine with PLC System

C Purlins Roll Forming Machine can produce different size of the C purlin, when it produce different size of C purlin, it need need change the blade and rollers, just need adjust the rollers and cutting device. In this way to meet customer's different requirements. The structural C and Z purlins are used in industrial buildings, garages, verandas, and carports; or anywhere that strong reliable steel framing is required. Manufactured from quality galvanised steel, this is a fully integrated system allowing for flexible design options.

specifications

Main structure of the machine	400 H steel
Side panel of machine	20mm( A3 steel)
Rollers	18rollers+ leveling shaft+straightening shaft
Diameter of the shaft	Φ80mm
Rolling materials	GCr15(bearing steel)hard chrome plated after heat treatment (Bearing steel quenching)
Diameter of the shaft	Φ80mm
Shaft material	40Cr Modulation of heat treatment after polishing hard chromium plating
Operating Mode	Automatic CZ Free Replacement By Motor Drive
Main Motor size	Hydraulic Motor pump station 25Kw
Material of the cutting blade	Cr12,Quenched treatment 58℃-60℃

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
