Name: Corrugated Three Layer Color Steel Roll Forming Machine Full Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bertemu Ubin / Ubin Mengkilap
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Corrugated Three Layer Color Steel Roll Forming Machine Full Automatic

corrugated color steel roll forming machine

fullautomatic color steel roll forming machine

three layer corrugated roll former

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin roll forming tiga lapis Otomatis penuh

Jenis ubin:

Baja Berwarna

Voltase:

380V 50HZ 3 Fase atau Lainnya

Komponen inti:

Motor, Pompa, PLC

Tenaga Motorik:

4KW

pisau pemotong:

Cr12Mov dengan perlakuan quenching

Sistem pemotongan:

Sistem pemotongan hidrolik setelah pembentukan

Dimensi (P*L*T):

7000mm*1500mm*1700mm

Ketipisan bergulir:

0.3-0.8mm

Sistem Pengendalian:

Sepenuhnya otomatis

Menyoroti:

corrugated color steel roll forming machine

fullautomatic color steel roll forming machine

three layer corrugated roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/C, T/T, D/A, D/P.

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

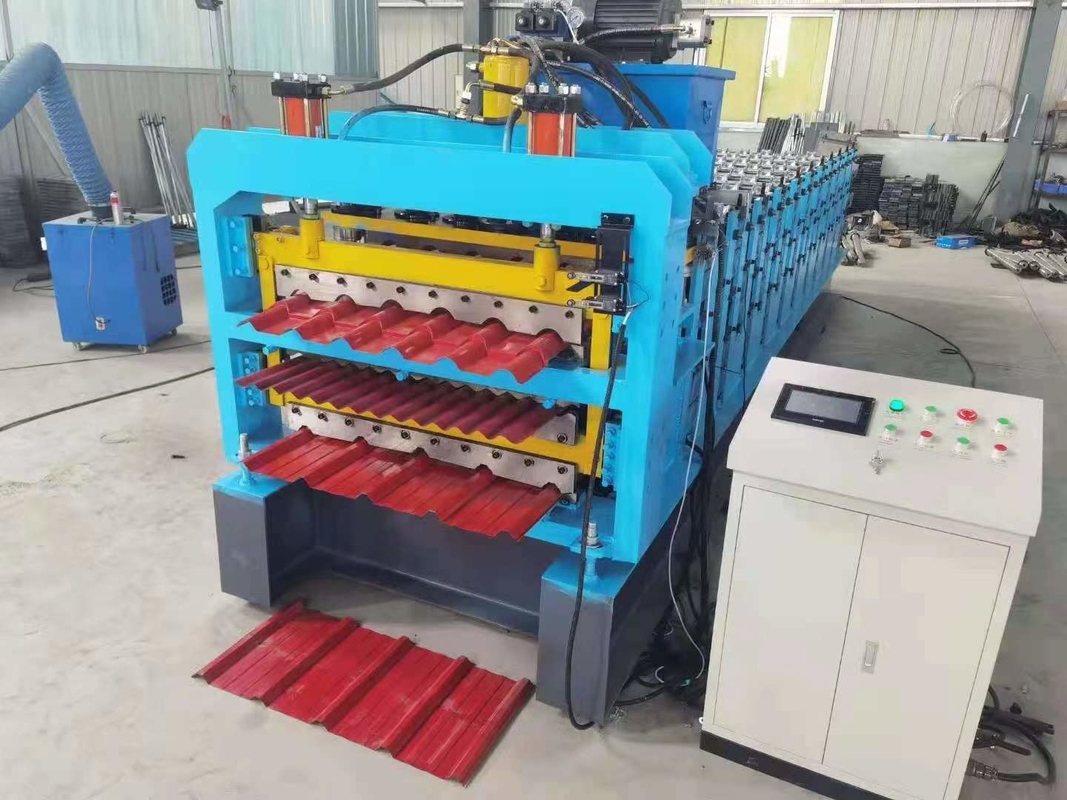

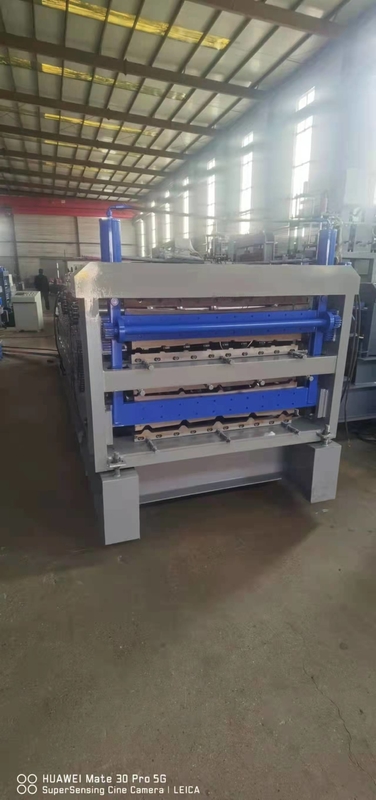

Three layer roll forming machine Full automatic

Color painted steel three layer roofing roll forming machine is mainly producing steel roof/ wall sheet .The final products have three types, corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

Specification

Processing material	Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
Processing thickness (mm)	0.3-1.0mm or as your customized
Material of rollers	High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
Material of shafts	45# steel
Diameter of shafts	70mm or as your customized
Forming speed	8-12 m/min or as your customized
Under frame	350 H-beam
Sidewall	16mm
Connect bar	25mm, zinc plated
Forming steps	10-18 or as your customized
Control system	Delta PLC and Inverter
Suitable power	380V, 50 Hz, 3 phase or according to your need
Drive mode	Chain and sprocket, chain size 1 inch
Main motor	3-5.5kw
Hydraulic pump station	3-5.5kw
Cutting model	Hydraulic profile cutting
Dimension of the machine	7.5m-11m×1.5mm×1.2m
Weight of the machine	3.5 ton -6 ton

2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
