Name: Panel 4kw Ibr Roof Machine Corrugated Metal Steel Glazed Tile Sheet Three Layer
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bertemu Ubin / Ubin Mengkilap
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Panel 4kw Ibr Roof Machine Corrugated Metal Steel Glazed Tile Sheet Three Layer

4kw ibr roof machine

three layer ibr roof machine

ibr corrugated roof tile making machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Lembar Atap Genteng Mengkilap Baja Logam Bergelombang Panel IBR Tiga Lapisan

Jenis ubin:

Baja Berwarna

Voltase:

380V 50HZ 3 Fase atau Lainnya

Komponen inti:

Motor, Pompa, PLC

Tenaga Motorik:

4KW

pisau pemotong:

Cr12 dengan Perlakuan Panas

Sistem pemotongan:

Sistem pemotongan hidrolik setelah pembentukan

Nilai jual utama:

Umur layanan yang panjang

Ketipisan bergulir:

0.3-0.8mm

Bingkai utama:

Baja 350H

Menyoroti:

4kw ibr roof machine

three layer ibr roof machine

ibr corrugated roof tile making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

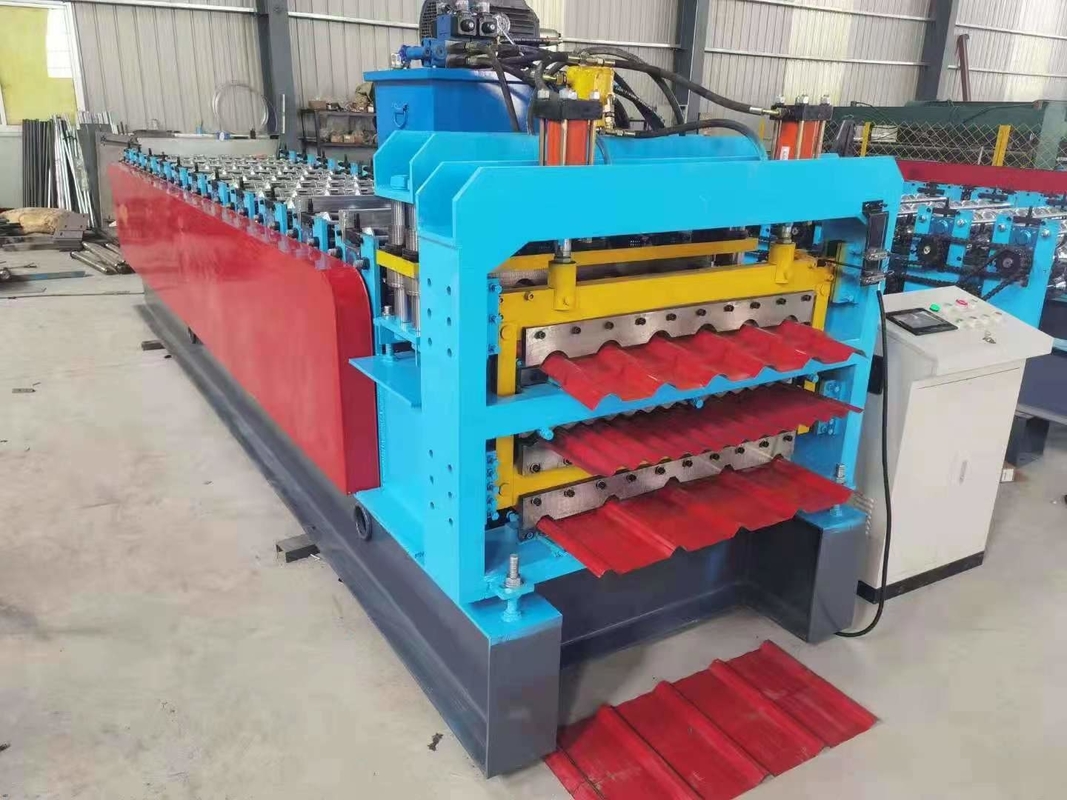

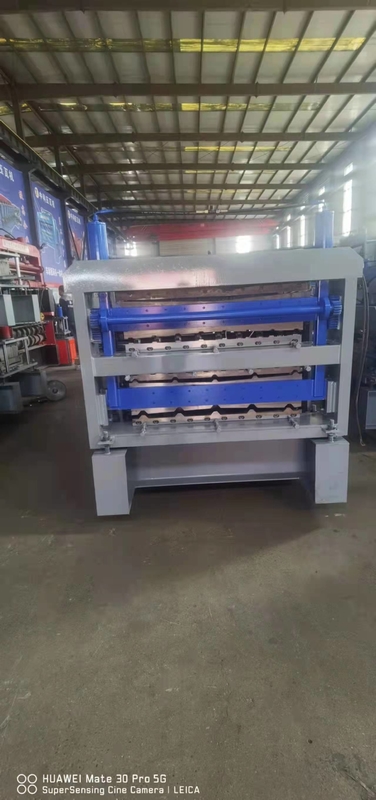

IBR Panel Corrugated Metal Steel Glazed Tile Roofing Sheet Machine Three Layer

Color painted steel three layer roofing roll forming machine is mainly producing steel roof/ wall sheet .The final products have three types, corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.

Specification

1	Type	Colored steel plate, galvanized steel, aluminum plate ect
2	Key Selling Points	Easy to Operate
3	Feeding width	1220mm
4	Control System	Panasonic/Siemens PLC& transducer
5	Diameter of the axle	80 mm
6	Side board thickness	16mm
7	Shaft material	45# Steel , Heat treatment , Polishing
8	Weight	3000 kg

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
