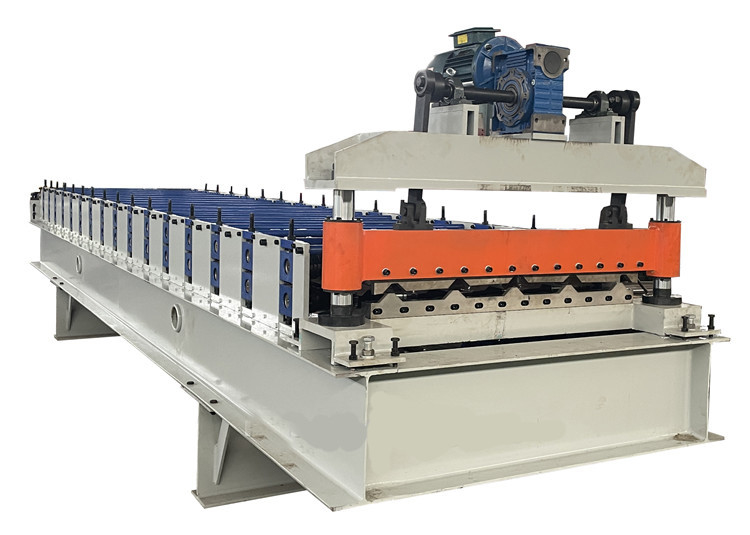

Metal Roof PPGI Detla Sheet Roll Forming Machine

380v 60 hz sheet roll forming machine

detla sheet roll forming machine

ppgi roofing sheet roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Lini Produksi Roll Forming Lembaran Atap Logam Amerika Selatan

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium, Tembaga

Voltase:

380V 60 Hz atau sesuai kebutuhan klien

Kapasitas Produksi:

8-20 m/menit

Ketipisan bergulir:

0.3-0.8mm

Berat:

4500 kg

Bahan roller:

Baja 45# dengan krom 0,05mm

Sistem Pengendalian:

Sistem PLC(detla).

Menyoroti:

380v 60 hz sheet roll forming machine

detla sheet roll forming machine

ppgi roofing sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

South America Metal Roof Sheet Roof Sheet Roll Forming Production Line

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine for Wall and Roof is very popular in the world, it play a fairly important role in the steel struction building. With these roof tile,840 trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1000mm /1200mm / 1250mm. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm. it can protect your roof of house well.

Specification

Part details	Item Name	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	Roller station	11
	Shaft diameter	70 mm
	Shaft material	45# steel with 0.05mm chrome
	Roller material hardness 30-40 HRC	45# steel with 0.05mm chrome
	Machine size	About 6.2×1.5×1.3 m
	Machine weight	About 4.5 ton
	Machine color	As customer' request
	Working speed	8-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1 mm
	Material	Cr 12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main power	4 kw
	Pump power	3 kw
	Voltage	380v/50HZ,3P or customize as customer' request
Control system	PLC brand	Delta made in Twaiwan
	Screen	Touchable screen
	Language	Chinese and English or add language as customer need

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
Guarantee

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
