Touchscreen 105 Dura Metal Palisade Fence Roll Forming Machine Automated

Touchscreen 105 Dura Metal Palisade Fence Roll Forming Machine Automated

palisade fence roll forming machine

touchscreen fence roll forming machine

automated fence post roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Bingkai pintu

Hubungi Kami
Minta Penawaran Harga
Touchscreen 105 Dura Metal Palisade Fence Roll Forming Machine Automated
Touchscreen 105 Dura Metal Palisade Fence Roll Forming Machine Automated Touchscreen 105 Dura Metal Palisade Fence Roll Forming Machine Automated
Detail Produk
Nama Produk:
105 Mesin Roll Forming Pagar Palisade Logam Dura Otomatis
Voltase:
380V 50Hz 3Phase
Berat:
3700kg
Komponen inti:
Motor, Bantalan, Pompa, PLC, Layar sentuh
Bingkai utama:
baja 350 jam
Kapasitas Produksi:
12-18 m/mnt
Stasiun roller:
18 stasiun
Menyoroti:

palisade fence roll forming machine

,

touchscreen fence roll forming machine

,

automated fence post roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

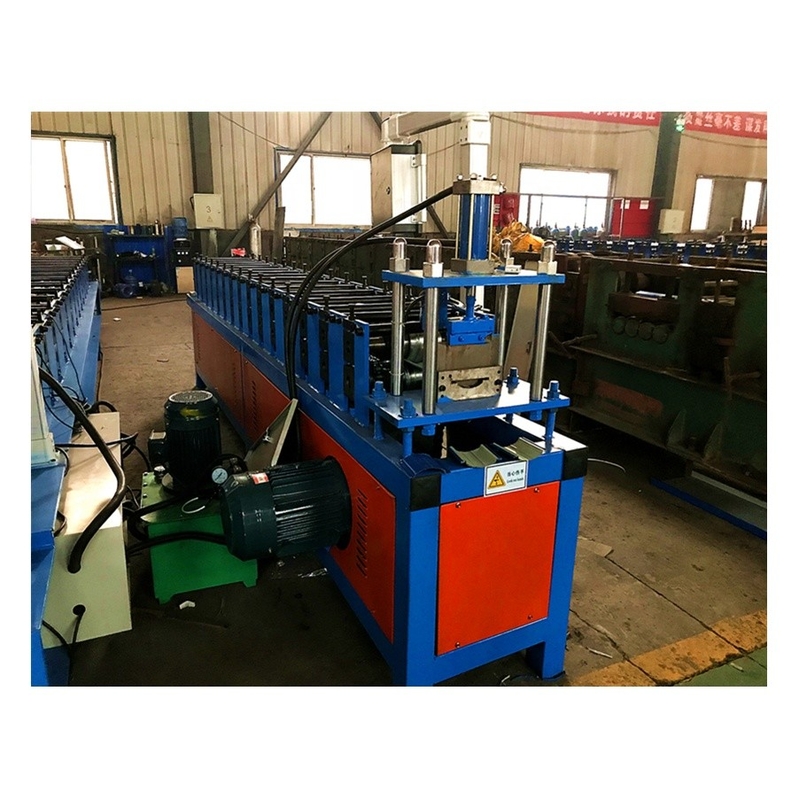

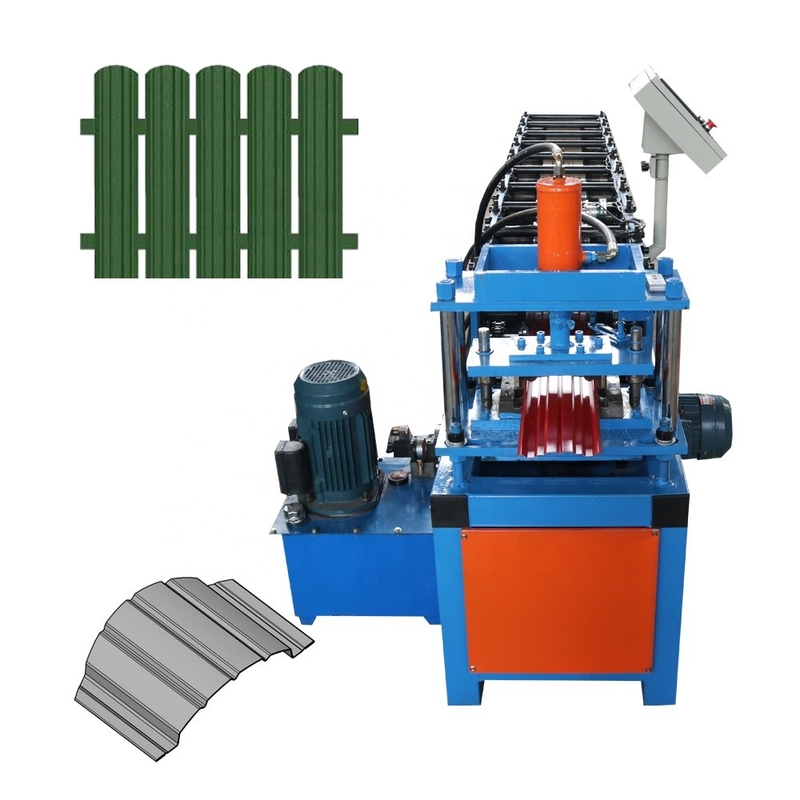

105 Dura Metal Palisade Fence Roll Forming Machine Automated



The advantage of 105 dura metal palisade fence roll forming machine

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.



Specification

No.
105 dura metal palisade fence roll forming machine
1
Suitable to process
Color alu-zinc steel strips
2
Roller
15 Rows plus leveling device
3
Dimensions
5.8*1*1.5m
4
Motor Power
3Kw
5
Pump Station Motor
4Kw.Lichao Brand
6
Thickness of the plate
0.3-0.8mm
7
Productivity
10-15m/min
8
Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
9
Diameter of the roller
Φ70mm
10
Weight
About 2600kgs
11
Main structure of the machine
Square steel frame
12
Processing precision
Within 1.0mm
13
Side panel of machine
16mm
14
Chain Wheel and Cycle Chain
1 Inch
15
Voltage
380V 50Hz 3phases or as customer's need
16
Control system
PLC control (Delta)
17
Frequency system
Delta
18
Drive mode
Gear driver
19
Touch screen
Delta
20
Rolling materials
45# forging steel with chromium plate
21
Length Tolerance
±2mm


Application



The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, factories, mining enterprises and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground, it plays a role of convenient and quick opening of the door. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, hangar doors, etc.



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
