Metal Profile Chain Driving Cz Purlin Roll Forming Machine Small Automatic

small cz purlin roll forming machine

cz purlin roll forming machine automatic

chain driving cz purlin machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Logam C Profil Purlins Mesin Roll Forming Kecil Otomatis

Berat:

Sekitar 4,5 Ton

Kapasitas:

8-12 m/mnt

Jenis pemotongan:

Pemotongan hidrolik

Sistem Pengendalian:

PLC

Nilai jual utama:

Otomatis

Ketipisan bergulir:

1-3mm

Menyoroti:

small cz purlin roll forming machine

cz purlin roll forming machine automatic

chain driving cz purlin machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

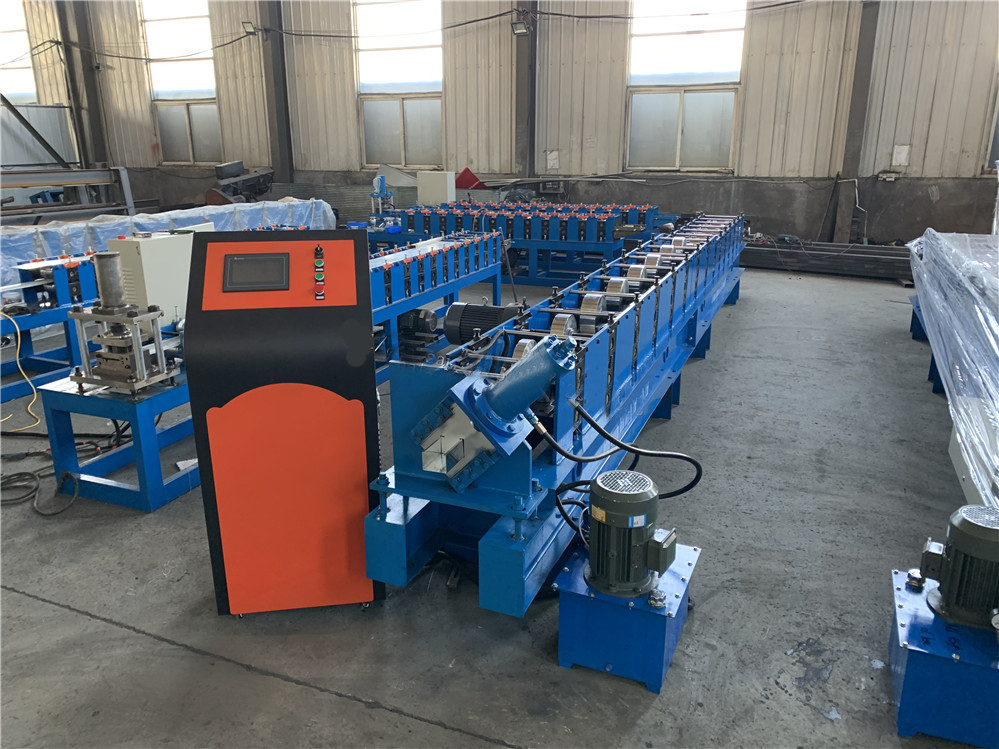

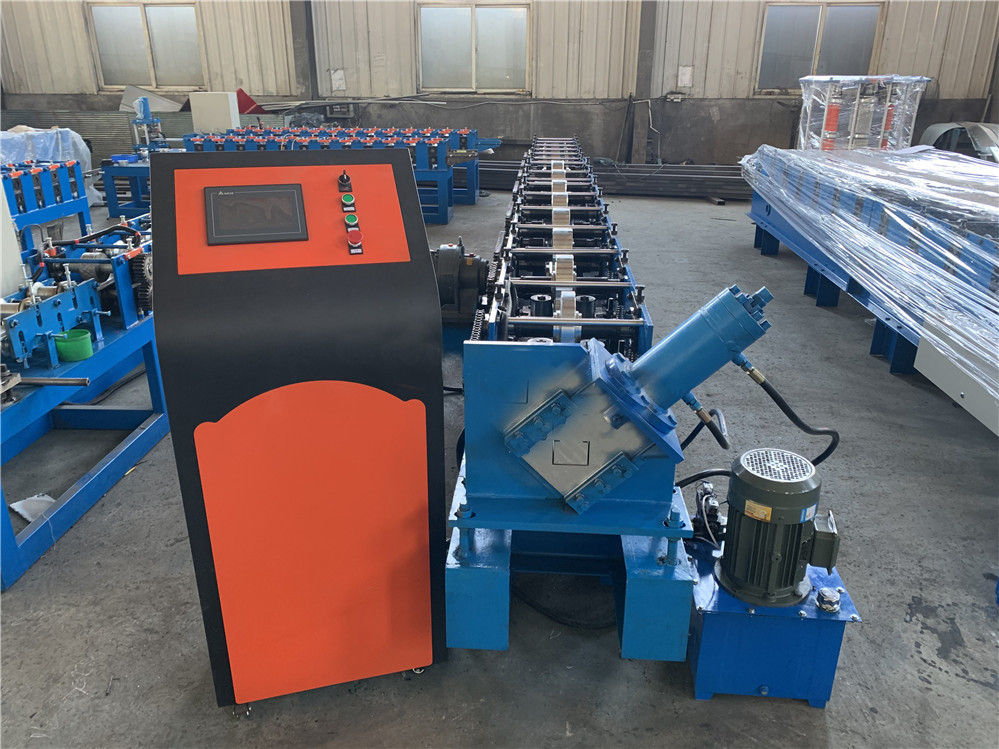

Metal C Profile Purlins Roll Forming Machine Small Automatic
his C Purlins Roll Forming Machine can produce different size of the C purlin, when it produce different size of C purlin, it need need change the blade and rollers, just need adjust the rollers and cutting device. In this way to meet customer's different requirements. The whole line of Multy Size Galvanized Steel C Channel Purlin Roll Forming Machine mian inculd five part, they are decoiler, main roll forming machine , PLC control system, Cutting system and product receiving table.C purlin is widly used in large-scal steel structure, such as warehouse, workshop and so on. It has a large marke

specifications

No.	Type		Specification
1	Row Material	Type	Colored steel plate, galvanized board
		Feeding width	According to the size of C purlin
		Thickness	1.5-3mm
2	Main body	Roller station	15 steps (According to the profile)
		Diameter of shaft	90mm
		Shaft material	45# Steel
		Roller material	45# Steel
		Frame	300mm H Steel
		Frame thickenss	16 mm
		Operation	Manual and Automatic
		Working speed	8-12 m/min
		Size (LWH)	About 76009501510mm
		Weight	About 4.5 Tons
		Cutting type	Hydraulic cutting
		Material of blade	Cr12
3	Power	Motor power	7.5 kw
		Hydraulic power	5.5 kw
		Voltage	380V 50Hz 3phases or Customerization
		Driving way	By Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
