Name: 7/8 Roof Roll Forming Machine Corrugated Galvanized Metal Automatic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bertemu Ubin / Ubin Mengkilap
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

7/8 Roof Roll Forming Machine Corrugated Galvanized Metal Automatic Cutting

galvanized roof roll forming machine

automatic cutting roof roll forming machine

corrugated roofing sheet roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

7/8 Mesin Atap logam galvanis bergelombang pemotongan otomatis

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium, Tembaga

Voltase:

380V 60 Hz atau sesuai kebutuhan klien

Kapasitas Produksi:

8-12 meter/menit

Ketipisan bergulir:

0.3-0.8mm

Sistem Pengendalian:

Kotak kontrol PLC

Komponen inti:

Motor, Pompa, Gearbox, PLC

Cutting Blade Material:

Cr12Mov dengan perlakuan quenching

Nilai jual utama:

Umur layanan yang panjang

Menyoroti:

galvanized roof roll forming machine

automatic cutting roof roll forming machine

corrugated roofing sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

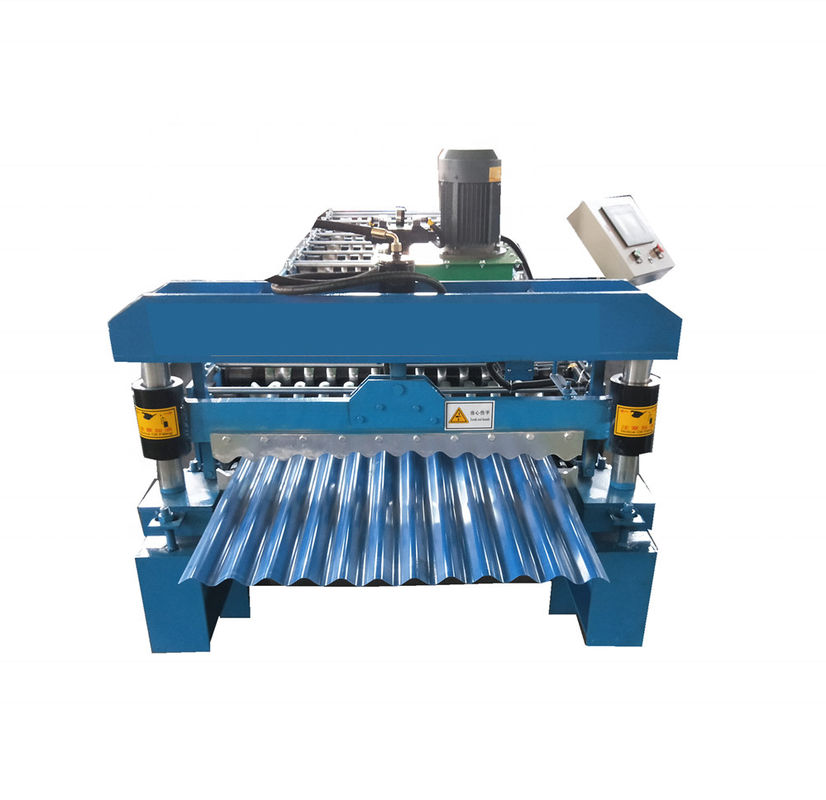

7/8 Corrugated galvanized metal Roofing machine automatic cutting

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine for Wall and Roof is very popular in the world, it play a fairly important role in the steel struction building. This machine can produce very beautiful and durable roof tile, With these roof tile, it can protect your roof of house well.

Specification

No.	Type		Specification
1	Row Material	Type	Aluminum / Steel / Galvanized Panel
		Feeding width	According to client's requirement
		Thickness	0.3-0.7 mm
2	Main body	Roller station	13 Steps (According to the profile)
		Diameter of shaft	75mm
		Shaft material	45# Steel
		Roller material	45# Steel
		Frame	300mm H Steel
		Frame thickenss	18 mm
		Operation	Manual and Automatic
		Working speed	8-12 m/min
		Size (LWH)	About 760015501510mm
		Weight	About 3.5 Tons
		Cutting type	Hydraulic cutting
		Material of blade	Cr12, HRC60-62°C
3	Power	Motor power	4 kw
		Hydraulic power	4 kw
		Voltage	380V 50Hz 3phases or Customerization
		Driving way	By Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
