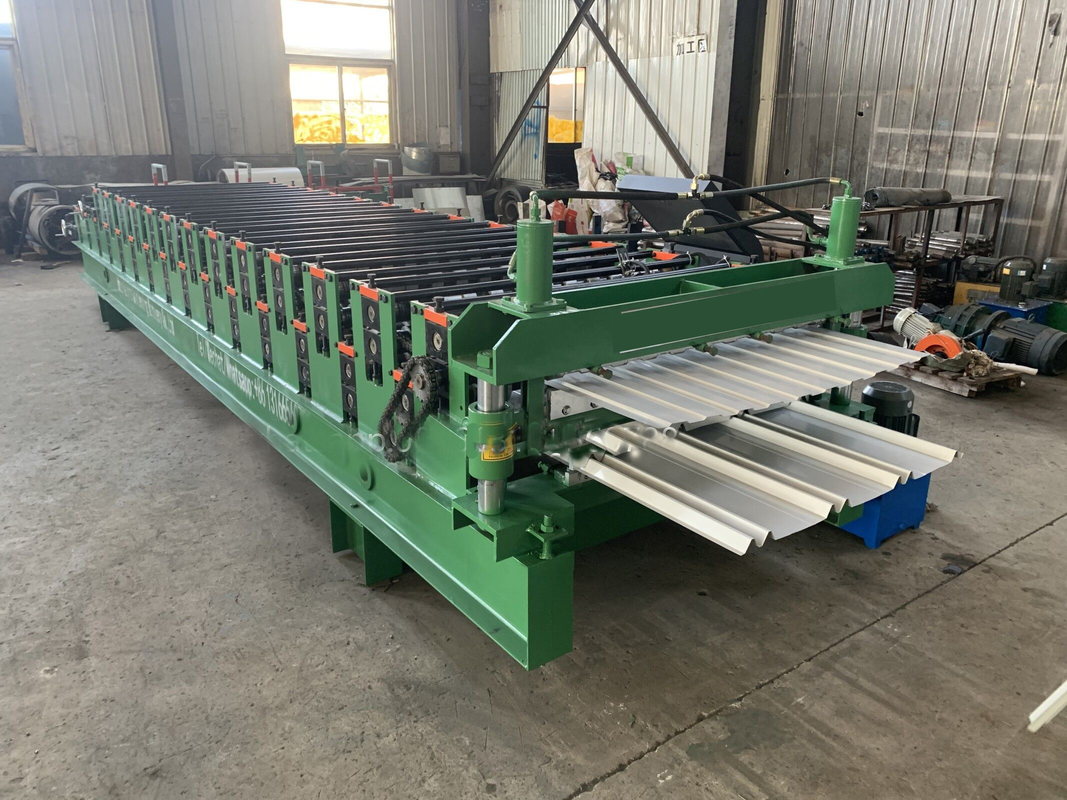

Ibr Corrugated 12m/Min Roof Panel Roll Former Double Layer

Ibr Corrugated 12m/Min Roof Panel Roll Former Double Layer

12m/min double layer roll forming machine

roof panel roll former double layer

corrugated roof panel roll former

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

840/850

Hubungi Kami
Minta Penawaran Harga
Ibr Corrugated 12m/Min Roof Panel Roll Former Double Layer
Ibr Corrugated 12m/Min Roof Panel Roll Former Double Layer Ibr Corrugated 12m/Min Roof Panel Roll Former Double Layer
Detail Produk
Bahan mentah:
Lembaran PPGI/Galvanis
Kapasitas Produksi:
8-12 m/mnt
Dimensi (P*L*T):
Sekitar 8600mm*1550mm*1510mm
Ketipisan bergulir:
0.3-0.8mm
Jenis pemotongan:
Pemotongan hidrolik
Komponen inti:
Motor, Pompa, PLC
Berat:
7000 kg
Voltase:
380V 50Hz 3 Fase Atau Pelangganisasi
Menyoroti:

12m/min double layer roll forming machine

,

roof panel roll former double layer

,

corrugated roof panel roll former

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
30 set per bulan
Produk terkait
Harga bagus 2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine on line Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory priceDouble Layer Roof sheetForming Machine on line Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

IBR And Corrugated Double Layer Roll Forming Machine For Sri Lanka


Double Layer Aluminium Roofing Sheet Roll Forming Machine can produce two different shape of metal roof tile. In this way, it can save cost and space . If customer's capital and space of workshop are limited, this machine will be a best choose . This machine suitable both Aluminium and colour steel, as to the aluminium is very soft, it need high accuracy of rollers and cutter to make sure the finished roof tile perfect..


 Detailed Parameters:



No. Type Specification



1



Raw Material

 Type Colored steel plate, galvanized board
Feeding width According to requirement
Thickness 0.3-0.8mm





2





Main body

 Roller station Up layer 12 steps , down layer 16 steps (According to the profile)
Diameter of shaft 75mm
Shaft material 45# Steel
Roller material 45# Steel
Frame 350H steel
Frame thickenss 18 mm
Operation Manual and Automatic
Working speed 8~12 m/min
Size (L*W*H) About 9600*1550*1510mm
Weight About 9 Tons
Cutting type Hydraulic cutting
Material of blade Cr12
3 Power Motor power 5.5 kw
Hydraulic power 4 kw
Voltage 380V 50Hz 3phases or Customerization
Driving way By Chain



Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received



Ibr Corrugated 12m/Min Roof Panel Roll Former Double Layer 0
