Name: Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 840/850
Price: 15000.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming double layer >

Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof

versatile trapezoidal roll forming machine

0.3mm trapezoidal roll forming machine

0.3mm metal roof roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

840/850

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Bahan mentah:

Lembaran PPGI/Galvanis

Kekuatan total:

9,5 kW

Merek sistem kendali:

Delta atau sesuai kebutuhan

Bahan roller:

45 # baja Berlapis Krom

Ketebalan kerja:

0,3-0,7mm

Komponen inti:

Motor, Pompa, PLC

Berat:

5500 kg

Voltase:

380V atau sesuai kebutuhan

Menyoroti:

versatile trapezoidal roll forming machine

0.3mm trapezoidal roll forming machine

0.3mm metal roof roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

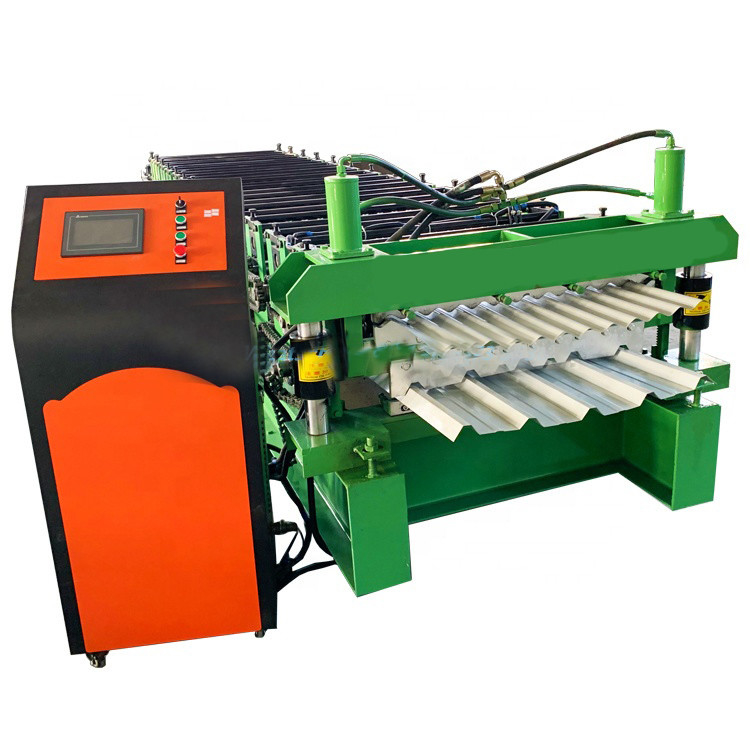

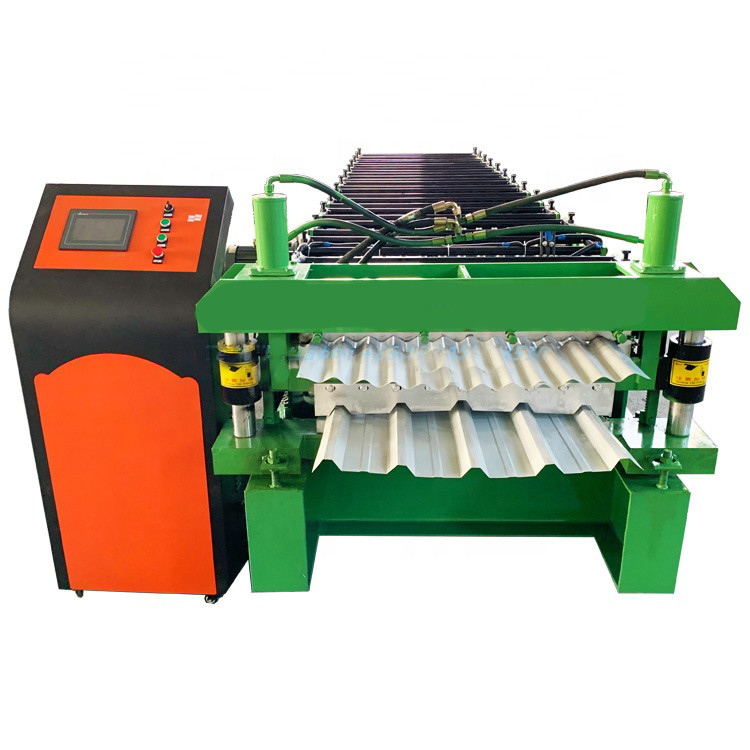

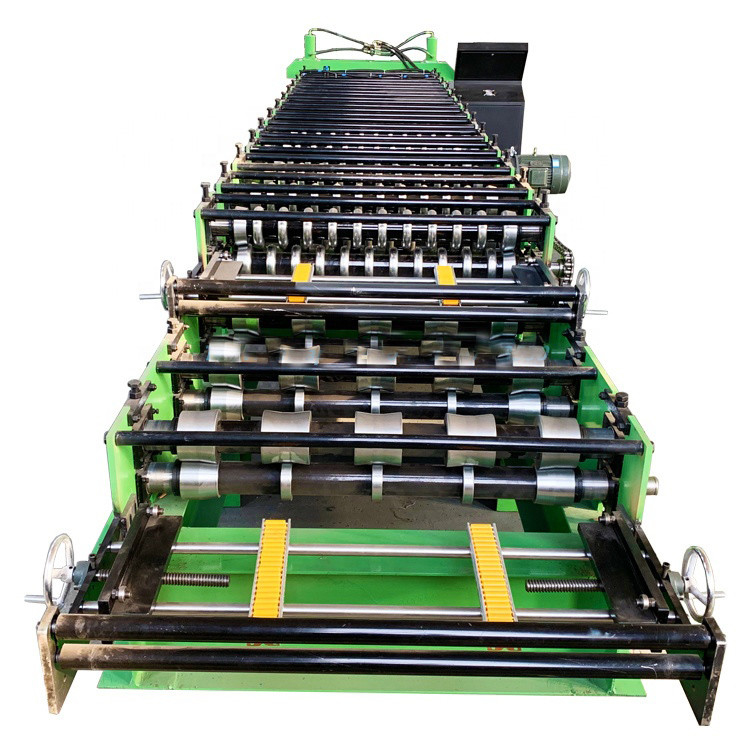

Double Layer Trapezoidal Metal Roofing Machine Versatile

The double layer rollformer produces a dual profile on the same machine, sharing the same de-coiler, drive trains and motors, but using different rolls and different cut offs.

The double layer machine is particularly useful where operating or storage space is a problem. Double layer roofing panel roll forming machine can make two different roof design one machine , you can choose different roof collocations, IBR profile and Corrugated profile,Step tile and trapezoidal,Step tile and corrugated or Glazed tile and IBR ,Glazed and Corrugated profile.
Detailed Parameters:

Metal material thickness	0.3 - 0.7mm
Metal material width	925mm or as client require
Roller Stage	13+15 rows
Roller Material	45# forging steel with chromium plate
Diameter of shaft	Φ70mm
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H beams
Side Panel of Machine	16mm
Chain	1.2 inch
Motor power	5.5 kw
Hydraulic pump power	4 kw
Productivity	8-12 meters per minute

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received
