Painted Steel Tr5 0.8mm Roof Tile Roll Forming Machine

0.8mm roof tile roll forming machine

tr5 roof tile roll forming machine

painted steel roof roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Genteng Atap Tr5 Baja Dicat Untuk Kamerun

Komponen inti:

Motor, Pompa, PLC

Voltase:

380V 50Hz 3 Fase Atau Pelangganisasi

Jenis pemotongan:

Pemotongan hidrolik

Diameter poros:

75mm

Sistem Pengendalian:

Sepenuhnya otomatis

Ketipisan bergulir:

0.3-0.8mm

Nilai jual utama:

Otomatis

Kapasitas Produksi:

8-12 m/mnt

Menyoroti:

0.8mm roof tile roll forming machine

tr5 roof tile roll forming machine

painted steel roof roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

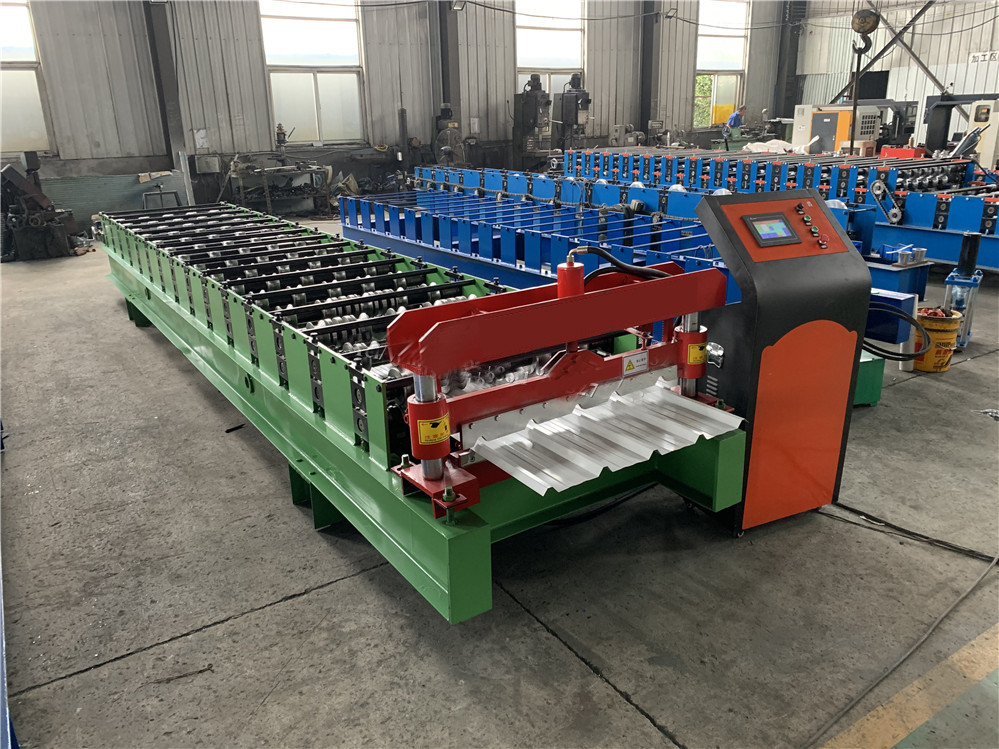

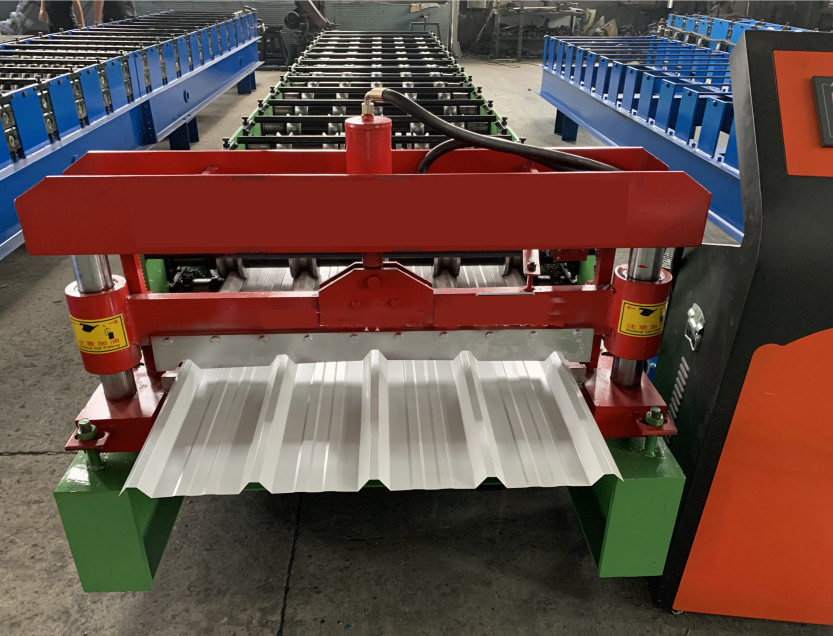

Painted Steel Tr5 Roofing Tile Roll Forming Machine For Cameroon

The trapezoidal metal roofing making machine used fully automatic control system,It has the characteristics of high output and high quality.
The Painted Steel Tr5 Roofing Tile Roll Forming Machine For Cameroon is a affordable metal roofing machine . This roof machine include the decoiler , feeding table , main machine , cutting device , plc control box , oil pump and receving table .
The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls,And durability.

Specification

Feeding width	1000 mm (According to the profile)
Thickness	0.3-0.8mm
Roller Stage	16 rows
Roller Material	45# forging steel with chromium plate
Roller station	15 steps (According to the profile)
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	350H beams
Side Panel of Machine	16mm
Chain	1.2 inch
Motor power	4 kw
Hydraulic pump power	4 kw
Voltage	380V 50Hz 3phases or Customerization

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
