Prepainted Galvanized Steel Floor Deck Roll Forming Machine

prepainted floor deck roll forming machine

galvanized floor deck roll forming machine

prepainted deck floor roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Produsen Garis Roll Forming Decking Lantai Baja Galvanis

Ukuran:

380v/50hz,3 fase atau sesuai permintaan Anda

Berat:

8000KG

Jenis pemotongan:

Pemotongan hidrolik

Sistem Pengendalian:

Motor, Pompa, Mesin, PLC

Nilai jual utama:

Umur layanan yang panjang

Lebar makan:

1200mm

Bahan rol:

Baja #45 dengan lapisan krom keras

cara memotong:

Pemotongan hidrolik

Ketipisan bergulir:

0.8-1.5mm

Menyoroti:

prepainted floor deck roll forming machine

galvanized floor deck roll forming machine

prepainted deck floor roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Galvanized Steel Floor Decking Roll Forming Lines Manufacturer

The steel floor deck roll forming machine is used to produce high-quality steel floor decks. The steel floor deck is also called floor bearing steel plate. This kind of floor deck is applied in supporting concrete or insulating membrane of a roof. It is developed to provide a structurally efficient product for use in roof and floor systems. The floor has the fllowing features: high peak and high strength with a low cost.

Specification

Suitable Material
Material Width		1000/1250mm
Effective Width		600/850/915 mm
Material Thickness		0.8-1.5mm
Material Type		Galvanized Steel Strip,Prepainted Galvanised Steel
Yeild Strength		245Mpa
Main Machine
Size shaft diameter		95mm
Wall Panel Thickness		18mm
Base Specification		H446*199
Main Motor		37KW hydraulic system
Forming Speed		0-10m /min
Forming Station		33 Stations
Blade Material		Cr12(Die Steel)
Roller Material		45# steel,CNC lathes, Heat Treated,hard Chrome Coated
Mode of Speed Regulation		AC Inverter Speed Regulation
Driving Mode		Reduction Motor + Chain Transmission
Cutting Mode		Hydraulic Type,Post-cutting
Cutting Motor		Hydra station/hydraulic motor
Measuring Mode		Photoelectric Encoder
Control Mode		PLC
Operation Mode		Button+Touch Screen
Voltage		380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph
Dimension		15 M1.5M1.3M
Machine Weight		16500KG(15500KG)

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

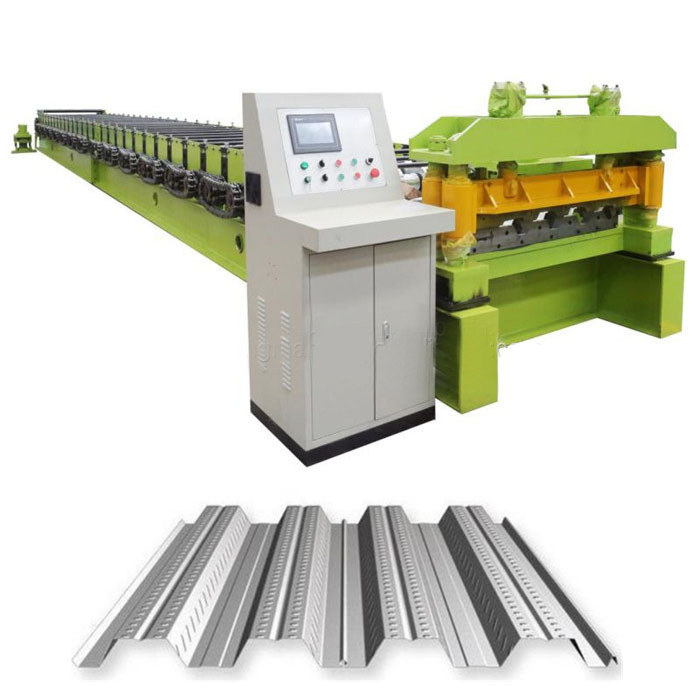

Prepainted Galvanized Steel Floor Deck Roll Forming Machine 0
