Profile 1.2MM Deck Floor Roll Forming Machine With Pressing Dot

1.2mm deck floor roll forming machine

profile deck floor roll forming machine

pressing dot floor deck forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Profil B Deck Populer di Pasar AS Dengan Titik Penekan

Ukuran:

380V/50HZ/3FASE, 220V/380V/415V/440V/disesuaikan

Ketipisan bergulir:

0,8-1,2mm

Jenis pemotongan:

Pemotongan hidrolik

Sistem Pengendalian:

PLC

Poros:

Baja Padat 82mm

Kapasitas Produksi:

18 m/mnt

Nilai jual utama:

Umur layanan yang panjang

Menyoroti:

1.2mm deck floor roll forming machine

profile deck floor roll forming machine

pressing dot floor deck forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

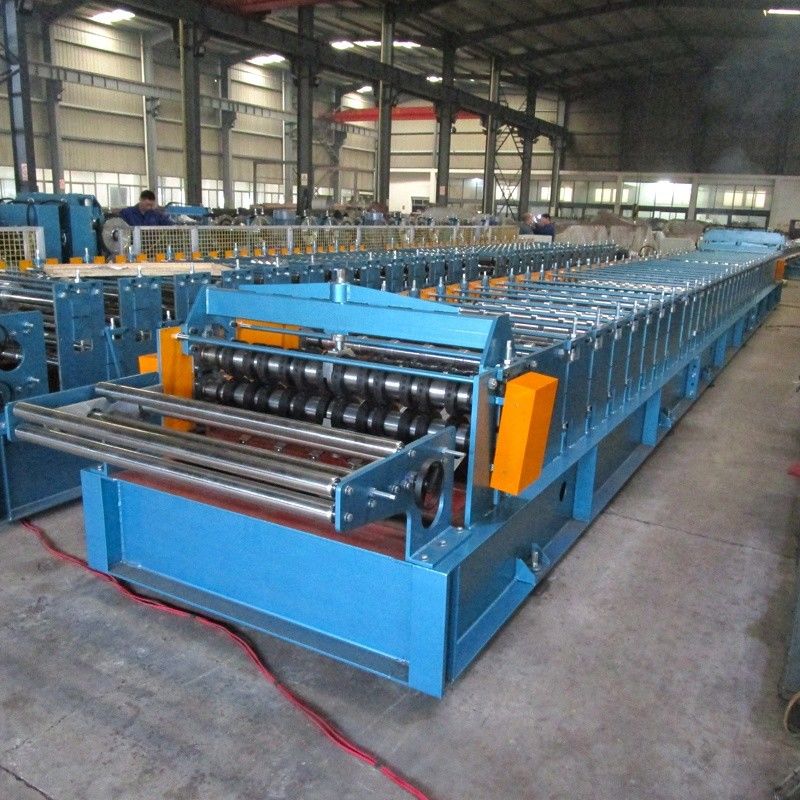

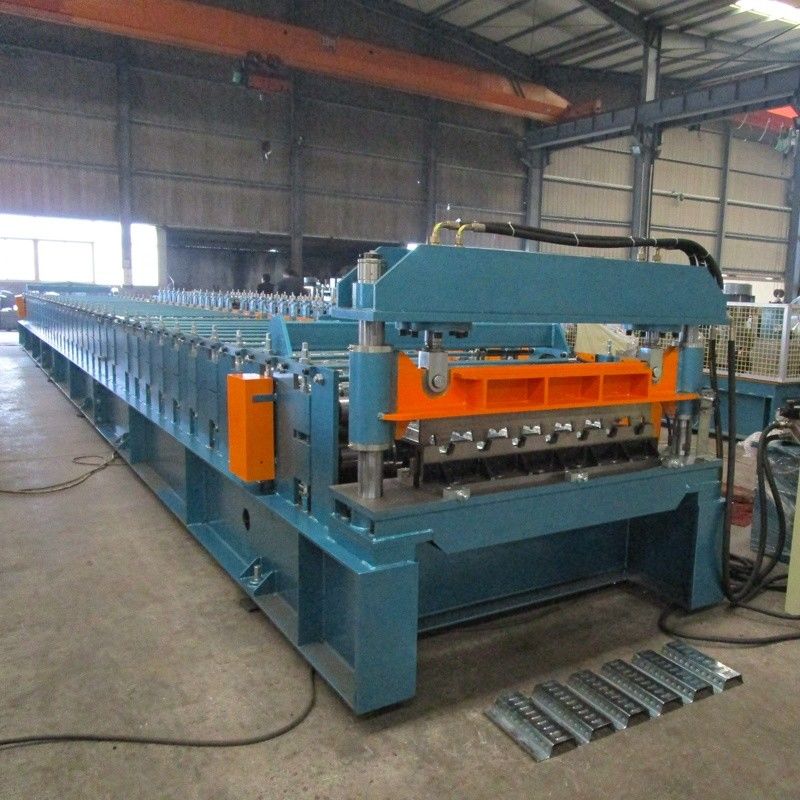

USA Market Popular B Deck Profile Roll Forming Machine With Pressing Dot

The steel floor deck roll forming machine is used to produce high-quality steel floor decks. The steel floor deck is also called floor bearing steel plate. This kind of floor deck is applied in supporting concrete or insulating membrane of a roof. It is developed to provide a structurally efficient product for use in roof and floor systems. The floor has the fllowing features: high peak and high strength with a low cost.

Specification

Item		Specification
Material	Type	Pre-painted steel coil & galvanized coils
	Thickness(mm)	0.8-1.2
	Yield strength(mpa)	235-345
Roller material		45#Chrome steel plate with hard chrome
Forming speed(m/min)		12
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		11x2KW
Total power(kw)		27.5KW

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
