Iron Sheet 0.14-0.3mm Roof Roll Forming Machine Barrel Corrugator

0.14mm roof roll forming machine

barrel corrugated roof roll forming machine

0.3mm corrugated roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lembaran Besi 0,14-0,3mm Barrel Corrugator

Komponen inti:

Kapal Tekanan, Pompa, PLC

Ketebalan:

0,12-0,4 mm

Dimensi (P*L*T):

4800*2300*1600mm

Jaminan:

12 bulan

Voltase:

380v60hz3ph

Ketipisan bergulir:

0.3-0.8mm

Bahan poros:

45# Diameter Luar Baja: 75mm

Menyoroti:

0.14mm roof roll forming machine

barrel corrugated roof roll forming machine

0.3mm corrugated roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

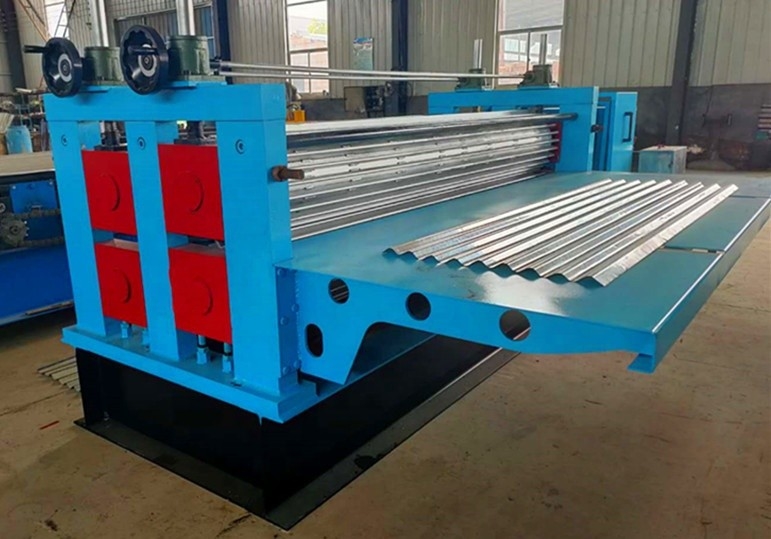

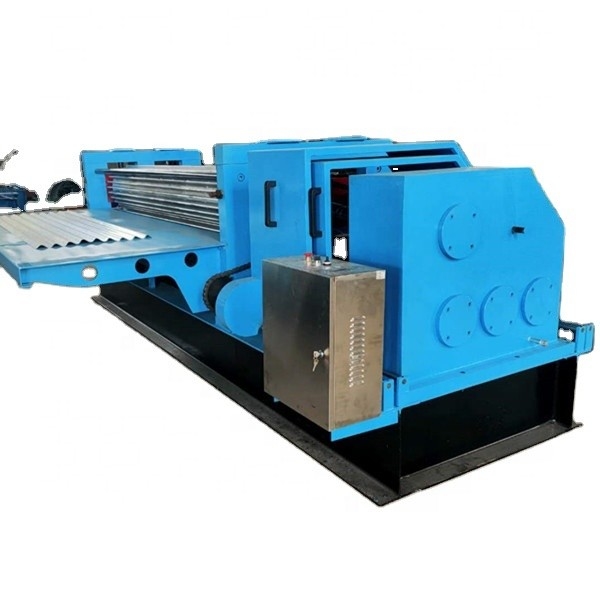

Iron Sheet Roll Forming Machine 0.14-0.3mm Barrel Corrugator

Barrel Corrugated Roll Forming Machine is for thin material from 0.12-0.4mm thinkness. It is very popular in Africa, such as Nigeria, Kenya, South Africa and Senegaln etc.

Parameter

1.Transverse barrel corrugating type.
2.Raw material: thin Galvanized steel sheets, Aluzinc steel sheets etc
3.Sheet width:762mm(2.5 feet),914mm(3 feet),1000mm,1250mm
4.Thickness range:0.1mm to 0.25mm (0.17mm).
5.Sheet Maximum length:4500mm, Thickness: 0.14mm to 0.30mm
6.Pitch:76 mm(+/-1.0mm) or customer(s) required.
7.Depth:18mm(+/-0.5mm) or customer(s) required.
8.Corrugation:large round wave
9.Drive:geared motor 7.5Kw -8kw
10.Forming speed: 9-12 times per min
11.Corrugation roll:barrel length 2500mm-4500mmL.
12.Pitch adjust roll:barrel length 2500mm-4500mmL.
13.Power:380V (50HZ).
14.Capacity: 2-4 Ton per hour

Iron Sheet 0.14-0.3mm Roof Roll Forming Machine Barrel Corrugator 0
