Name: 0.3mm Metal Diverter Downspout Pipe Roll Forming Machine Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Rumah > Produk > mesin roll forming pipa bawah >

0.3mm Metal Diverter Downspout Pipe Roll Forming Machine Automatic

0.3mm downspout pipe roll forming machine

automatic downspout pipe roll forming machine

automatic downspout pipe forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Downspout

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pengalih Downspout Logam Otomatis Untuk Downpipe

Ketipisan bergulir:

0.3-0.8mm

Bingkai:

Baja 350H

Sistem Pengendalian:

Kontrol komputer plc

Cutting Blade Material:

Cr 12 baja bermutu tinggi

Berat:

5kg

Kapasitas Produksi:

12-14m/menit

Voltase:

380V 50Hz 3Phase

Dimensi (P*L*T):

7800*1200*1000mm

Bahan roller:

45 # baja Berlapis Krom

Menyoroti:

0.3mm downspout pipe roll forming machine

automatic downspout pipe roll forming machine

automatic downspout pipe forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mobile Vegetable Planting Trough Forming Machine with Hydraulic Motor 5.5KW and 8-15m/min Production Capacity for Greenhouse Vegetable Cultivation

Dapatkan Harga Terbaik

Portable Gutter Roll Forming Machine with 500mm Feeding Width and 8-15m/min Production Capacity for Various Growing Methods

Dapatkan Harga Terbaik

Mobile Greenhouse Vegetable Planting Trough Forming Machine With Quickly And Efficiently 5.5KW Hydraulic Motor

Dapatkan Harga Terbaik

Portable Greenhouse Planting Trough Forming Machine with Hydraulic Motor 5.5KW 380V/50Hz/3Phase and 45# Steel Shaft

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

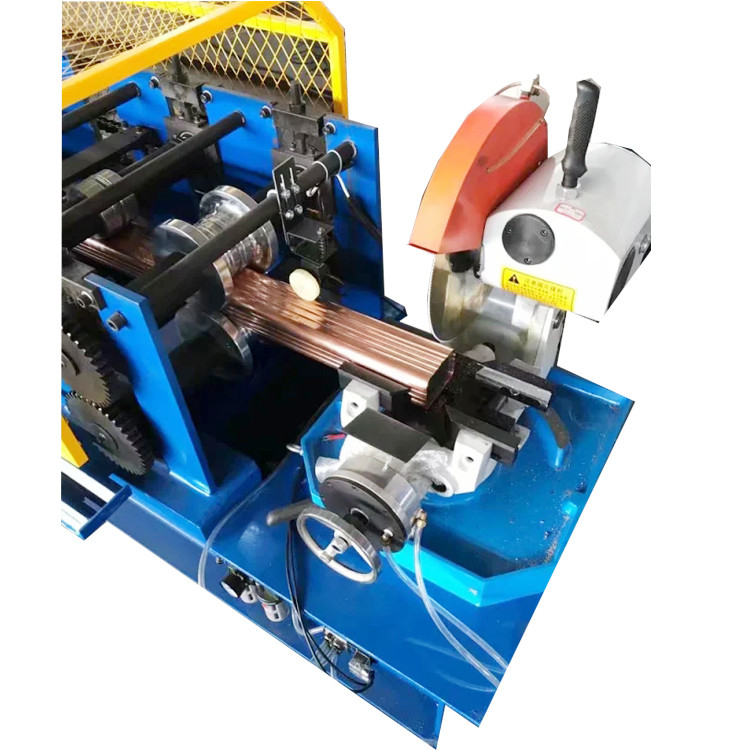

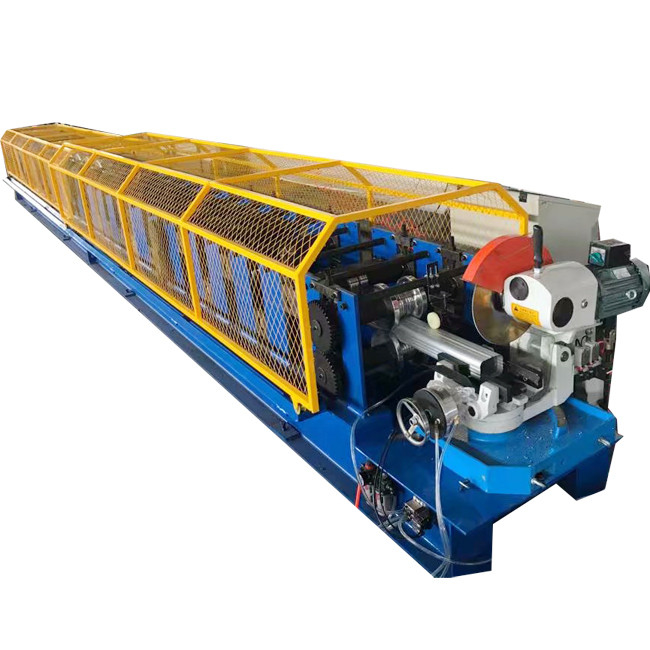

Automatic Metal Downspout Diverter Roll Forming Machine For Downpipe

A downspout is a pipe taht runs vertically along the side of the home,it is connected at the top to a hole in the gutter channel,the other end bends outward and usually sits several inches above the ground.This allows the water to flow away from the homes it exits the pipe.A gutter is a channel installed at or just below the roof line at the edges of the home where the roof slopes downward.It is usually made of vinyl or aluminum or copper also,stainless steel .Around rain gutter has a slight downward pitch toward the corners of the home,encouraging rainwater or snow to flow "downhill" through the gutters and into the downspouts.the whole line include the downpipe roll forming machine and the downpipe bending machine .

Specification

1	Warranty	1 year
2	Dimension	750016001500mm
3	Weight	5.5T
4	Total power	7.5KW
6	Voltage	380V/50HZ/3PH
7	Forming steps	16 steps
8	Forming speed	12-15m/min
9	Material thickness	0.3-1.0mm
10	Tolerance	±1mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
