20m/Min Chaindrive Double Layer Roll Forming Machine 0.3mm Roof Tile Sheet Making

0.3mm roof tile roll former

double layer roll forming machine 0.3mm

chaindrive double layer roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

Lini Produksi Mesin Roll Forming Pembuatan Lembaran Genteng Atap Lapisan Ganda

Kapasitas Produksi:

0-20m/mnt

Nilai jual utama:

Mudah dioperasikan

Bahan roller:

Perawatan pendinginan GCr15,Cr12,SKD11: HRC58-62（opsional）

Sistem Pengendalian:

PLC

Voltase:

380V 50HZ 3PH

Cutting Blade Material:

Kr 12 Bergerak, Dipadamkan

Ketipisan bergulir:

0.3-0.8mm

Jaminan:

2 Tahun

Menyoroti:

0.3mm roof tile roll former

double layer roll forming machine 0.3mm

chaindrive double layer roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

35 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

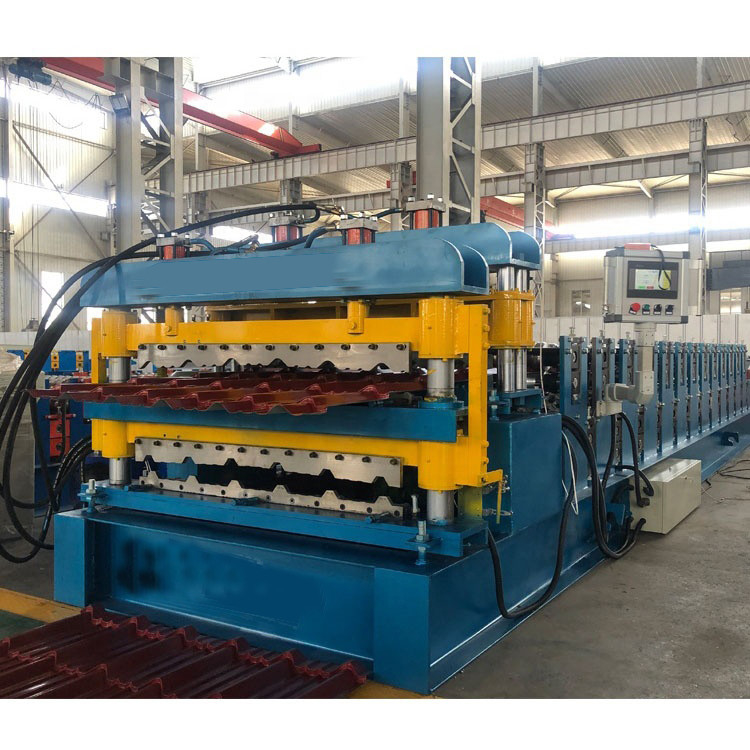

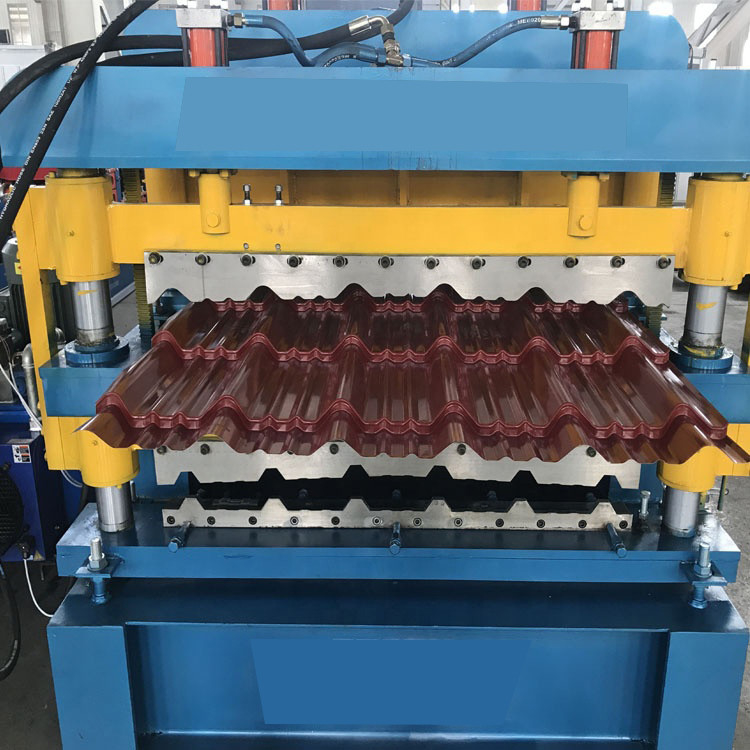

Double Layer Roofing Tile Sheet Making Roll Forming Machine Production Line

Double layer metal tile/panel roll forming machine can produce two different kinds of tile/panel with one machine,you can choose any two kinds of roofing tile/panel ,it can save a lot of room and money.metal roof tile/panel is widely used in constructions and buildings,it can be uesd to build roof and wall.This kind of material can be used in many places such as gyms,warehouses,factories,etc.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	roller material	45# steel plated with chrome
3	Rows of rollers	15 rows & 16 rows
4	Way of drive	chaindrive,Gearbox drive(optional)
5	Product automatic stacker	6m length
6	Feeding width	1220mm
7	Production Capacity	12 m/min
8	Rolling thinckness	0.3-0.8m
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	main motor power	5.5kw
12	hydraulic station power	4kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
