Name: High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Tutup Punggung Bukit
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine

galvalume ridge cap roll forming machine

0.3mm ridge cap roll forming machine

high speed ridge cap machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Tutup Punggung Bukit

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Cap Roll Top Ridge Berkecepatan Tinggi Afrika Selatan

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Sistem kontrol:

PLC

Ketebalan:

0.3-0.8mm

Jenis ubin:

Tutup Punggung Bukit

Kapasitas Produksi:

20-25m/mnt

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

4KW

Voltase:

380v50Hz3Fase

Komponen inti:

Motor, Pompa, PLC

Menyoroti:

galvalume ridge cap roll forming machine

0.3mm ridge cap roll forming machine

high speed ridge cap machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

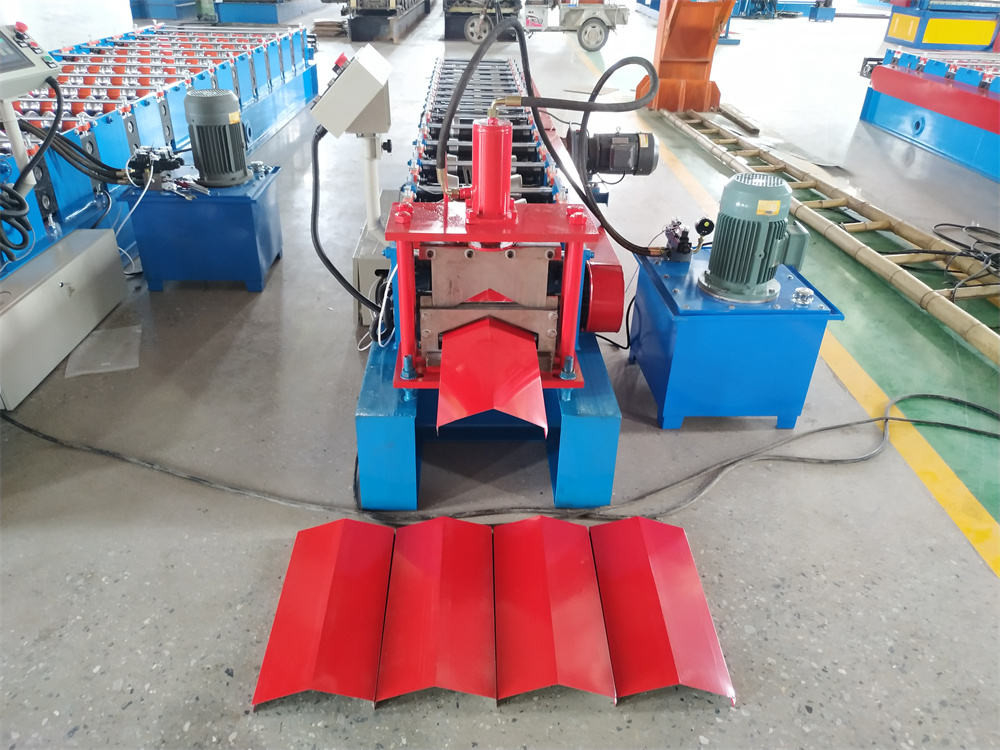

High Speed Roll Top Ridge Cap Roll Forming Machine South Africa

Is designed to produce ridge cap tile used on roof, this machine is very easy to install, low noise and high efficiency.

The ridge tile forming equipment adopts roller forming technology and is used for hydraulic forming with a die. Products are widely used in the roof connection of building color steel plates. This machine can be customized according to customer requirements.The ridge tile forming machine can be produced continuously like other roll forming machines, replacing the tedious process of making ridge tiles with a bending machine, saving human resources and greatly reducing labor costs.

Specification

Article No.	Item Name	Specification
1	Processing material	Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
2	Processing thickness (mm)	0.3-0.8mm
3	Material of rollers	High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
4	Material of shafts	45# steel
5	Diameter of shafts	70mm or as your customized
6	Forming speed	20-25 m/min
7	Under frame	300 H-beam
8	Sidewall	16mm
9	Connect bar	25mm, zinc plated
10	Forming steps	11rollers
11	Control system	Delta PLC and Inverter
12	Suitable power	380V, 50 Hz, 3 phase or according to your need
13	Drive mode	Chain and sprocket, chain size 1 inch
14	Main motor	4w
15	Hydraulic pump station	4w
16	Cutting model	Hydraulic profile cutting
17	Dimension of the machine	6m×0.6mm×1.0m
18	Weight of the machine	2.5tons

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

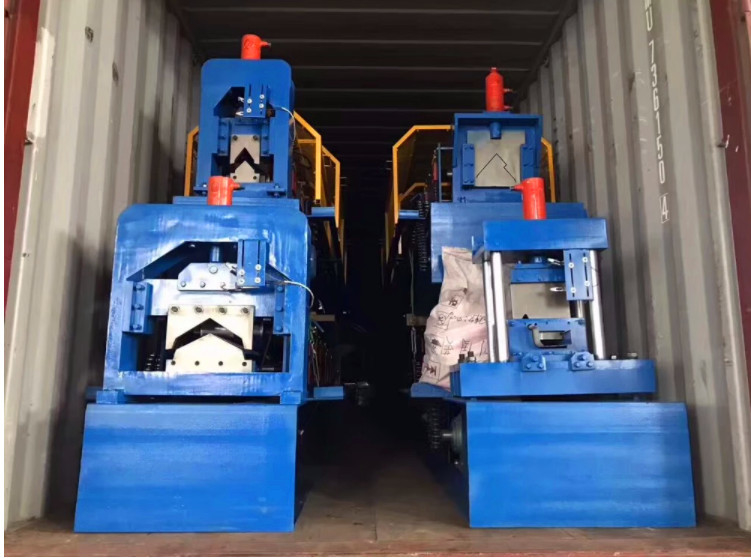

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
